Emerson NetSure 501 AA0 User Manual

Appendix 2 Wiring Diagram 113
To 1-PL busbar
for L+N+PE/230V AC input
AC INPUT
To user PE
Note:
The wiring in the dashed square means the load alarm routes can be expanded to 10.
Rear view
Rectifier subrack1
Load alarm signal connection
MFU
PE
Monitoring backboard
Back view
of the monitoring backboard
for M501D

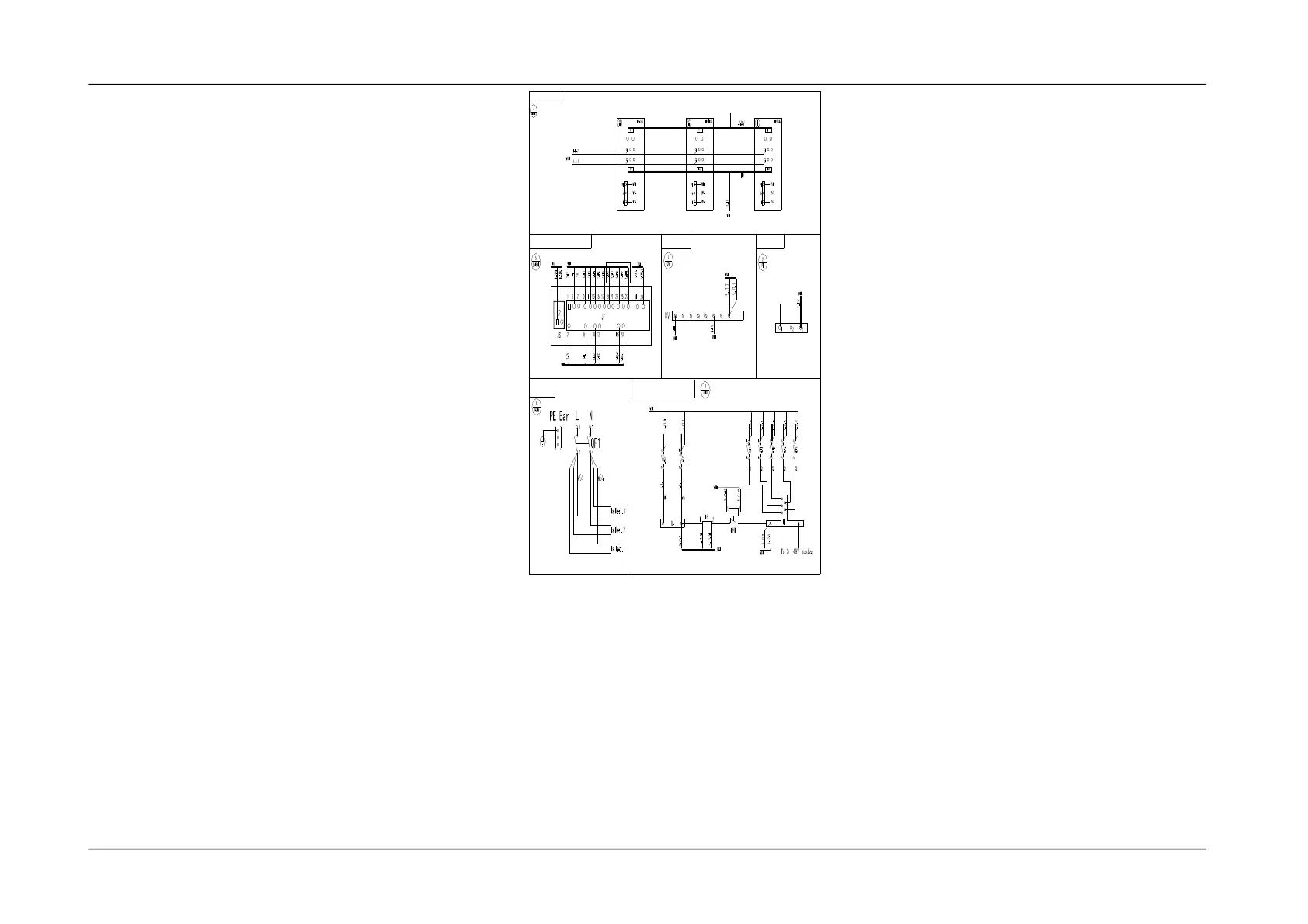

Figure 3 NetSure 701 A51 (PS48300-3A/3200-X2) wiring diagram
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
