54 Chapter 5 Use Of Monitoring Module M800D
Data browse, control and parameter setting of SMDU Group

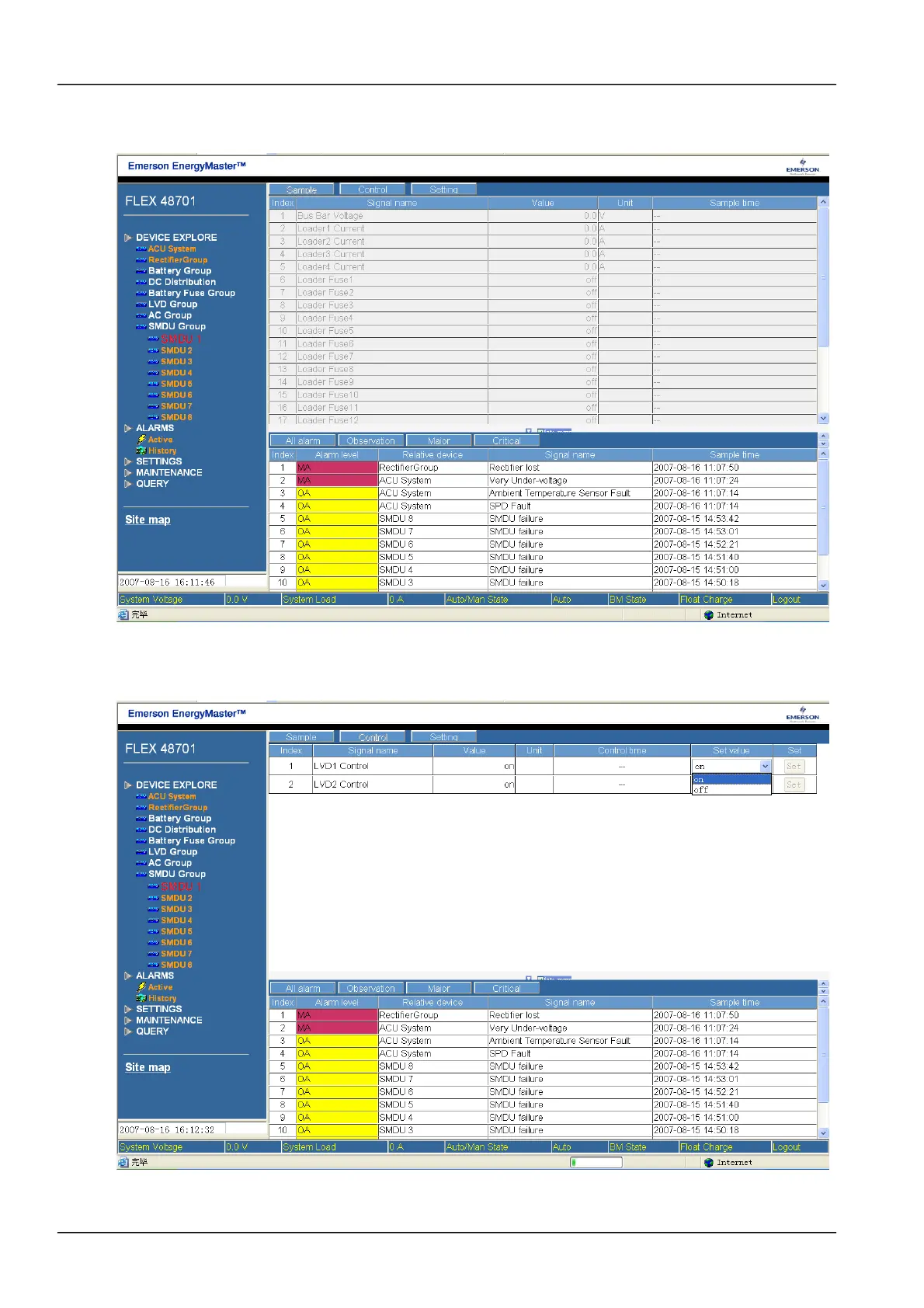

Click the menu of SMDU Group and then the submenu of SMDU1, following screen shows up:
Figure 1.11 Data of SMDU1
Click the “Control” button to perform LVD control, for example, the user can set “LVD1 control” to “on” or “off” as
shown in the following Figure:
Figure 1.12 LVD control
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
