56 Chapter 5 Use Of Monitoring Module M800D

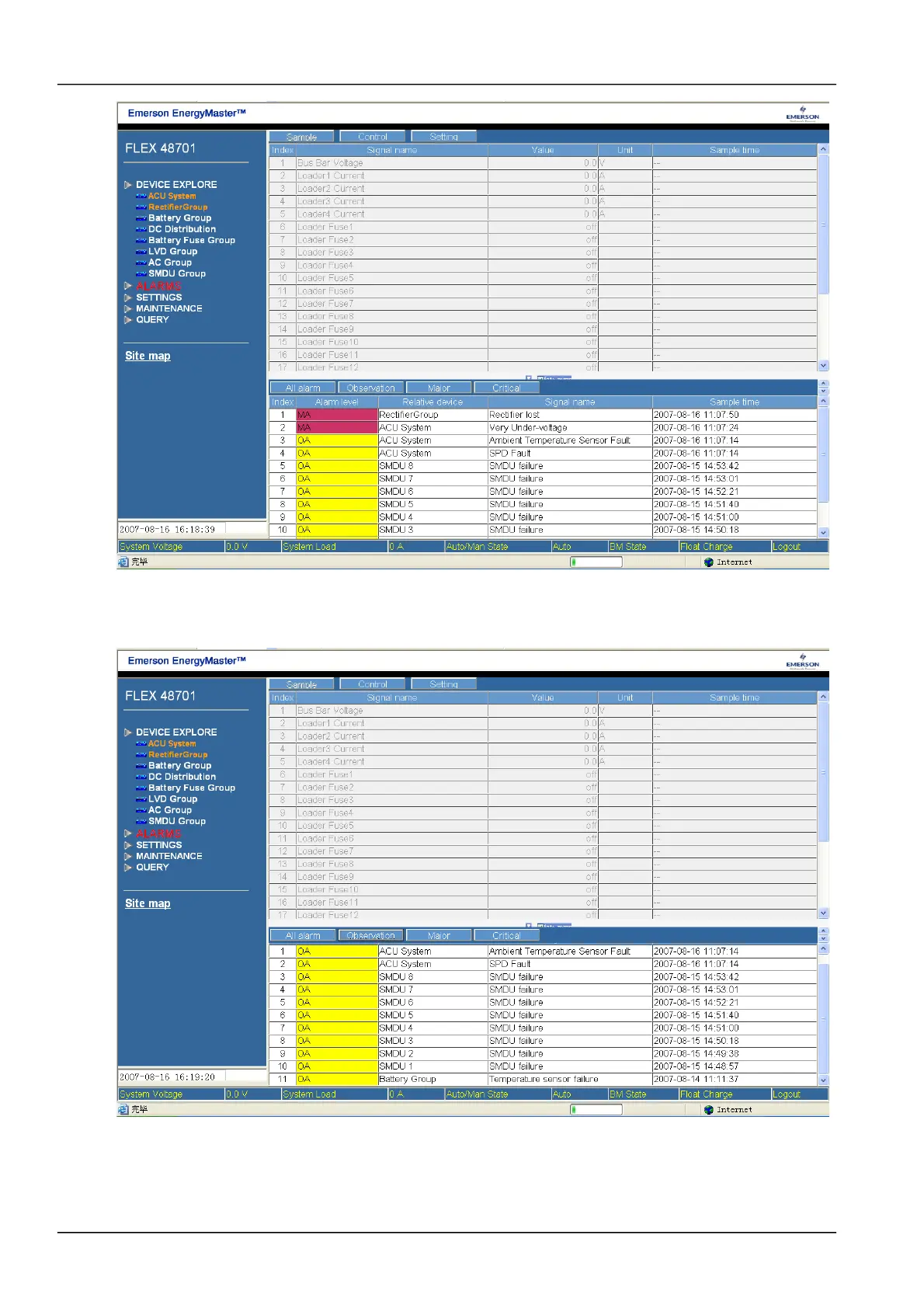

Figure 1.1 Alarm screen
The screen shown in Figure 4-19 shows all the alarms. Click the button “Observation”, all the observation alarms will
be displayed:
Figure 1.2 Observation alarm
In the same way, click “Major” to display all the major alarms and click “Critical” to display all the critical alarms. The
observation alarm is displayed in yellow color. The major alarm is displayed in pink color and the critical alarm is
displayed in red color.
