Emerson QuickPanel+ IC755C S12CD Series Quick Start Guide

Quick Start Guide Section 4
GFK-2893P Sep 2019
Mounting & Installation 23
Note: Panel cutout tolerances are +0.50, -0.00 mm (+0.02, -
0.00 in).

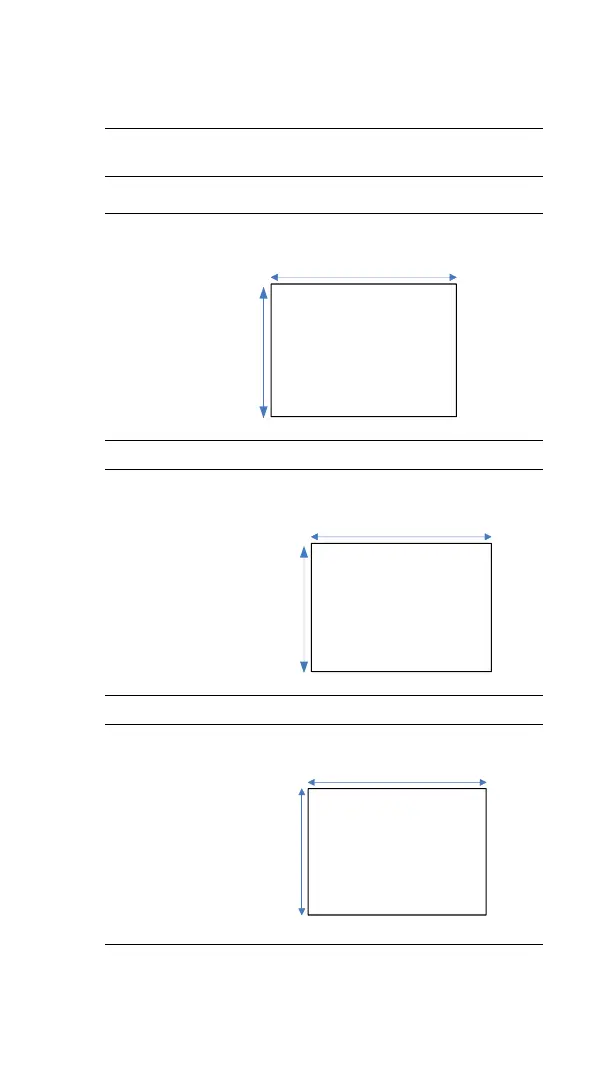

Figure 4.7: IC755CxS06RDx Panel Cutout Dimensions
Panel Thickness:
1.0 to 5.0 mm
(0.04 to 0.20 in)
128.50 mm (5.06 in)
183.50 mm (7.22 in)
Figure 4.8: IC755CxW07CDx Panel Cutout Dimensions
Panel Thickness:
1.0 to 5.0 mm
(0.04 to 0.20 in)
128.50 mm (5.06 in)
183.50 mm (7.22 in)
Figure 4.9: IC755CxS10CDx Panel Cutout Dimensions
Panel Thickness:
1.6 to 5.0 mm
(0.06 to 0.20 in)
266 mm (10.47 in)
210 mm (8.27 in)
