Emerson QuickPanel+ IC755C S12CD Series Quick Start Guide

Quick Start Guide Section 4
GFK-2893P Sep 2019
Mounting & Installation 24

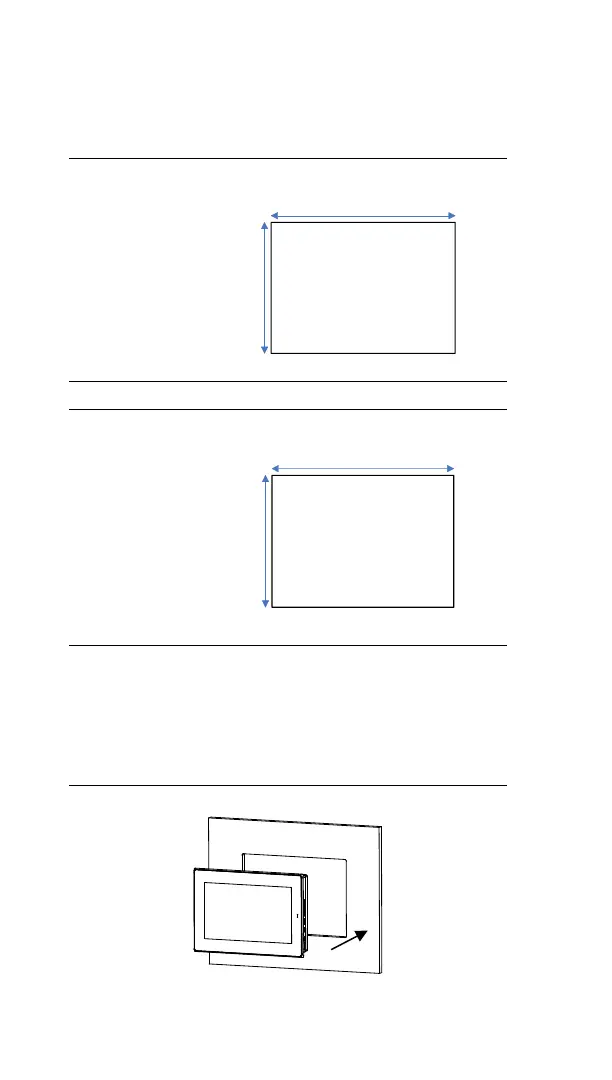

Figure 4.10: IC755CxS12CDx Panel Cutout Dimensions
Panel Thickness:
1.6 to 5.0 mm
(0.06 to 0.20 in)
228 mm (8.98 in)
302 mm (11.89 in)
Figure 4.11: IC755CxS15CDx Panel Cutout Dimensions
Panel Thickness:
1.6 to 5.0 mm
(0.06 to 0.20 in)
379 mm (14.92 in)
305 mm (12.01 in)
2. Verify that the gasket is present and properly
seated in the bezel channel located on the sides of
the unit.
3. Insert the Quick Panel
+
into the mounting panel
cutout.
Figure 4.12: Cutout for Quick Panel
