3 Mount the transmitter
Mount directly to the impulse line without using an additional mounting
bracket or mount directly to a wall, panel, or two-inch pipe using an optional
mounting bracket.

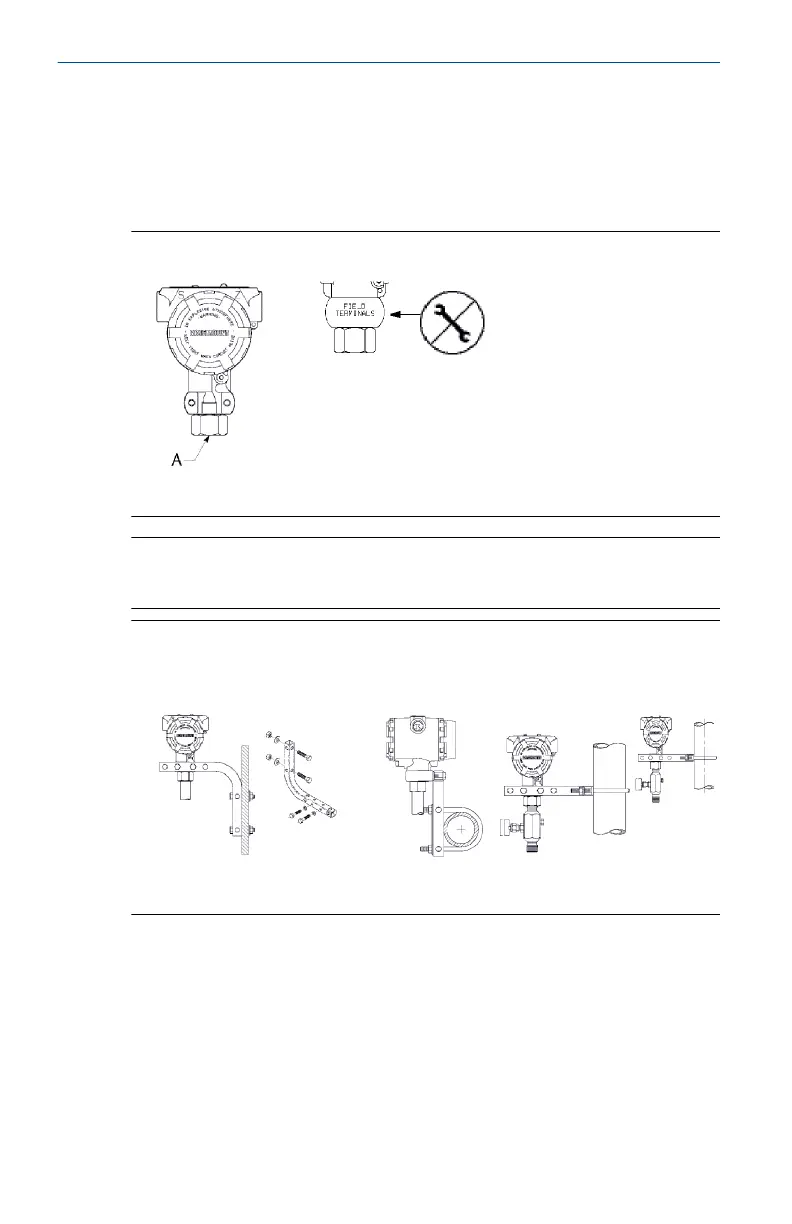

Figure 3-1: Transmitter Direct Mounting
A. Process connection
Note
Do not apply torque directly to the electronics housing. To avoid damage,
apply torque only to the hex-shaped process connection.
Figure 3-2: Panel and Pipe Mounting
Panel mount
Pipe mount
3.1 Liquid flow applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent valves are oriented upward.
