Emerson Rosemount 8705 - Step 1: Sensor Handling Procedures

Quick Installation Guide
00825-0100-4727, Rev CC
January 2013
Rosemount 8700 Series
3
STEP 1: HANDLING
Handle all parts carefully to prevent damage. Whenever possible, transport the system to
the installation site in the original shipping containers. PTFE-lined sensors are shipped with
end covers that protect it from both mechanical damage and normal unrestrained distortion.
Remove the end covers just before installation.

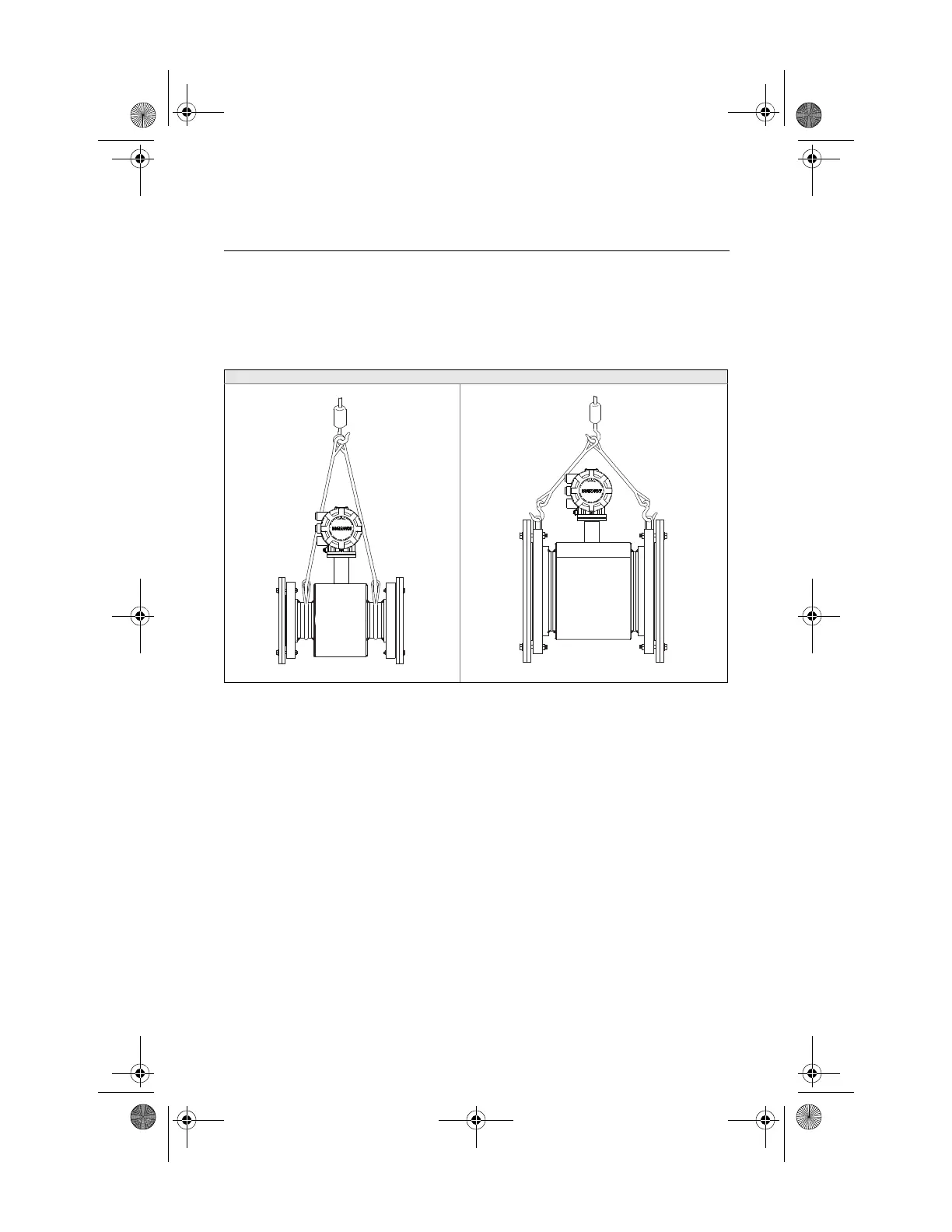

Figure 1. Rosemount 8705 Sensor Support for Handling
½- through 4-in. Sensors
6-in. and Larger Sensors
