Quick Installation Guide
00825-0100-4727, Rev CC
January 2013
Rosemount 8700 Series
5
Sensor Location
The sensor should be installed in a location that ensures the sensor remains full during
operation. Vertical installation allows upward process fluid flow and keeps the
cross-sectional area full, regardless of flow rate. Horizontal installation should be restricted
to low piping sections that are normally full.
Sensor Orientation
The electrodes in the sensor are properly orientated when the two measurement electrodes
are in the 3 and 9 o’clock positions or within 45° from the vertical, as shown on the right of
Figure 4. Avoid any mounting orientation that positions the top of the sensor at 90° from the
vertical position as shown on the left of Figure 4.

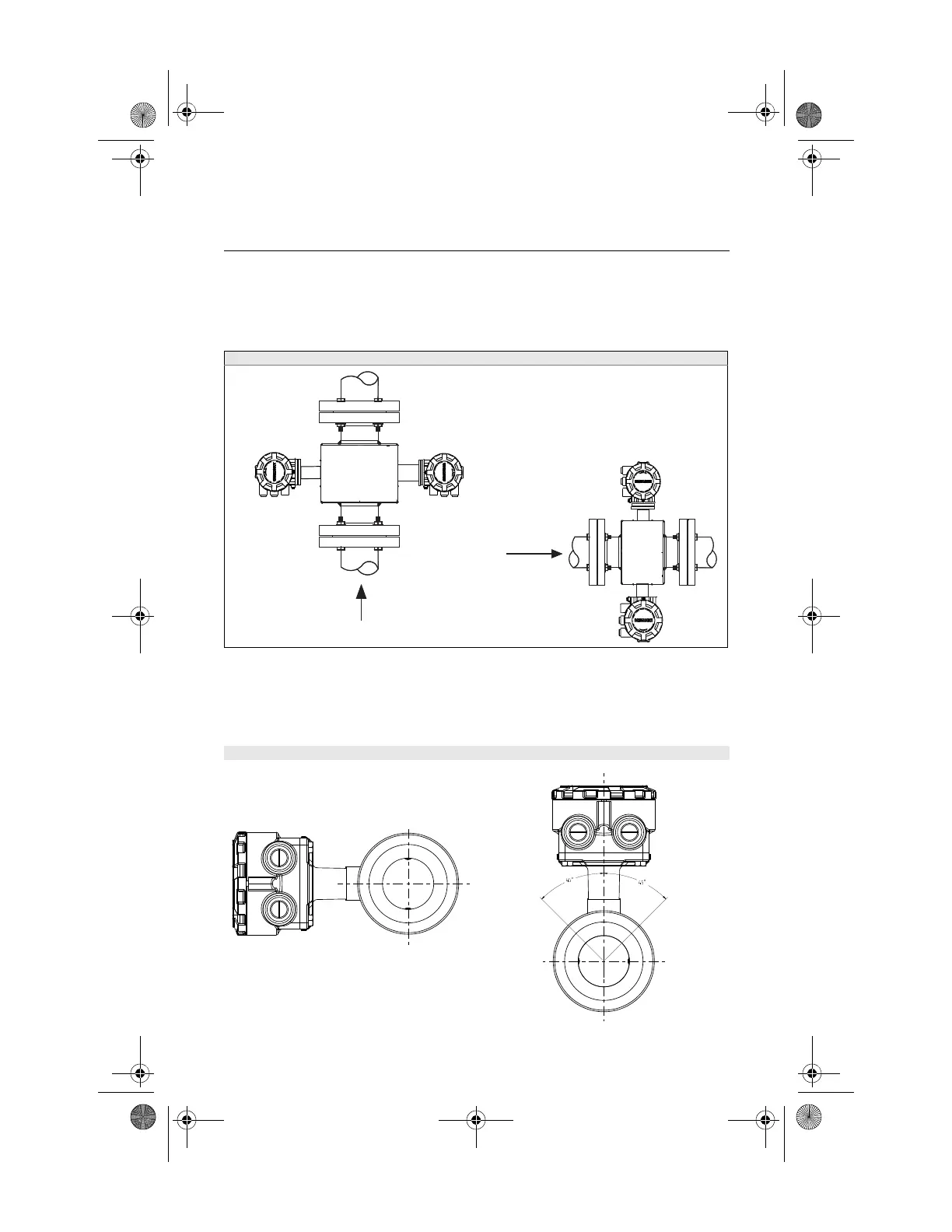

Figure 3. Sensor Orientation
Figure 4. Mounting Position
Correct
Incorrect
