February 2018
6
Quick Start Guide
Step 3: Turn on device
Check to ensure the device and battery are working properly.

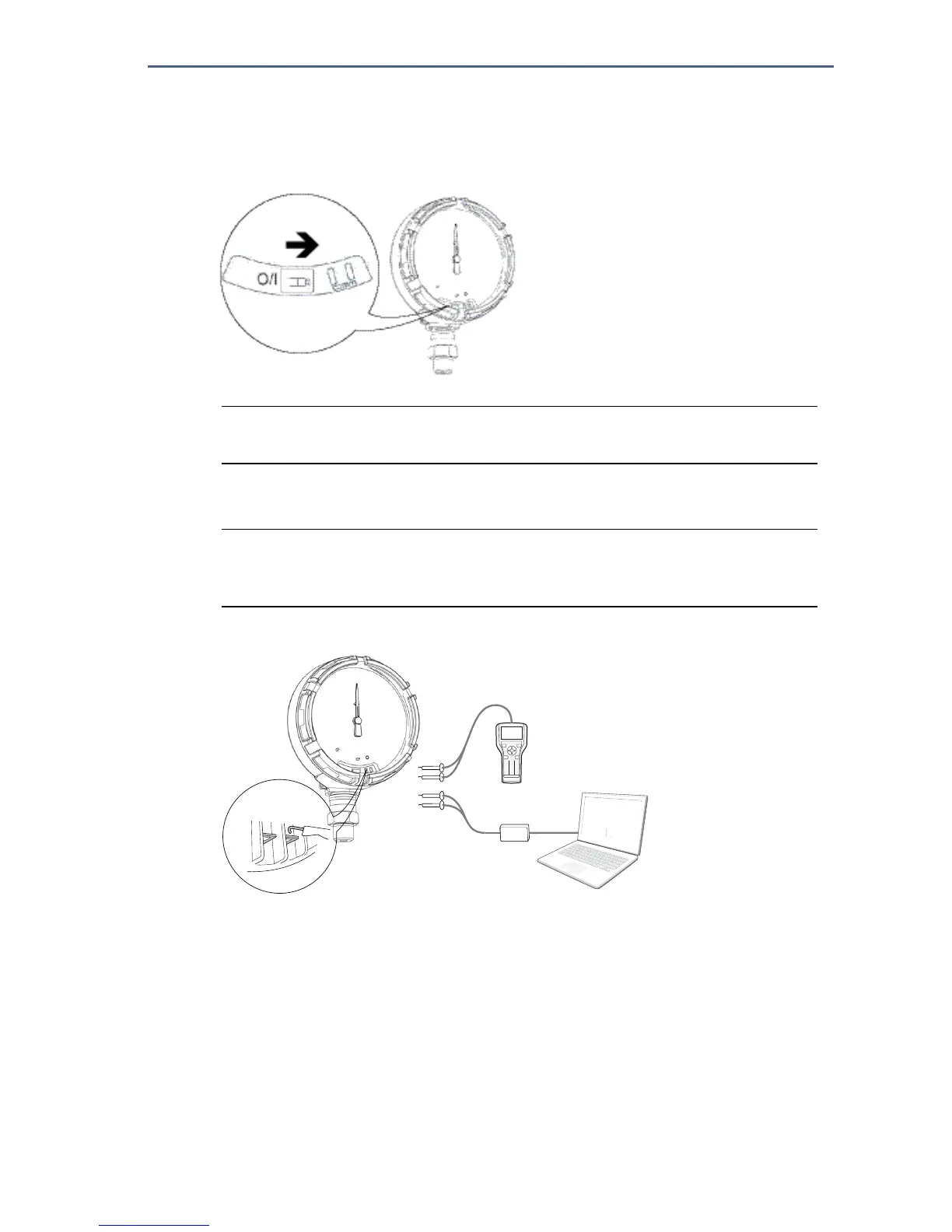

1. Twist the cover counterclockwise to remove it.
2. Slide the OFF/ON switch to the ON position to initiate the power sequence.
Note
During the power sequence, the dial tests full range of motion and LED flashes amber.
3. Once the power sequence ends, verify the LED flashes green.
Note
The LED may display several colors; see Figure 1 in “Troubleshooting” on page 7 for
device statuses.
Step 4: Connect to device
Field Communicator
1. Turn on the Field Communicator.
2. From the Main menu, select the HART symbol.
AMS Configurator
1. Start AMS Configurator.
2. From the View menu, select Device Connection View.
3. Double click the device under the HART modem.
A. Field Communicator B. HART
®
Modem C. AMS Configurator
123
645
87
0
9
A
B
C
