Quick Start Guide
5
February 2018

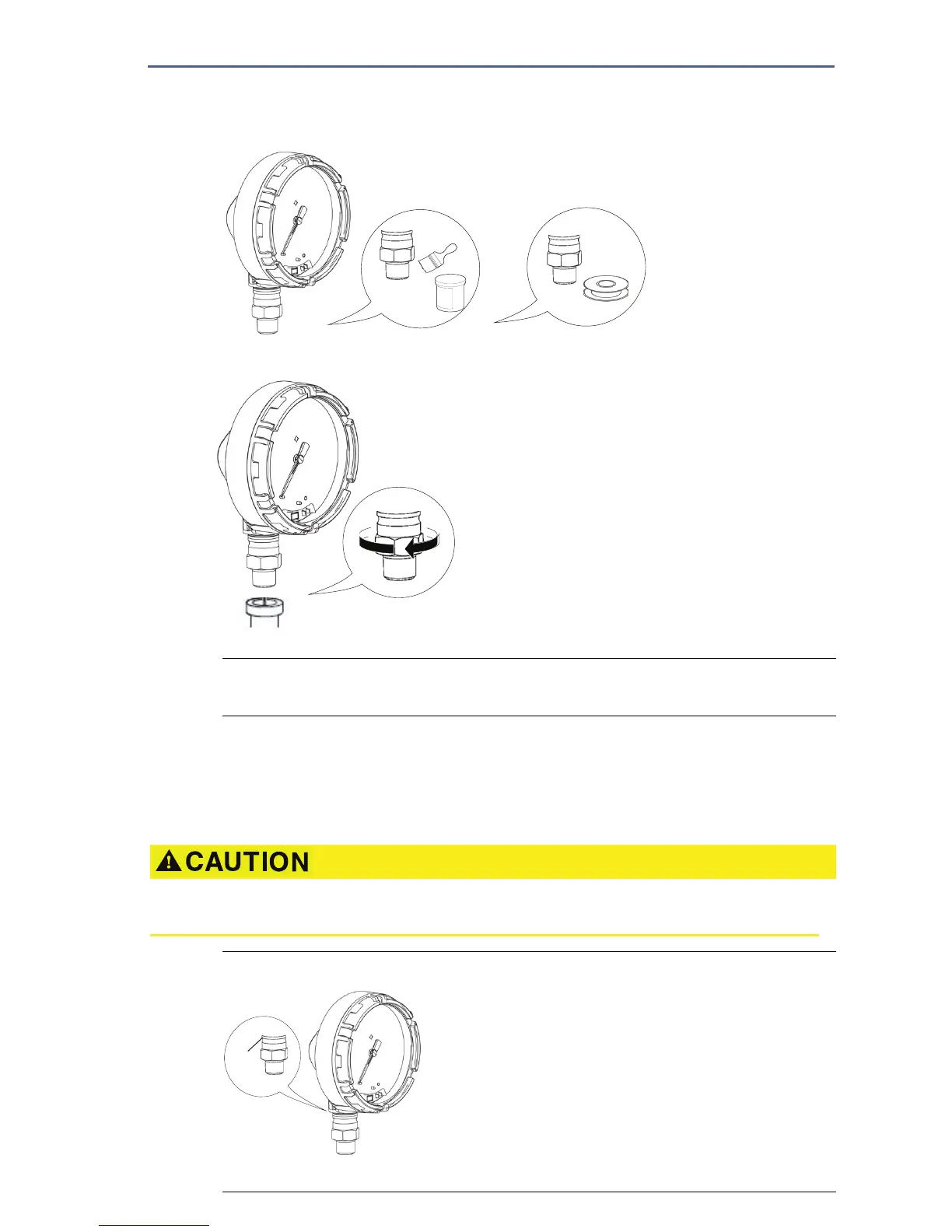

3.0 Installation Procedure
Step 1: Seal and protect threads
Step 2: Mount device
Note
Use wrench on flats, not on housing.
Mounting orientation
The low side pressure port (atmospheric reference) is located in the neck of the
device behind the housing. The vent path is between the housing and sensor
(see Figure 1).
Figure 1. Low Side Pressure Port
A. Low side pressure port (atmospheric reference)
Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by
mounting the device so the process can drain away.
OR
A
