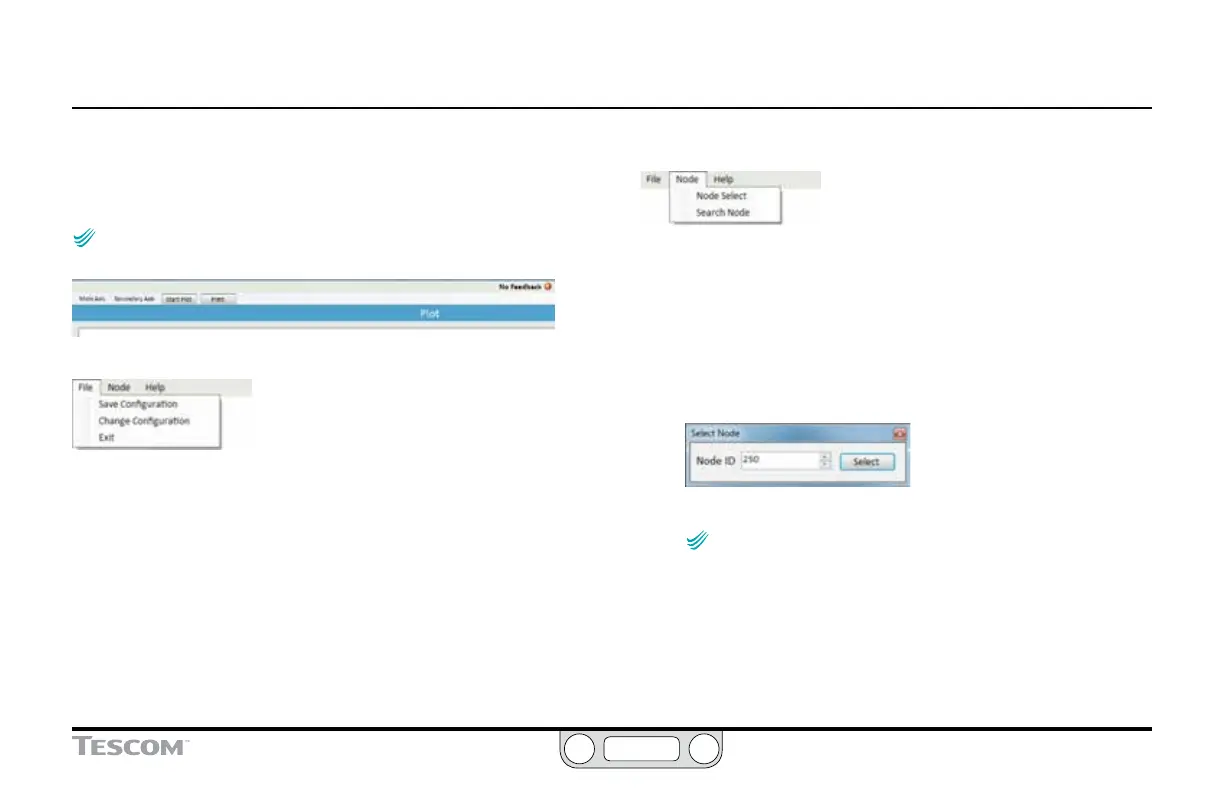

The ERTune™ Program: Basic Features
Navigating the ERTune™ User Interface
The Menu Bar
The menu bar displays three menu items on the left.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
If the ER5000 does not detect a feedback signal, a warning will
display on the right side of the menu bar.
The File Menu
The File menu has three commands.
Save Configuration
This command saves the current tuning conguration to a text
le. The le can be saved anywhere on your computer or network
and uses the .tun le extension.
Change Configuration
This command loads a saved conguration (.tun) le into the
ERTune™ program and downloads the tuning conguration to the
ER5000.
Exit
This command exits the program.
The Node Menu
The Node menu has two commands.
Node Select
This command opens the Select Node window, which allows you
to select between ER5000s when you have multiple controllers in
the same network.
To switch between controllers based on Node Address
1. Select Node -> Node Select. The Select Node window opens.
2. Enter the Node Address of the controller you wish to access.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
Individual controllers connected via USB should be at the
default Node Address of 250, unless this was changed during setup.
If you have multiple controllers in an RS485 network and are not
sure of the Node Address for each controller, refer to the Search
Node command on the next page.
3. Click Select. The ERTune™ program begins communicating
with the controller at that Node Address and displays the
controller’s conguration information.
