The ERTune™ Program: Basic Features
Search Node
This command opens the Search Nodes window. The ERTune™
program searches through all 250 Node Addresses and generates
a list of active nodes.
To select a controller from the list of active nodes
1. Select Node -> Search Node. The Search Nodes window opens.

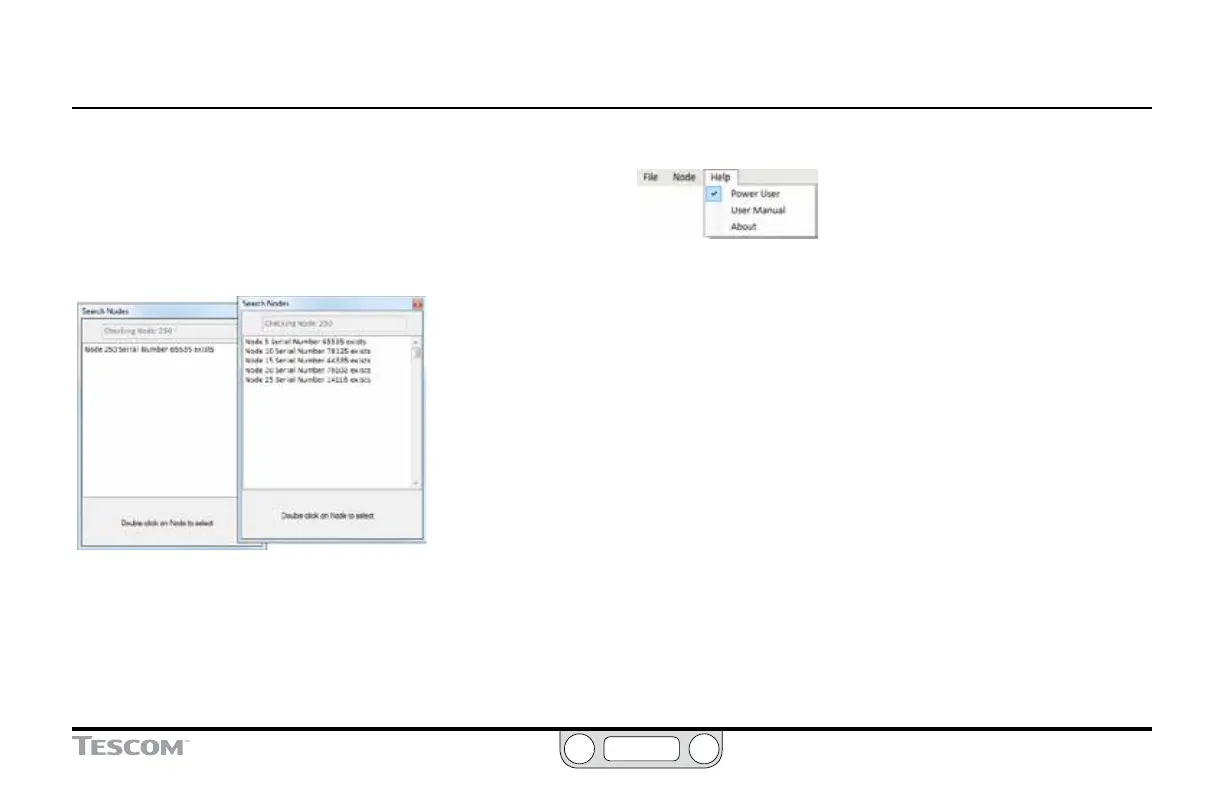

Figure 46:
Search Nodes
windows for
single controller
and for multiple
controllers in an
RS485 network.
2. The ERTune™ program searches all Node Addresses and
returns a list of all Addresses that are active.
3. Double-click a Node Address from the generated list to
select it. The ERTune™ program will begin communicating
with the controller at that Node Address and will display its
conguration information.
The Help Menu
The Help Menu has three commands.
Power User
This command toggles the display of The Power User Tab on and
off. The Power User Tab gives you access to advanced conguration
options. Most applications of the ER5000 do not require access to
this tab.
To display the Power User Tab
1. Select Help -> Power User. The Power User Tab appears to the
right of the Diagnostic Tools Tab.
2. Click the Power Users Tab to make it active.
User Manual
This command opens the onscreen version of the User Manual.
About
This command opens the About ERTune™ window, which displays
the version number for the software.
