ER5000 —
136
The ERTune™ Program: Basic Features

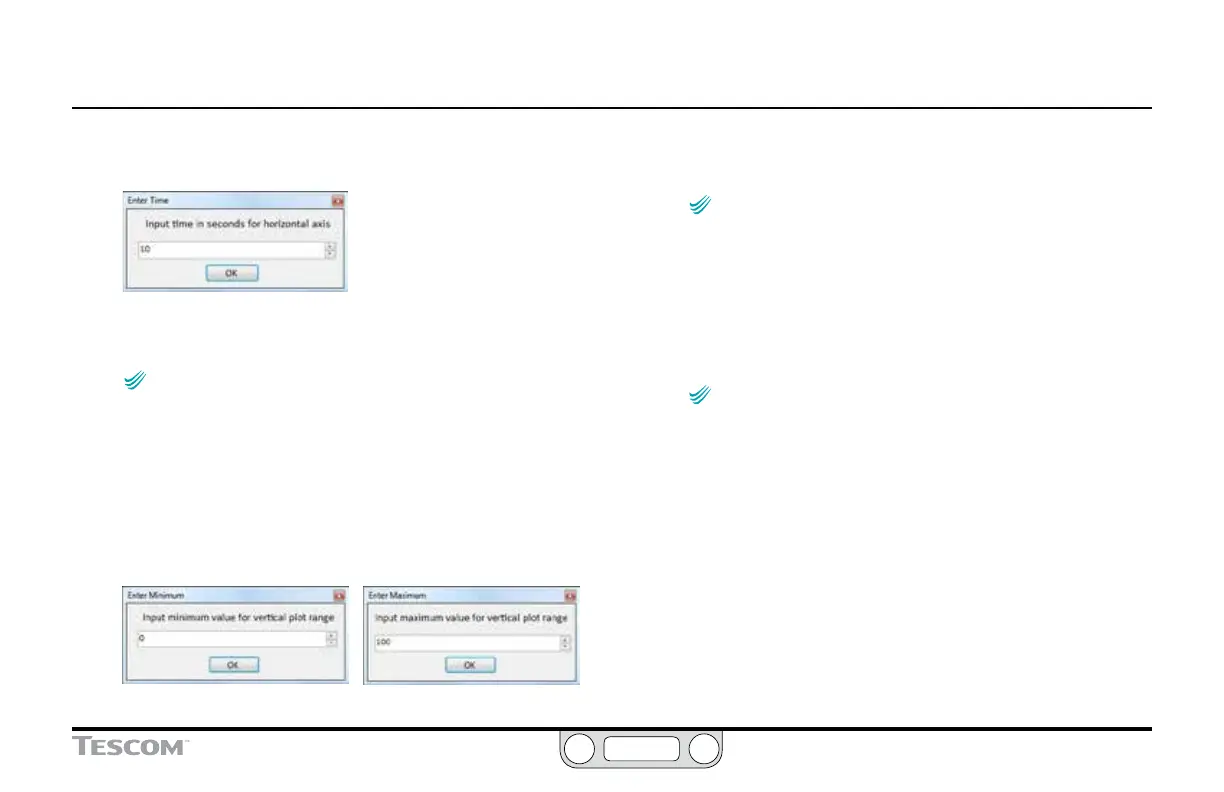

To change the horizontal axis using the Main Axis Menu
1. Select Main Axis -> Time. The Enter Time window opens.
2. Enter the number of seconds for one cycle of the Plot Screen.
3. Click OK. The Plot Screen rescales to the new cycle time.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
If you change the cycle time of the horizontal axis, you
must use the Time command again if you wish to reset the axis to
its original cycle time.
To change the main (left) vertical axis using the Main Axis Menu
1. Select Main Axis -> Minimum Vertical to change the minimum
value for the main axis display.
Select Main Axis -> Maximum Vertical to change the maximum
value for the main axis display.
2. Enter a new value.
3. Click OK. The display rescales using the new value.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
Repeat these steps for both menu items if you wish to set
new values for both the minimum and maximum of the display.
To reset the main (left) vertical axis to its original values using the
Main Axis Menu
1. Select Main Axis -> Rescale Vertical.
2. The main vertical axis of the Plot Screen returns to its original
display range.
If you double-click in the Plot Screen after
changing the vertical axis using the menu commands, the display
will revert to its toggle between the original 0% to 100% range
and -20% to 120% range and you will lose the values you set using
the commands.
