The ERTune™ Program: Basic Features
3. Continue to increase the Derivative term until you have
stabilized the response.

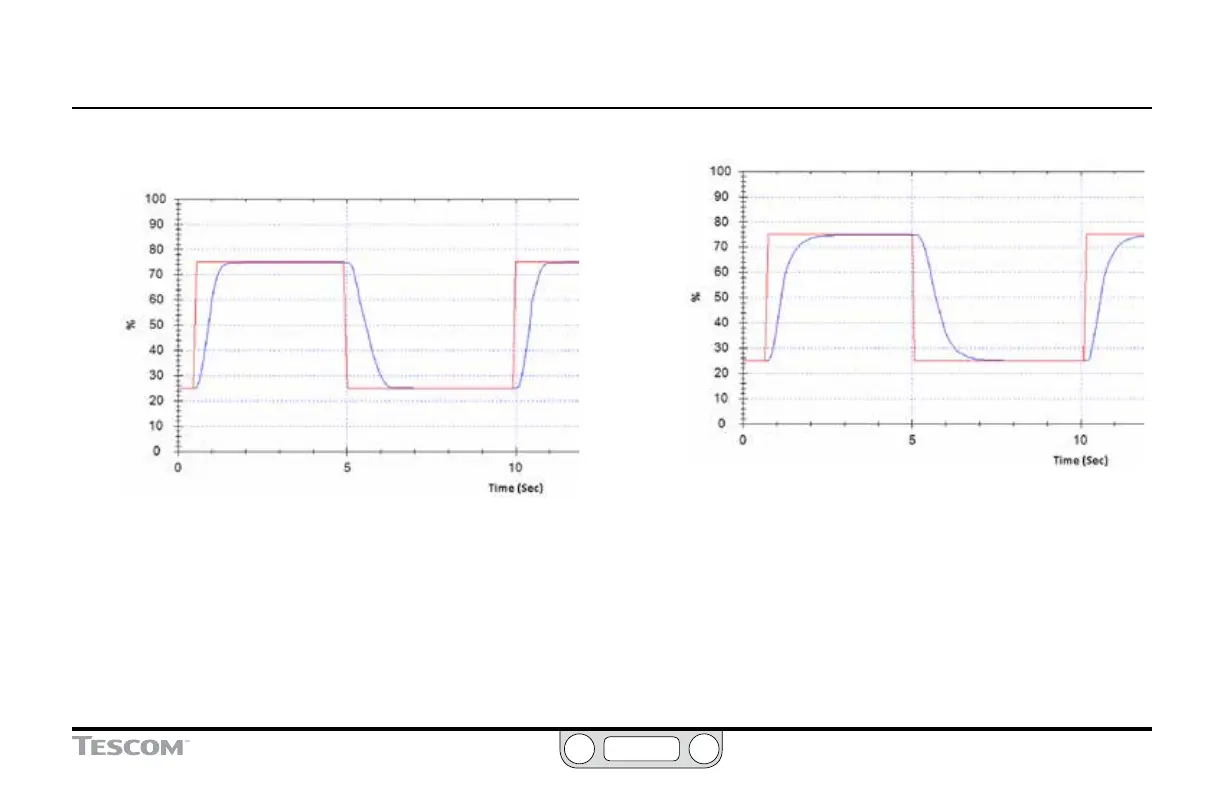

Figure 55: Typical Tuning: Critically Damped
Response is now both quick and stable.
4. Repeat the process until you note the effects of overdamping.
Figure 56: Typical Tuning: Overdamped Response
A Derivative setting that is too high results in a slower rise time.
5. Step back the Derivative slider or enter a smaller number in
the eld, until instability reaches unacceptable levels.
