The ERTune™ Program: Basic Features
The Profile Tab: Creating Multi-Step Command
Sequences
Proles are multi-step command sequences for the ER5000. They
require no previous programming experience on the part of the
user to create and guide the ER5000 through everything from a
simple start/stop operation to a sequence of setpoint changes
that can include up to one hundred command lines and control
loops that can run indenitely.

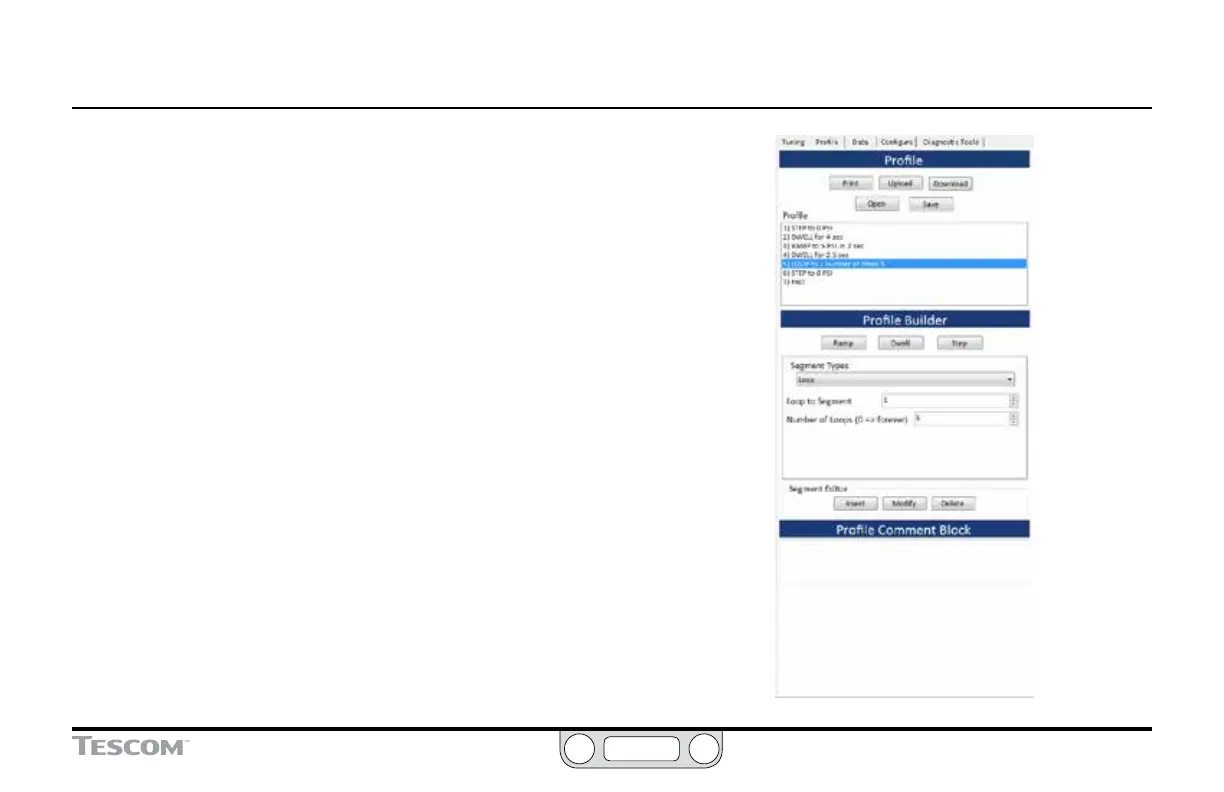

The Prole Builder Panel in the Prole Tab provides a simple,
intuitive interface for creating and editing Proles. Proles are
built one command line (called a segment) at a time. Commands
are chosen from a drop-down list; the three most commonly-used
commands (Ramp, Dwell and Step) can also be quickly selected
by clicking a button. Parameters for each command are set using
simple text entry elds and select lists.
Completed Proles are downloaded to the control board of the
ER5000. They can also be saved to external text les for future use.
Proles can be uploaded from the ER5000 or opened from the
PC in the ERTune™ program and used as the setpoint source for
tuning the controller.
