The ERTune™ Program: Basic Features

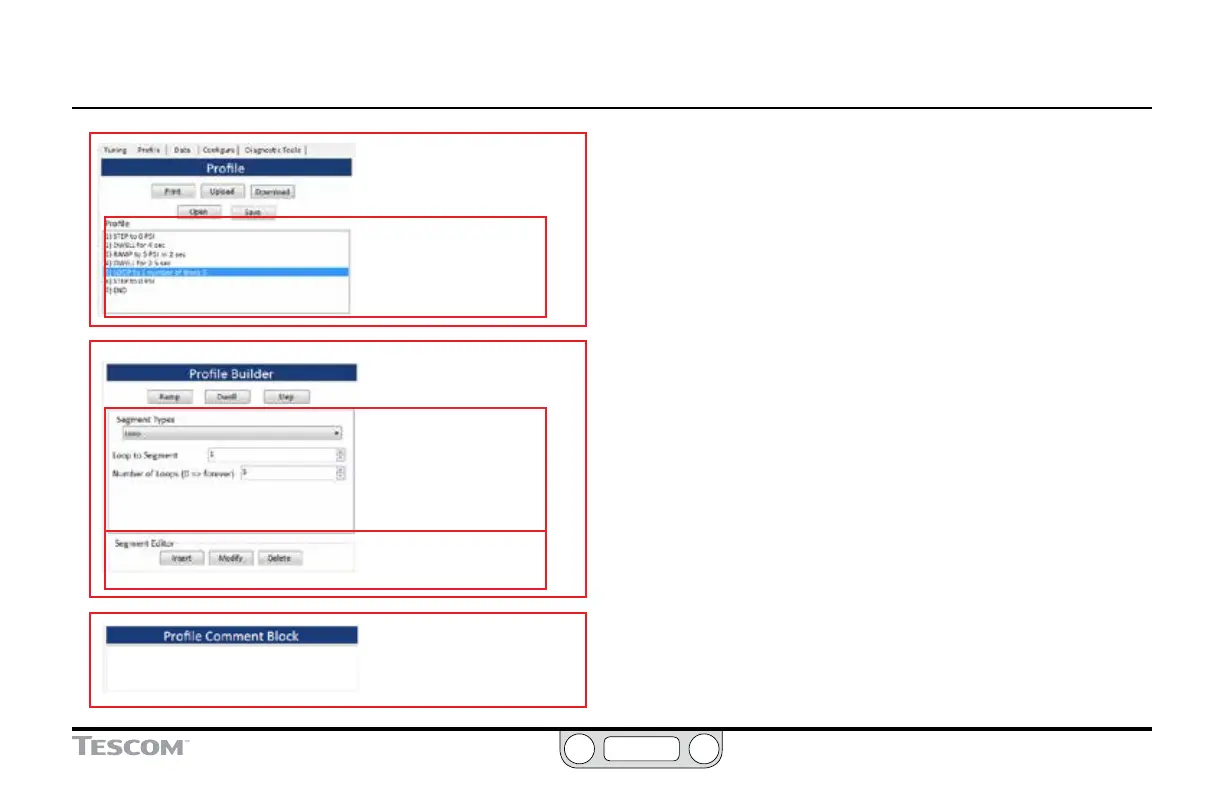

The Panels and Windows of the Profile Tab
The Profile Panel has buttons for printing the current Prole,
uploading from or downloading to the ER5000 and opening from
or saving to the PC. The Profile Window displays the command
lines (segments) of the Prole. Selecting a segment in the Prole
Window opens it for editing in the Prole Builder Panel.
The Profile Builder Panel has a drop-down select list of
commands, as well as three “hot” buttons to quickly select
the three most commonly-used commands. Parameters
for each command are displayed and edited in the
Segment Types Window and the segment can be inserted
into the Prole, modied or deleted using buttons in the
Segment Editor Window.
The Profile Comment Block Panel allows you to add a comment
which is included as part of the Prole when it is downloaded
or saved.
Profile Builder
Holds “hot buttons” to select
commands, as well as the
Segment Types Window.
Profile Panel
Holds buttons for printing,
uploading and saving, as well as
the Profile Window.
Profile Window
Displays the command lines
(segments) of the Prole in
sequence. Click a command to
select it for modication. Scroll
bars appear when a Prole is
longer than 10 segments.
Segment Types Window
When a command is selected
from the “hot buttons” or the
drop-down list, the parameters
appear here for modication.
Click the Modify button in the
Segment Editor to update the
Prole.
Segment Editor
Holds buttons to insert,
update or delete segments.
Profile Comment Block
You can add one comment to a
Prole. Press the Tab key when
you are done so the comment
will the saved and downloaded
with the Prole.
