ER5000 —
167
The ERTune™ Program: Basic Features
Additional Commands Available for “F” Model ER5000s

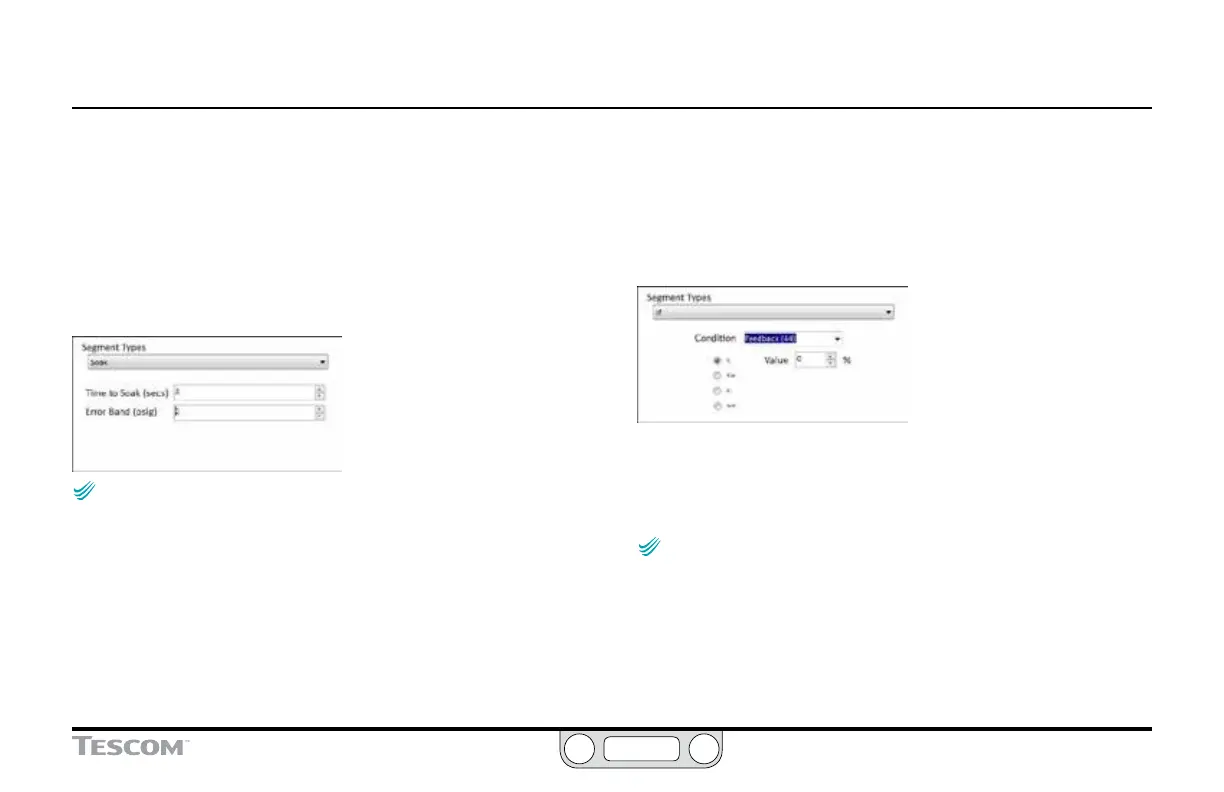

Soak
Pauses the Prole while the ER5000 responds to a step setpoint
change, then dwells at that setpoint for a specied amount of
time. The Error Band (psig) eld sets the range (+/-) around the
setpoint. When feedback falls within this range, the ER5000
maintains the new setpoint for the amount of time, in seconds,
entered in the Time to Soak (sec) entry eld.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
The Dwell command counts off the specied time regardless of
ER5000 response. The Soak command accounts for rise and settling time
before counting off the specied time.
If
Allows the Prole to respond to the current state of the system.
Checks whether a parameter of the current system status matches
the condition specied in the Condition, Operator and Value elds.
• If the condition is TRUE, the next command in the Prole
is executed.
• If the condition is FALSE, the next command is skipped.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
To execute a multi-line command sequence based on the same
condition, use the If command together with the Goto command, which
is described on the next page.
