The ERTune™ Program: Basic Features

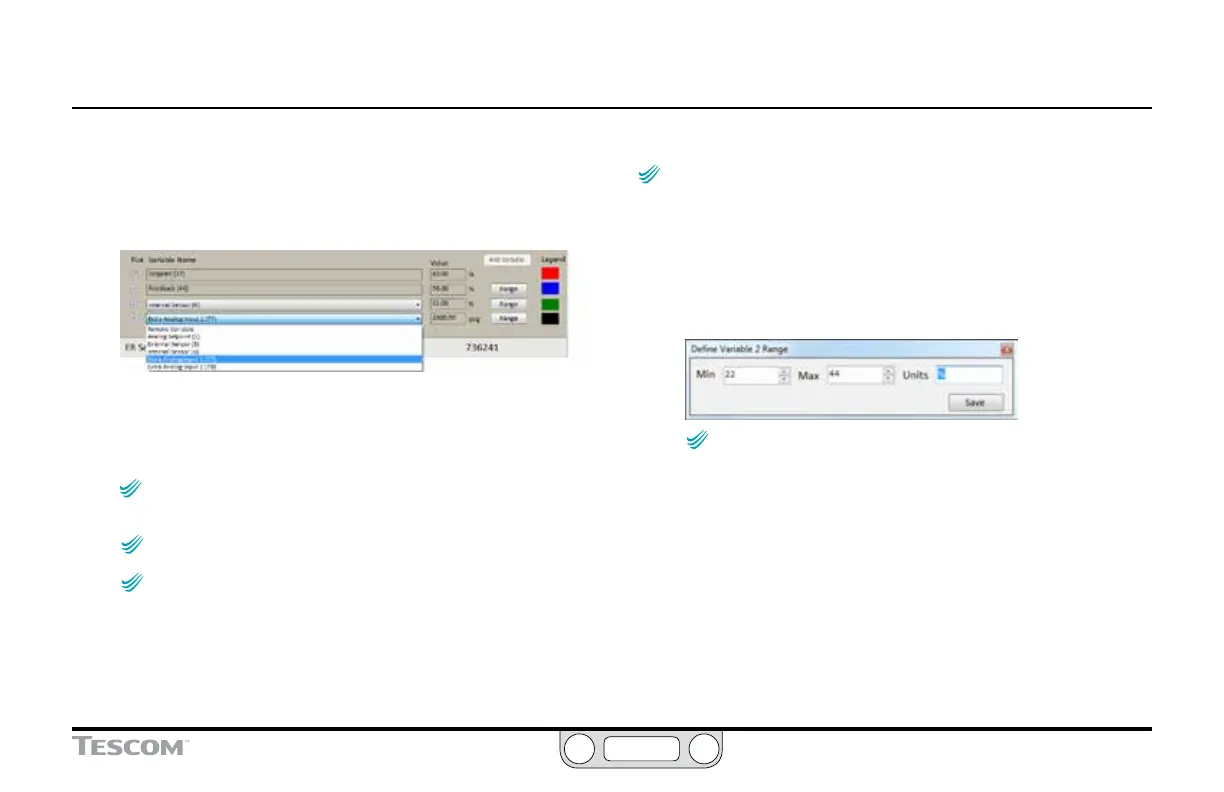

To add a variable using the Plot Screen Variable Controls
1. Click the Add Variable button.
2. A new line is added under Variable Name.
3. Click the Down Arrow (
▼
) to open the drop-down list.
4. Select the input source you wish to track.
5. Click the Plot check box to the left of the drop-down list to
add the variable to data acquisition.
IMPORTANT
!
IMPORTANT
!
Data will not be collected for this variable unless the
Plot check box is checked.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
This will also add the variable to the Plot Screen display.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
You may repeat this process to add a second
additional variable.
To set or change the range for an added variable
IMPORTANT
!
IMPORTANT
!
Changes made using the Range buttons in the Plot
Screen Variable Controls change the actual range of values tracked
by the ERTune™ program. Be sure the values you enter are correct for
your application so that the values the program tracks are an accurate
representation of system conditions.
1. Click the Range button to the right of drop-down list. The
Dene Variable Range window opens.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
The window will be labeled as Variable 1 or Variable 2,
depending on which added variable range is being dened.
2. Enter values for minimum, maximum and/or units of measure.
3. Click Save.
To add a variable using the Power User Tab
1. Select Help -> Power User to display The Power User Tab.
2. Click the tab to make it active.
3. In The Read/Write Panel, select a variable from the
Read/Write Variable drop-down list.
4. Click the Add to DAQ check box.
