Emerson Unidrive HS30 - Options and Interfaces; Option Module Identification

8 Unidrive M300/HS30 Quick Start Guide
Issue Number: 6

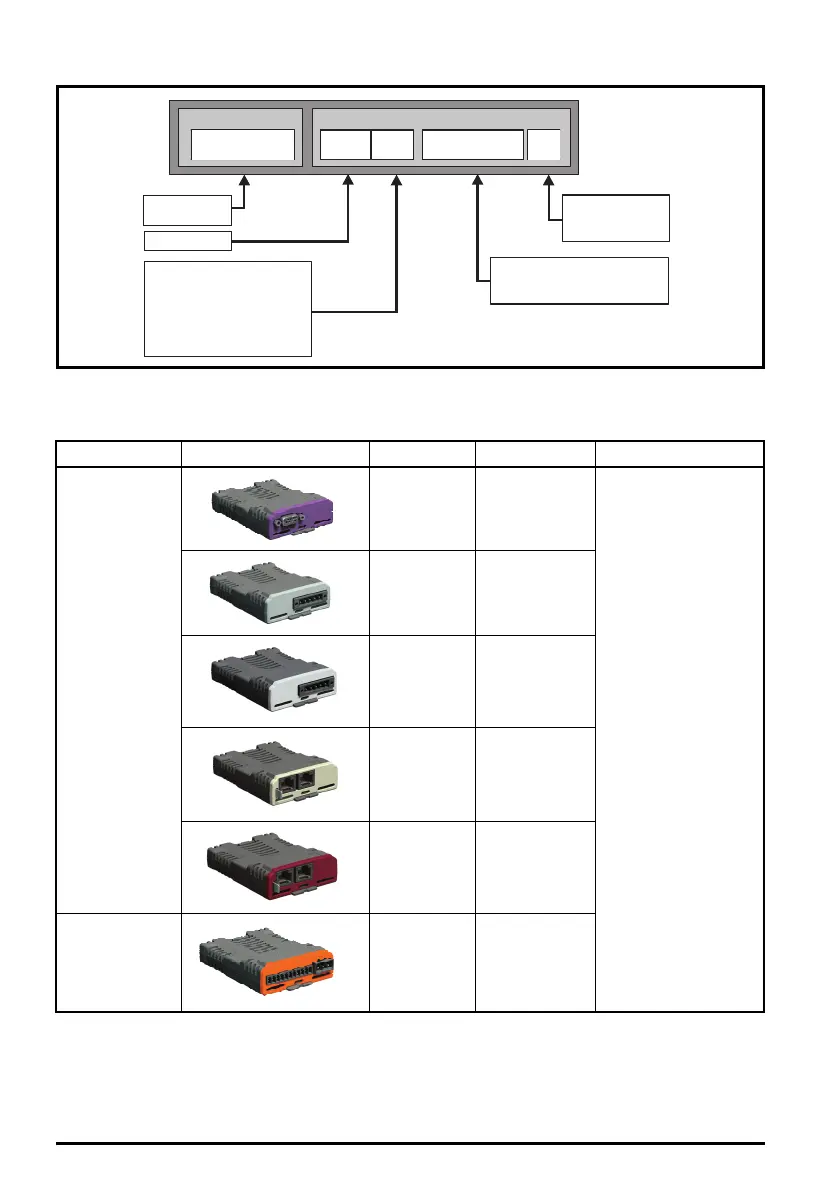

Figure 1-1 Model number structure
2Options
Table 2-1 System Integration (SI) option module identification
Type Option module Color Name Further details
Fieldbus
Purple SI-PROFIBUS
See relevant option
module User Guide
Medium
Grey
SI-DeviceNet
Light Grey SI-CANopen
Beige SI-Ethernet
Brown Red SI-EtherCAT
Automation
(I/O expansion)
Orange SI-I/O
Product line:
M300 / HS30
Frame size:
Current Rating :
Heavy Duty current rating x10
Drive Format :
A – AC in AC out
Voltage rating
:
1 - 100 V (100 - 120 10 %)±
2 - 200 V (200 - 240 10 %)±
4 - 400 V (380 - 480 10 %)±
5 - 575 V (500 - 575 10 %)±
6 - 690 V (500 - 690 10 %)±
Derivative
Electrical Specifications
M300 - 03 4 00073 A
