36 Unidrive M700/M701 / Unidrive HS70/HS71 Control Getting Started Guide
Issue Number: 2

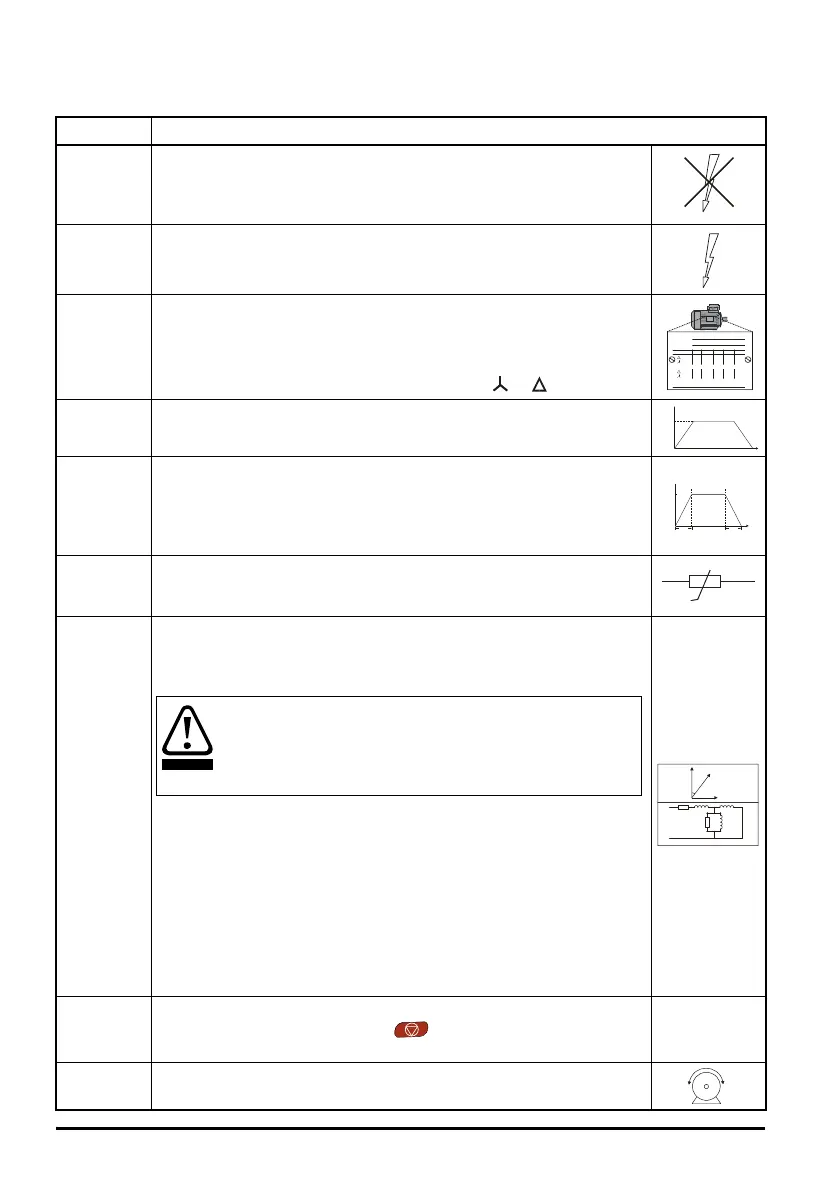

6.2 Quick Start / start-up
6.2.1 Open loop
Action Detail
Before
power-up
Ensure:
• The drive enable signal is not given (terminal 31)
• Run signal is not given
• Motor is connected
Power-up
the drive
Verify that Open Loop mode is displayed as the drive powers up.
Ensure: Drive displays ‘Inhibit’
Enter motor
nameplate
details
Enter:
• Motor rated frequency in Pr 00.047 (Hz)
• Motor rated current in Pr 00.046 (A)
• Motor rated speed in Pr 00.045 (rpm)
• Motor rated voltage in Pr 00.044 (V) - check if or connection
Set max
frequency
Enter:
• Maximum frequency in Pr 00.002 (Hz)
Set accel. /
decel. rates
• Acceleration rate in Pr 00.003 (s /100 Hz)
• Deceleration rate in Pr 00.004 (s /100 Hz) (If braking resistor installed,
set Pr 00.015 = FAST. Also ensure Pr 10.030, Pr 10.031 and
Pr 10.061 are set correctly, otherwise premature ‘Brake R Too Hot’
trips may be seen).
Motor
thermistor
set-up
If a thermistor is connected to terminal 8, then the Analog Input 3 Mode
(07.015) parameter must be set to Thermistor Short Cct (7), Thermistor
(8) or Therm No Trip (9).
Autotune
The drive is able to perform either a stationary or a rotating autotune. The
motor must be at a standstill before an auto-tune is enabled. A rotating
autotune should be used whenever possible so the measured value of
power factor of the motor is used by the drive
To perform an autotune:
•Set Pr 00.040 = 1 for a stationary autotune or set Pr 00.040 = 2 for a
rotating autotune
• Close the Drive Enable signal (terminal 31). The drive will display
’Ready’.
• Close the run signal (terminal 26 or 27). The lower display will flash
’Autotune’ while the drive is performing the autotune.
• Wait for the drive to display ’Ready’ or ‘Inhibit’ and for the motor to
come to a standstill.
• Remove the drive enable and run signal from the drive.
Save
parameters
Select 'Save Parameters' in Pr mm.000 (alternatively enter a value of
1000 in Pr mm.000) and press red reset button or toggle the reset
digital input.
Run Drive is now ready to run
Mot X XXXXXXXXX
No XXXXXXXXXX kg
IP55 I.cl F C 40 s S1
°
VHzmin
-1
kW cos
φ
A
230
400
50 1445 2.20 0. 80 8.50
4.90
CN = 14.5Nm
240
415
50 14 45 2. 20 0.7 6 8.50
4.90
CN = 14.4Nm
CTP- VEN 1PHASE 1=0,46A P=110W R.F 32MN
I.E.C 34 1(87)
A rotating autotune will cause the motor to accelerate up to
2
/
3
base speed in the direction selected regardless of the
reference provided. Once complete the motor will coast to a
stop. The enable signal must be removed before the drive can
be made to run at the required reference.
