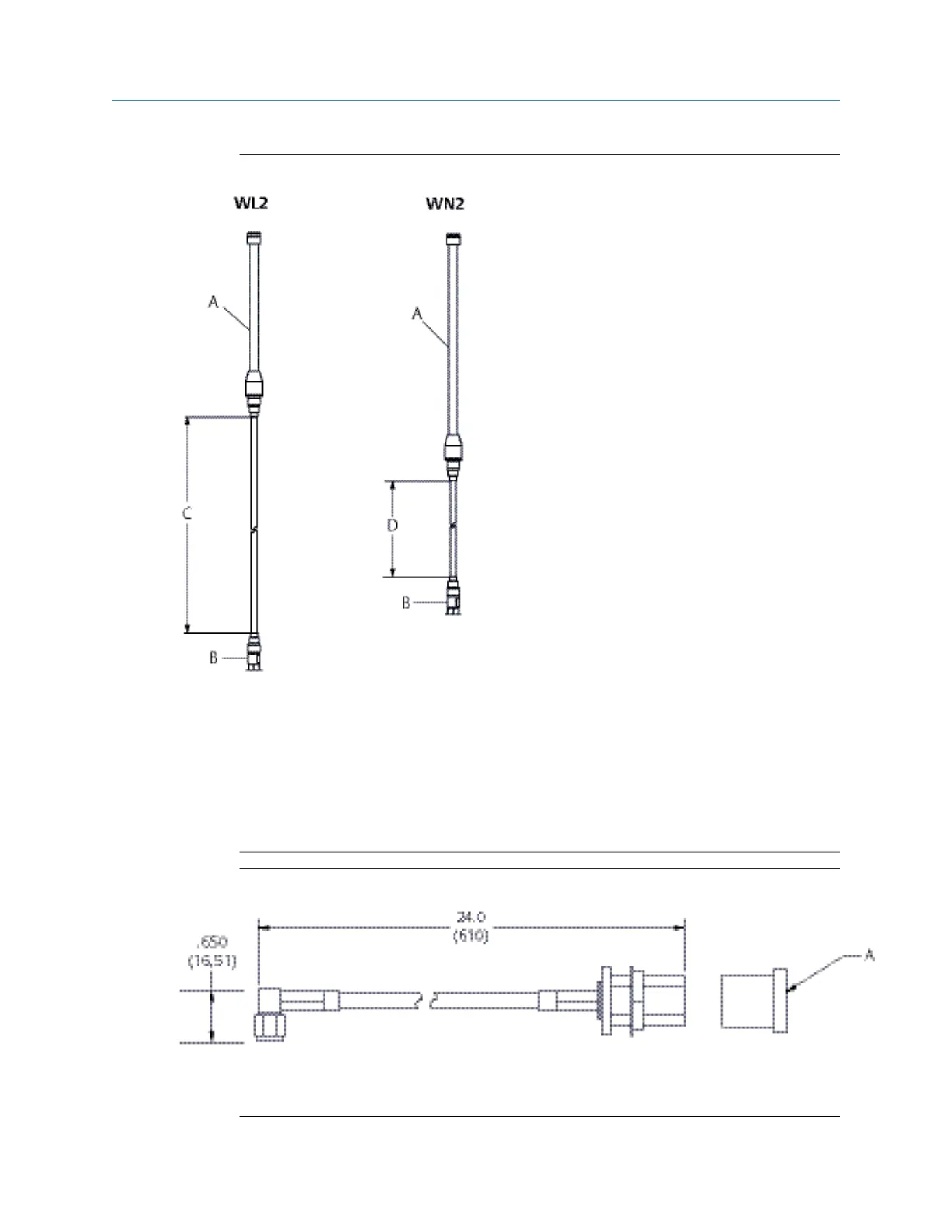

Figure A-3: Remote Omni-Antenna Kit
The remote omni-antenna kit includes sealant tape for remote antenna connection, SMA
to N-type adapter cable, mounting brackets for the antenna, and lightning arrester.
A
Antenna
B
Lightning arrestor
C
50-ft. (15,2 m) cable
D
25-ft. (7,6 m) cable
Figure A-4: SMA to N-Type Adapter Cable
A
End cap
Dimensions are in inches (millimeters).
Reference Manual Specifications and Reference Data
00809-0200-4410 September 2020
Emerson.com/Rosemount 61
