7.3.2 Display control (Firmware 5.XX and 6.XX)

Control of the display takes place principally via the call-up button [A]. Certain functions

such as carrying out a manual reset, setting the data and time etc. require the operation

of the reset button [R], which can be locked with a seal.

For control of the display the following applies:

Short keypress (< 2 s): switches over to the next list or value of the list

Long keypress (2 s < t < 5 s): switches over to the next menu option

Longest keypress (> 5 s): back to the scrolling list

Note: Depending of the meter configuration, few menu items are not available.

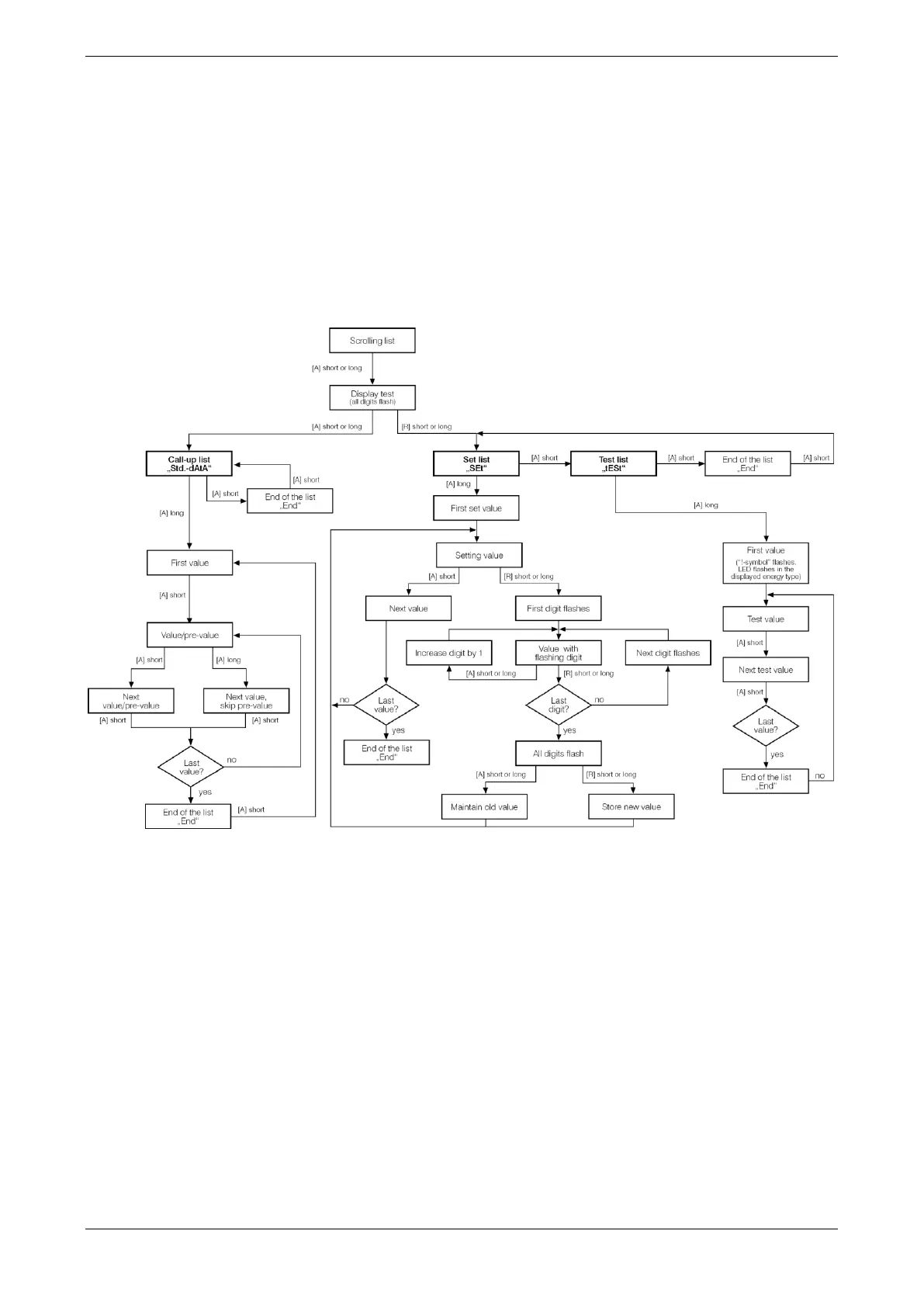

Figure 14: Operation plan (Firmware 5.XX and 6.XX)
