2.3.3 Direct connected meter 100 A
Current terminals
Voltage and auxiliary
terminals
Terminal dimensions
W x H (d) mm
9,5
3
Max. connection-
cross section (mm²)
35
2,5
Maximum torques
for terminals (Nm)
3,1
0,5
Head/size of thread
PZ2/M6
slot/M3

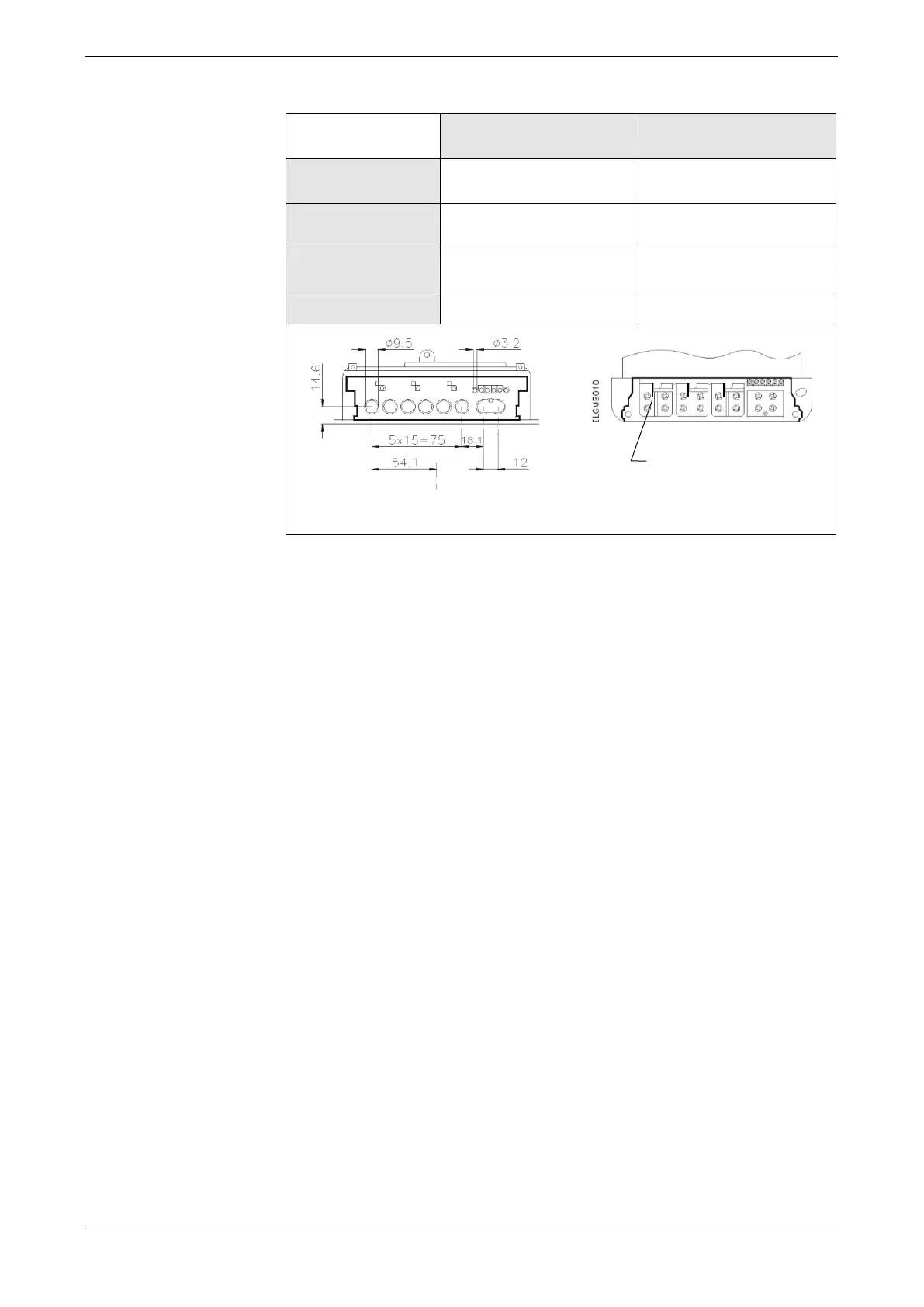

Figure 5: Terminal block for direct connected meter 100 A
For testing the device the
voltage path is interrupted by
the path separator. With
normal operation the path
separator is removed.
