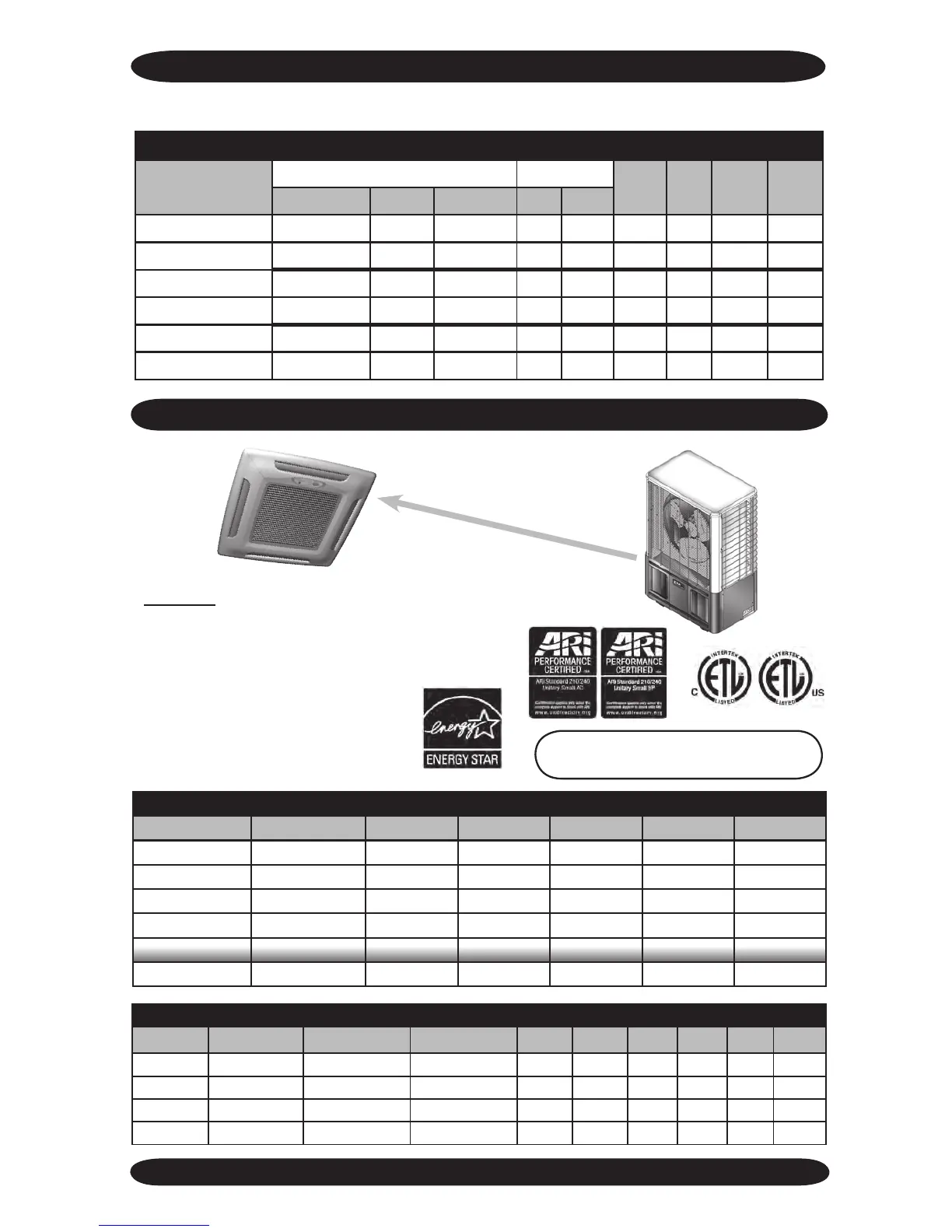

Cassette Air Handler
CASSETTE ELECTRICAL SPECIFICATIONS
Model #
Fan Motor Elect Heat
Total
AMPS
Min
Volt
M.C.A.
HACR
BRKR
Volts/HZ/PH RLA H.P. kW AMPS
CAH_12
208/230/60/1 0.35 1/10 – – 0.4 197 0.5 15
CAH_12
208/230/60/1 0.35 1/10 1.5 6.52 6.9 197 8.6 15
CAH_24
208/230/60/1 0.55 1/8 – – 0.6 197 0.7 15
CAH_24
208/230/60/1 0.55 1/8 3 13.04 13.6 197 17.0 20
CAC_36
208/230/60/1 0.5, 0.5 1/10, 1/10 – – 1.0 197 1.2 15
CAC_36
208/230/60/1 0.5, 0.5 1/10, 1/10 5 21.74 22.7 197 28.3 30
CASSETTE SYSTEM MATCHES
S1CA/S1HA
Side Discharge
Cassette
CASSETTE ELECTRICAL SPECIFICATIONS
NOTE: Due to EMI’s ongoing product development program, all designs and specications
are subject to change without notice.
SYSTEMS WITH HEAT PUMP CASSETTE UNITS
Cassette Condenser Cooling Btuh Heating Btuh SEER HSPF SHR EER COP
Ref.
CAH_12 S1HA9000 9,000 8,000 13.0 7.7 0.80 11.6 3.3
R22
CAH_12 S1HA2000 11,800 10,800 13.0 7.7 0.72 11.4 3.4
R22
CAH_24 S1HA8000 18,000 15,000 13.0 7.7 0.78 12.0 3.3
R22
CAH_24 S1HA4000 23,000 20,000 13.0 7.7 0.69 11.7 3.3
R22
NOTE: CAH_ refers to CAHA or CAHB
CAC_ refers to CACA or CACB
COOLING SYSTEMS WITH CASSETTE UNITS
Cassette Condenser Btuh SEER SHR EER
Ref.
CAH_12 S1CA9000 9,000 13.0 0.79 11.7
R22
CAH_12 S1CA2000 11,800 13.0 0.72 12.2
R22
CAH_24 S1CA8000 18,000 13.0 0.76 12.3
R22
CAH_24 S1CA4000 23,000 13.0 0.67 11.8
R22
CAC_36 S1CA3000 30,000 14.0 0.82 12.0
R22
CAC_36 S1CA6000 36,000 13.0 0.74 12.0
R22
*
* Important - This system has been designed and
manufactured to meet ENERGY STAR criteria for
energy efciency. However, proper refrigerant charge
and proper air ow are critical to achieve rated capac-
ity and efciency. Installation of this product should
follow the manufacturer’s refrigerant
charging and air ow instructions. Fail-
and shorten equipment life.
