49

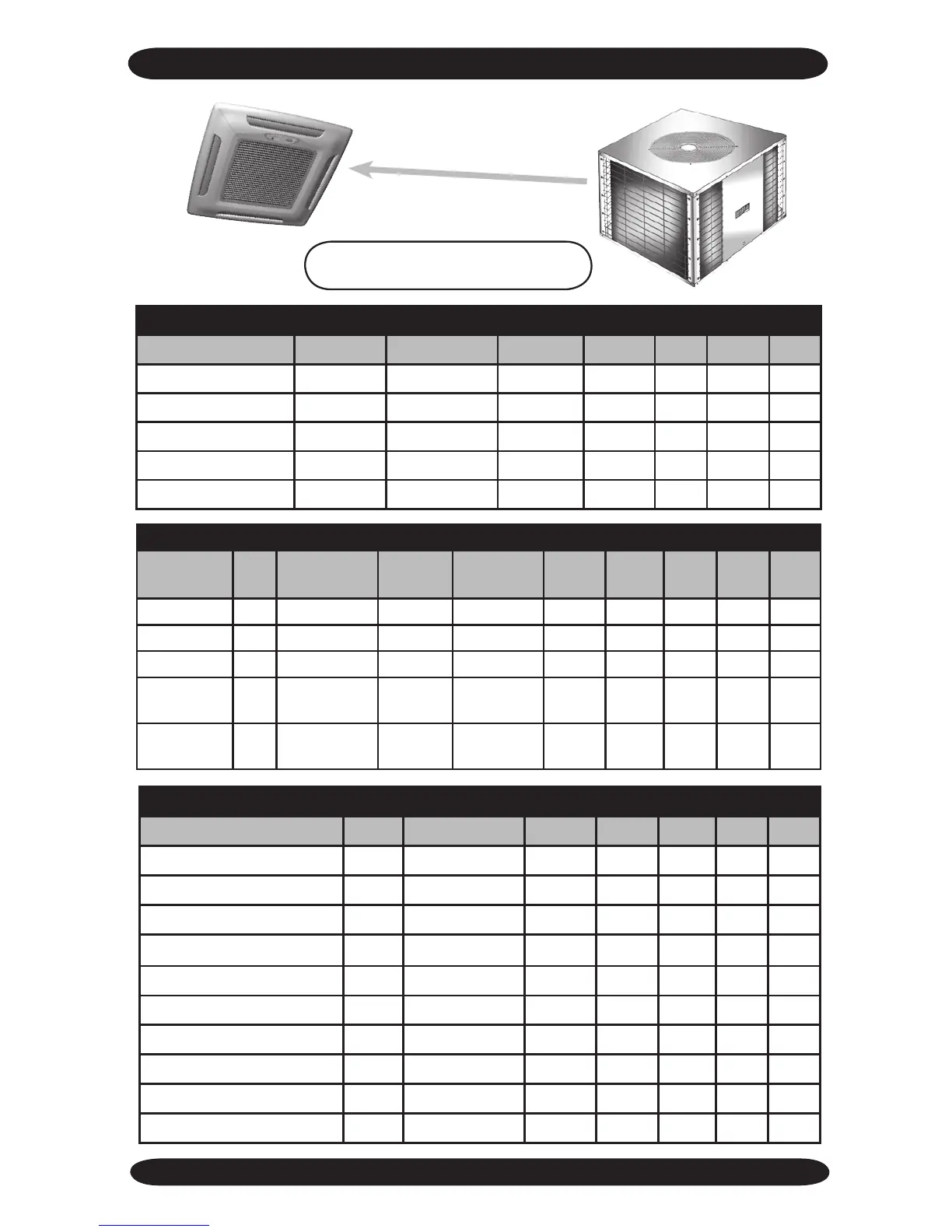

Cassette Air Handler
Cassette
T2CA/T2HA,
T3CA/T3HA, & T4CA/T4HA
Top Discharge
CASSETTE SYSTEM MATCHES
SYSTEM OPTIONS WITH T2CA TOP DISCHARGE
Cassette(s)
Qty
Condenser Btuh SEER SHR EER Ref.
CAH_24 2 T2CA8800 34,000 13.0 0.79 11.4 R22
CAH_24 2 T2CA4400 45,000 13.0 0.69 11.2 R22
CAH_12 + CAH_24 1 + 1 T2CA9800 26,400 13.0 0.82 11.4 R22
CAH_24 2 T2CA8400 39,000 13.0 0.74 11.3 R22
CAH_12 + CAH_24 1 + 1 T2CA2400 34,000 13.0 0.75 11.4 R22
SYSTEM OPTIONS WITH T2HA TOP DISCHARGE
Cassette Qty Condenser
Cooling
Btuh
Heating
Btuh
SEER SHR EER COP Ref
CAH_24 2 T2HA8800 36,000 26,400 13.0 0.75 12.6 3.1 R22
CAH_24 2 T2HA8400 42,000 32,600 13.0 0.71 12.4 3.1 R22
CAH_24 2 T2HA4400 48,000 40,000 13.0 0.67 12.0 3.1 R22
CAH_12 +
CAH_24
1+1 T2HA9800 27,200 21,200 13.0 0.76 12.2 3.1 R22
CAH_12 +
CAH_24
1+1 T2HA2400 35,000 30,000 13.0 0.69 11.8 3.1 R22
SYSTEM OPTIONS WITH T3CA TOP DISCHARGE
Cassette(s)
Qty
Condenser Btuh SEER SHR EER Ref.
CAH_12 + CAH_24 2 + 1 T3CA9940 40,000 13.0 0.82 11.3 R22
CAH_12 3 T3CA9990 26,400 13.0 0.87 11.4 R22
CAH_12 3 T3CA2220 34,400 13.0 0.76 11.4 R22
CAH_12 + CAH_24 2 + 1 T3CA9280 37,800 13.0 0.80 11.3 R22
CAH_12 + CAH_24 2 + 1 T3CA9240 42,500 13.0 0.79 11.3 R22
CAH_12 + CAH_24 2 + 1 T3CA2280 40,500 13.0 0.76 11.2 R22
CAH_12 3 T3CA9220 31,800 13.0 0.80 11.4 R22
CAH_12 3 T3CA9920 29,000 13.0 0.83 11.4 R22
CAH_12 + CAH_24 2 + 1 T3CA9980 35,200 13.0 0.83 11.4 R22
CAH_12 + CAH_24 2 + 1 T3CA2240 45,500 13.0 0.75 11.2 R22
NOTE: CAH_ refers to CAHA or CAHB
CAC_ refers to CACA or CACB
