3.0 Explanation of the connections

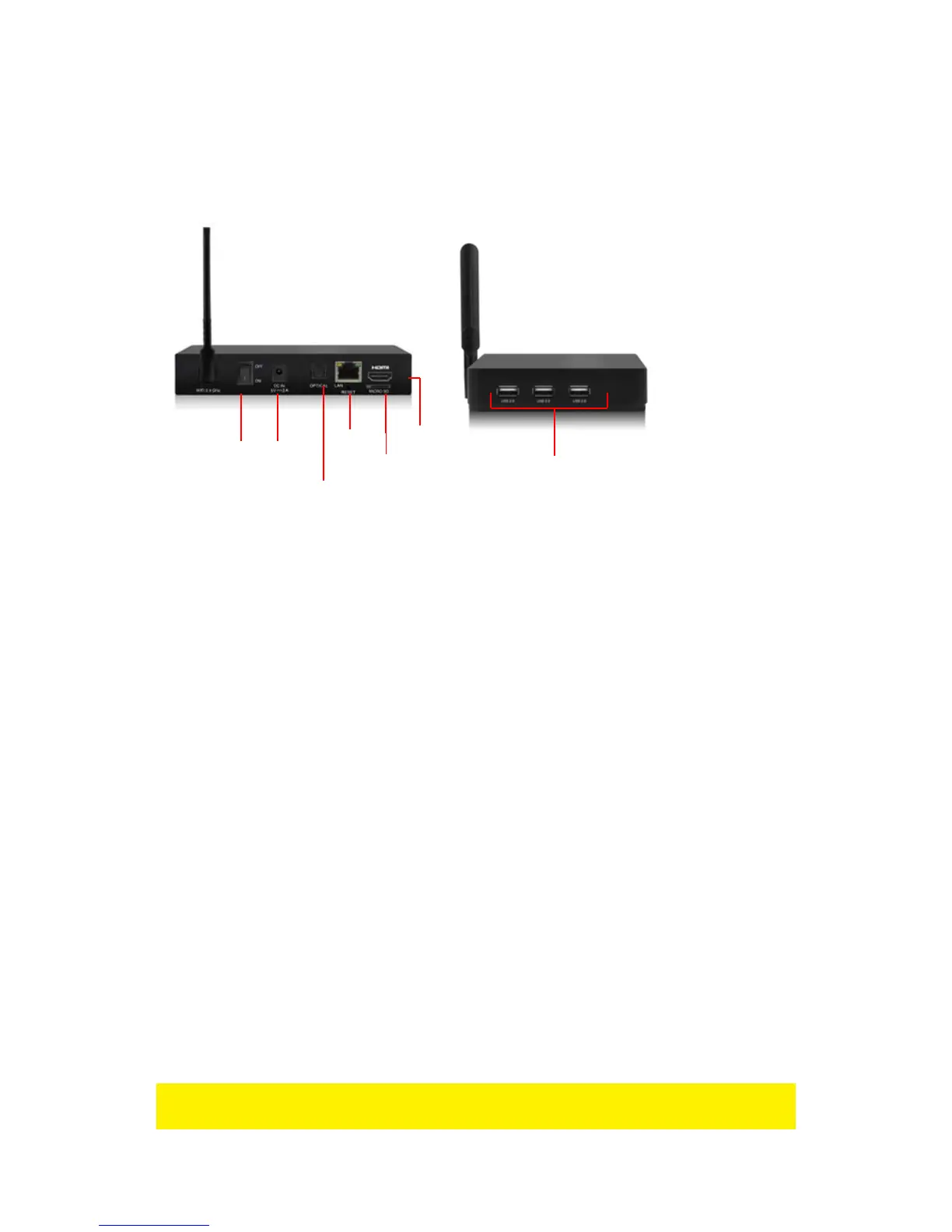

3.1 Connections of the EM7680
• On/Off Switch.
• DC In: Connection for the power cable (5V).
• Optical S/PDIF connection: Audio connection to connect to your digital audio
receiver.
• LAN: Connection used to connect to your LAN network.
• Micro SD card reader: Connection for external memory cards such as Micro-SD
and Micro-SDHC cards.
• HDMI connection: HDMI High speed. Used to connect to your HD television or
HDMI AV receiver.
• USB 2.0 host: Used to connect USB devices such as a USB hard disk, USB
memory sticks, wireless keyboard and Wifi network adapters.
4.0 Connecting the TV streamer
1. Connect the HDMI cable to the HDMI connection of the EM7680 and connect the
other side of the HDMI cable to a free HDMI connection on your television.
2. Connect a network cable to the LAN connection of the EM7680. Connect the other
side of the network cable to your modem/router or switch.
3. Set the television to the corresponding HDMI channel.
4. Connect the cable of the power supply to the ‘Power’ of the EM7680.
5. Connect the power supply to a wall outlet.
If you want to connect your TV streamer to your HDMI AV receiver, please follow the
steps described in chapter 7 Audio Passthrough setup.
