EMKO ESM-1510 - Easy Access Diagram of Programming Mode Parameters

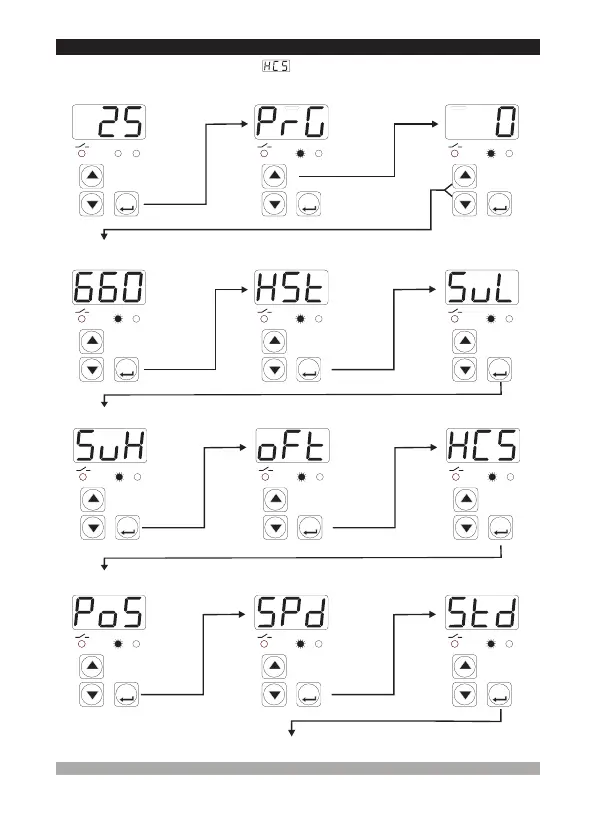

4.5 Easy Access Diagram Of Programming Mode Parameters
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
Hysteresis Parameter
Minimum Set Value
Parameter
Set Value
Parameter
Maximum
Process Offset Parameter
Operating Type
Parameter
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
5 secs
Operation Screen
Programming Mode
Entering Screen
Password Entering
Screen
Password Entering
Screen
Enter Password with
increment and
decrement buttons
Press SET/OK
button for
accessing
parameters
1-If Operating Type Parameter Value = 1 (Cooling),
SV
P
SET
°C
SV
P
SET
°C
SV
P
SET
°C
Switch On Delay After
Power On Parameter
Compressor Stop/Start
Time Delay Parameter
Compressor Start/Start
Time Delay Parameter
22
