EMKO ESM-3723 - General Description; Panel Cutout

2.2 Panel Cut- Out
2. General Description

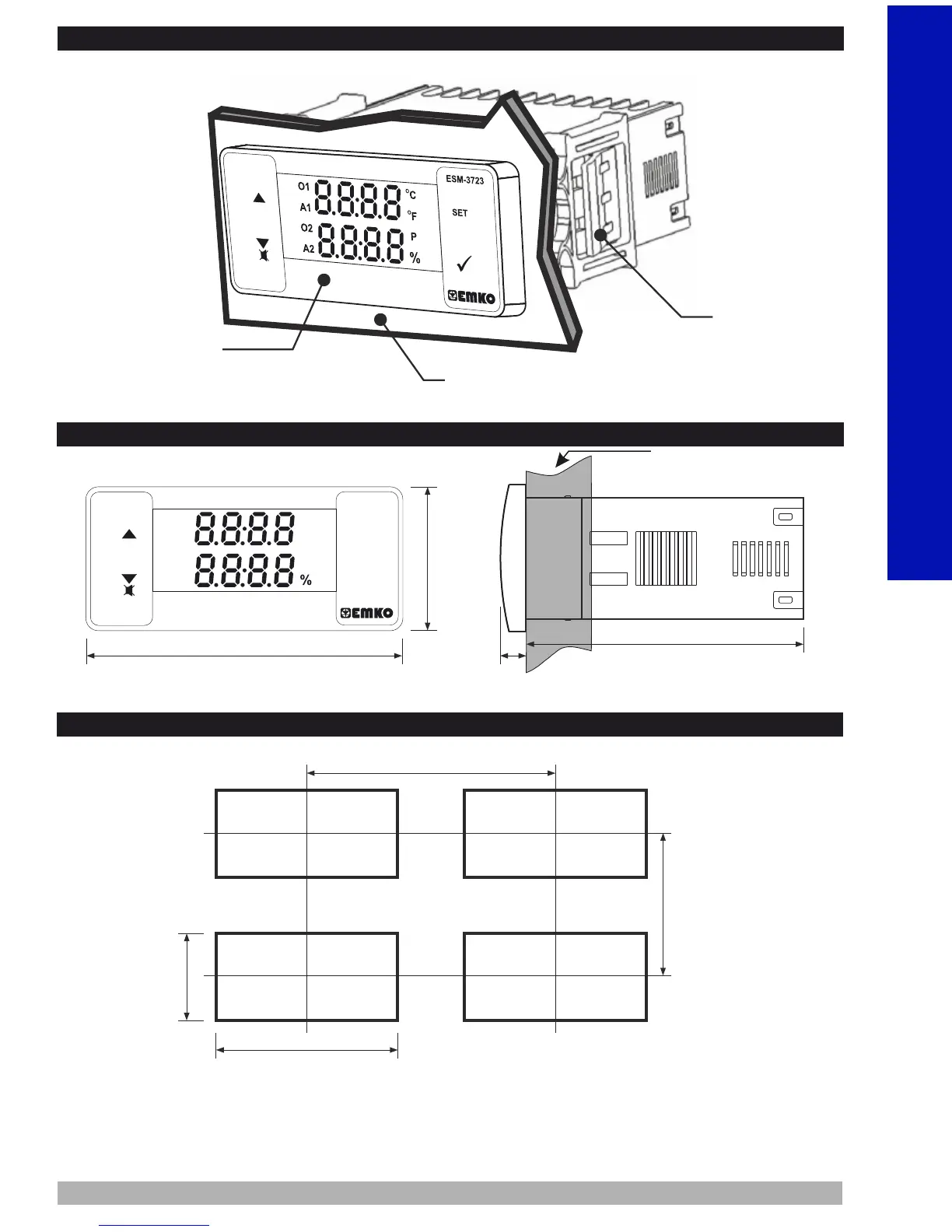

2.1 Front View and Dimensions of ESM-3723 Temperature Controller
76 mm / 3 inch
34,5 mm / 1.36 inch
4
Mounting Clamp
Panel Surface
(maximum thickness 15 mm / 0.59 inch)
Front panel
IP65 Protection
NEMA 4X
65 mm / 2.56 inch
6 mm / 0.24 inch
110 mm / 4.33 inch (min)
71 mm / 2.79 inch
29 mm / 1.14 inch
50 mm / 1.97 inch (min)
Maximum 15 mm / 0.59 inch
ESM-3723
ü
SET
P
O1
O2
A1
A2
O
C
O
F
