Installation
© 2021 EMP Inc. 13
10-way On/Off Single Speed Control
NOTE: All cavities in the mating connector(s) must either be terminated or
plugged to prevent moisture from entering the component.
NOTE: Ensure wires are sized appropriately for the application. Wire gauges
and circuit protection shown in this document are suggestions.
NOTE: EMP parts kit 1370056018 includes a mini-fuse holder, cover, fuses,
and the wiring parts required for installation of the holder.

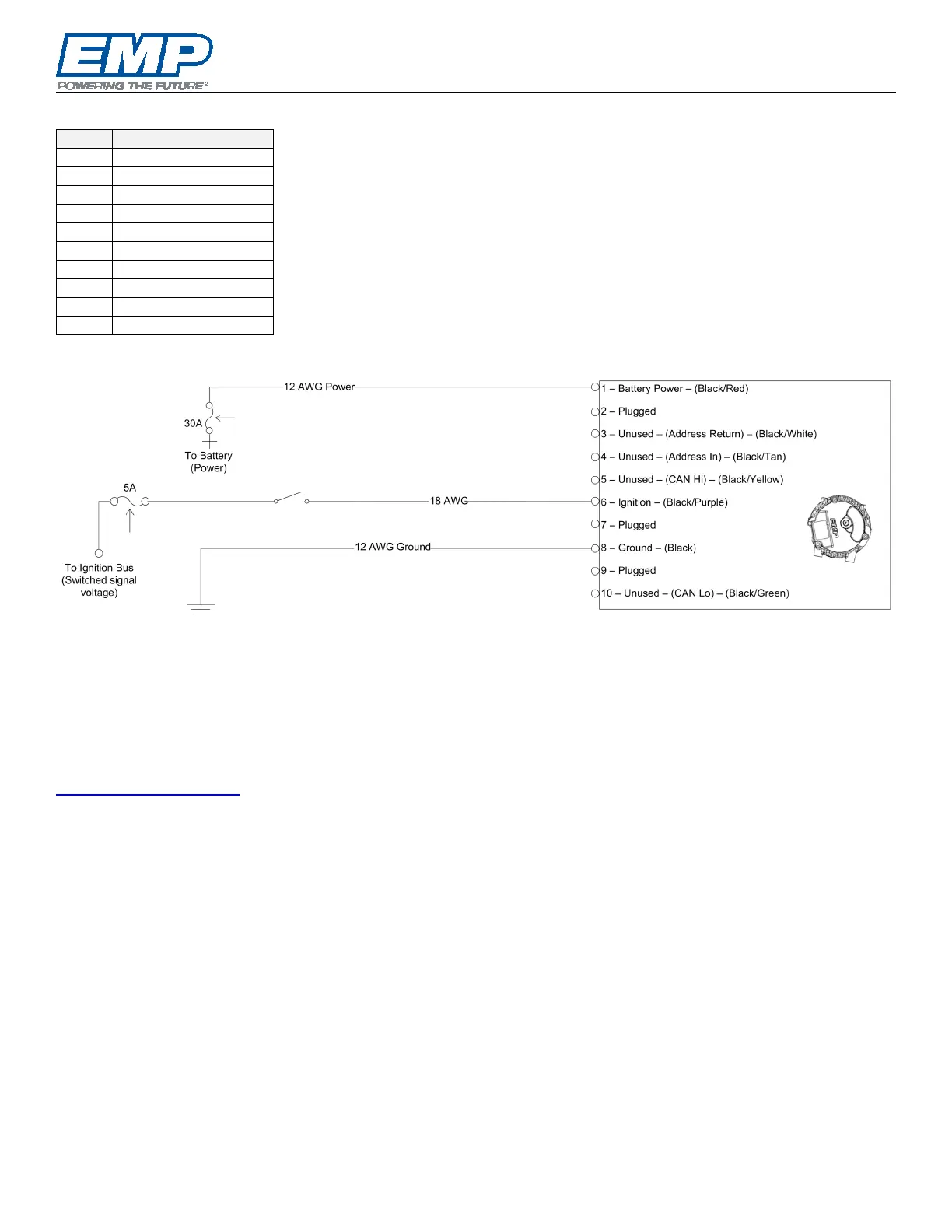

Example On/Off Application Schematic
Operation
When power is on and ignition enable is on, the component will run in an on/off, single speed manner. The speed
at which the component will run will be the pre-configured default speed. EMP also provides a “Power Hold”
option which can keep the controller running for a specified amount of time after the ignition enable has been
removed. This allows for post-shutdown cooling.
NOTE: For assistance with component calibrations and settings, please contact EMP Technical Service at
service@emp-corp.com
and provide a serial number for the part in question.
NOTE: See Installation Manual WP120 Electric Water Pump, EMP document 9970137000, for additional
operation information including installation for use on a CAN bus.
