Installation
© 2021 EMP Inc. 15
7-way On/Off Single Speed Control
NOTE: All cavities in the mating connector(s) must either be
terminated or plugged to prevent moisture from entering the
component.
NOTE: 10 AWG wire can be used for power and ground. Use
Delphi 480 cable seal #15324990.
NOTE: EMP parts kit 1370056018 includes a mini-fuse holder,
cover, fuses, and the wiring parts required for installation of the
holder.

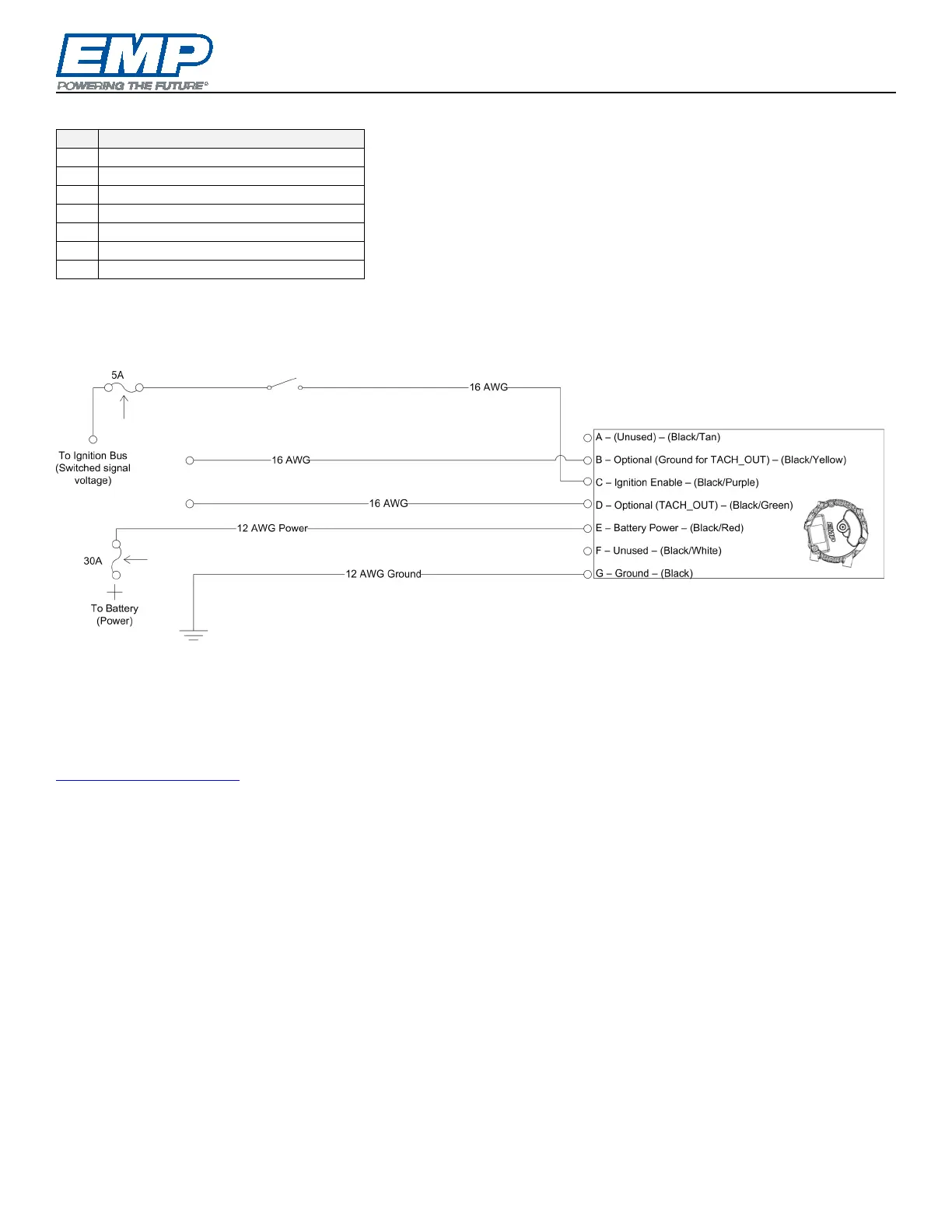

Example On/Off Application Schematic
Operation
When power is on and ignition enable is on, the component will run in an on/off, single speed manner. The speed
at which the component will run will be the pre-configured default speed.
NOTE: For assistance with component calibrations and settings, please contact EMP Technical Service at
service@emp-corp.com
and provide a serial number for the part in question.
NOTE: See Installation Manual WP120 Electric Water Pump, EMP document 9970137000, for additional
operation information including installation for use with PWM input or TACH_OUT.
Optional (Ground for TACH_OUT)
To Next Page
