Installation
© 2021 EMP Inc. 14

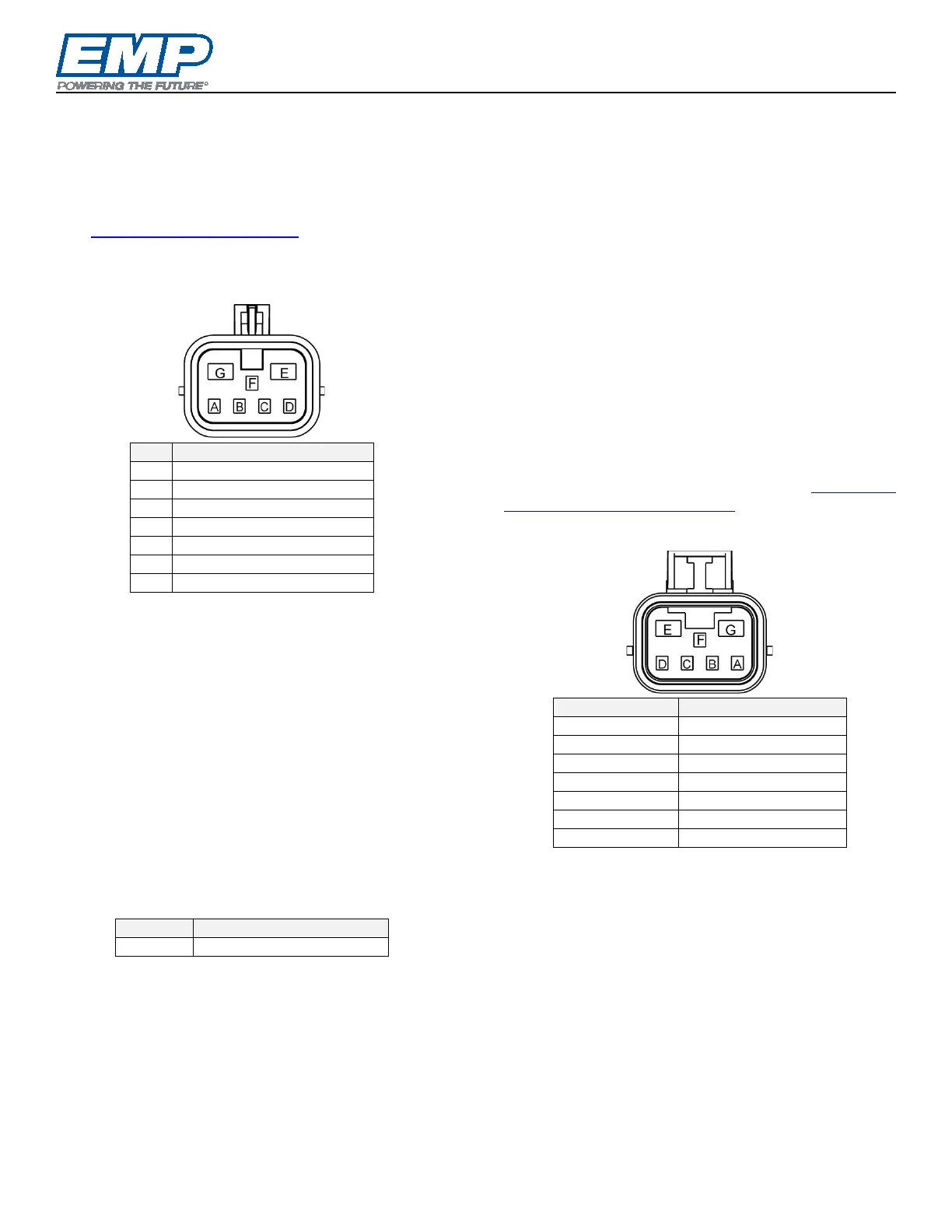

7-way Component Connector
NOTE: Do not disconnect the component while it
is running; stop running the component prior to
disconnecting the connector.
See Service Parts Replacement for component
connector part numbers.
Male Delphi Metripack 150/480 Sealed
7-way Connector Greasing
NOTE: See Service Bulletin Approved Grease,
document 9910039075, for a list of dielectric
grease products that have been approved for use
in maintenance and service. The document can be
obtained on the EMP website by searching for the
document number.
NOTE: Only use clean dielectric grease.
1. Apply dielectric grease to each harness side
electrical connector. See the table below for
specified grease amounts.
Reference Quantities
7-way Mating Connector
NOTE: All cavities in the mating connector must
either be terminated or plugged to prevent
moisture from entering the component.
NOTE: Refer to the appropriate control section to
determine the parts needed for assembling the
mating connector for your application.
Female Delphi Metripack 150/480 Sealed
The connector on the component is a sealed Delphi
480/150 Metripack mixed connector with male
terminals.
NOTE: A service kit containing all parts needed for
one mating connector is available from EMP. The
service kit part number is 1370036093, and the
service kit drawing is available on the EMP website
and can be obtained at
www.emp-
corp.com/support/documents by searching for the
service kit part number.
