EMPHASER EA285 User Manual

28 29
7. TECHNICAL SPECIFICATIONS / TECHNISCHE SPEZIFIKATIONEN
Model EA285 EA485 EA1300
Number of Channels 2 4 1
Rated Power Output (RMS)
At 4 Ohms / 13.8V (THD<=0.1%) 85 W x 2 85 W x 4 230 W x 1
Rated Power Output (RMS)
At 2 Ohms / 13.8V (THD<=0.1%) 110 W x 2 110 W x 4 360 W x 1
Rated Power Output (RMS)
At 4 Ohms / 13.8V (THD<=0.1%) 250 W x 1 250 W x 2 N.A.
Damping Factor
4 Ohms/100Hz > 200 > 200 > 200
Signal-to-Noise Ratio
(All channels) > 93 dB > 93 dB > 93 dB
Frequency Response
(x-over set to FULL) 15 Hz – 30 kHz 15 Hz – 30 kHz 15 Hz – 250 Hz
Input Sensitivity 0.2 V – 7.0 V 0.2 V – 7.0 V 0.2 V – 7.0 V
Integrated X-Over
Slope Rates HPF / LPF 12 dB/octave 12 dB/octave 12dB/octave
Cross-Over Frequency
High Pass 50 – 250 Hz 50 – 250 Hz N.A.
Low Pass 50 – 250 Hz 50 – 250 Hz 40 – 250 Hz
Subsonic 15 – 50 Hz 15 – 50 Hz 15 – 50 Hz
Fuses 1 x 25 A 1 x 40 A 2 x 25 A
Dimensions (W x H x D) mm 250 x 60 x 120 360 x 60 x 120 300 x 60 x 120
FUSES
GND
RE M
12V
FUSES
GND
RE M
12V
INPUT
IN
OUT
MASTER/SLAVE
REM
CH1
CH2
HIGH INPUT
EA1300
INPUT
IN
OUT
MASTER/SLAVE
REM
CH1
CH2
HIGH INPUT
EA1300
HEAD UNIT
AMP 1: MASTER AMP 2: SLAVE
RCAREM

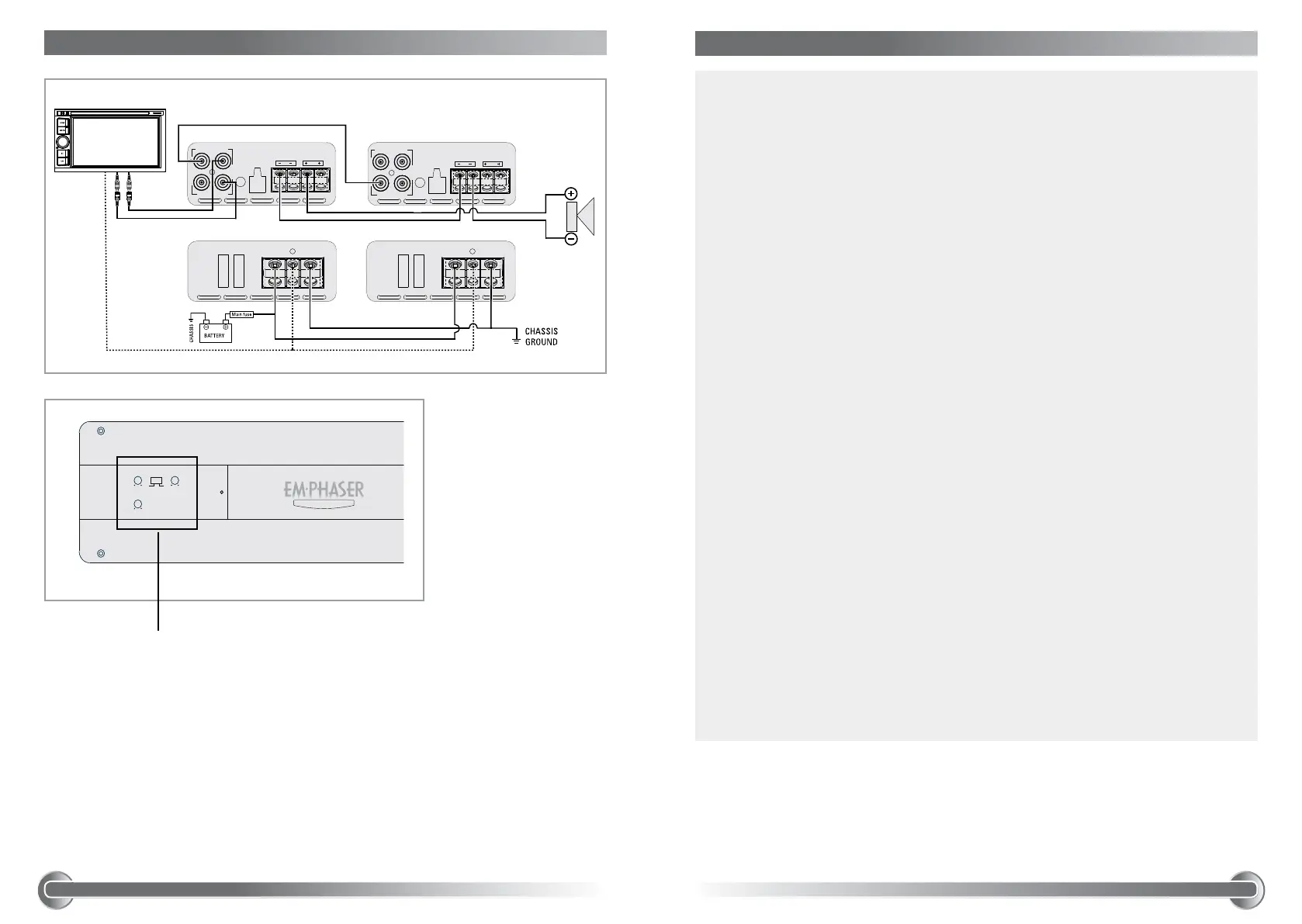

6. MASTER / SLAVE CONNECTION / ANSCHLUSS-SCHEMA
In Master/Slave mode, only the Master
amp top controls are functional.
In Master/Slave Modus sind nur die Top
Controls des Master Amps funktionell.
GAIN
LPF
MIN MAX
40Hz 250Hz
SUB
SONIC
15Hz 50Hz
PHASE
180°
0°
GAIN
LPF
MIN MAX
40Hz 250Hz
SUB
SONIC
15Hz 50Hz
PHASE
180°
0°
4 Ohms min.
Load
Impedance
Woofer
