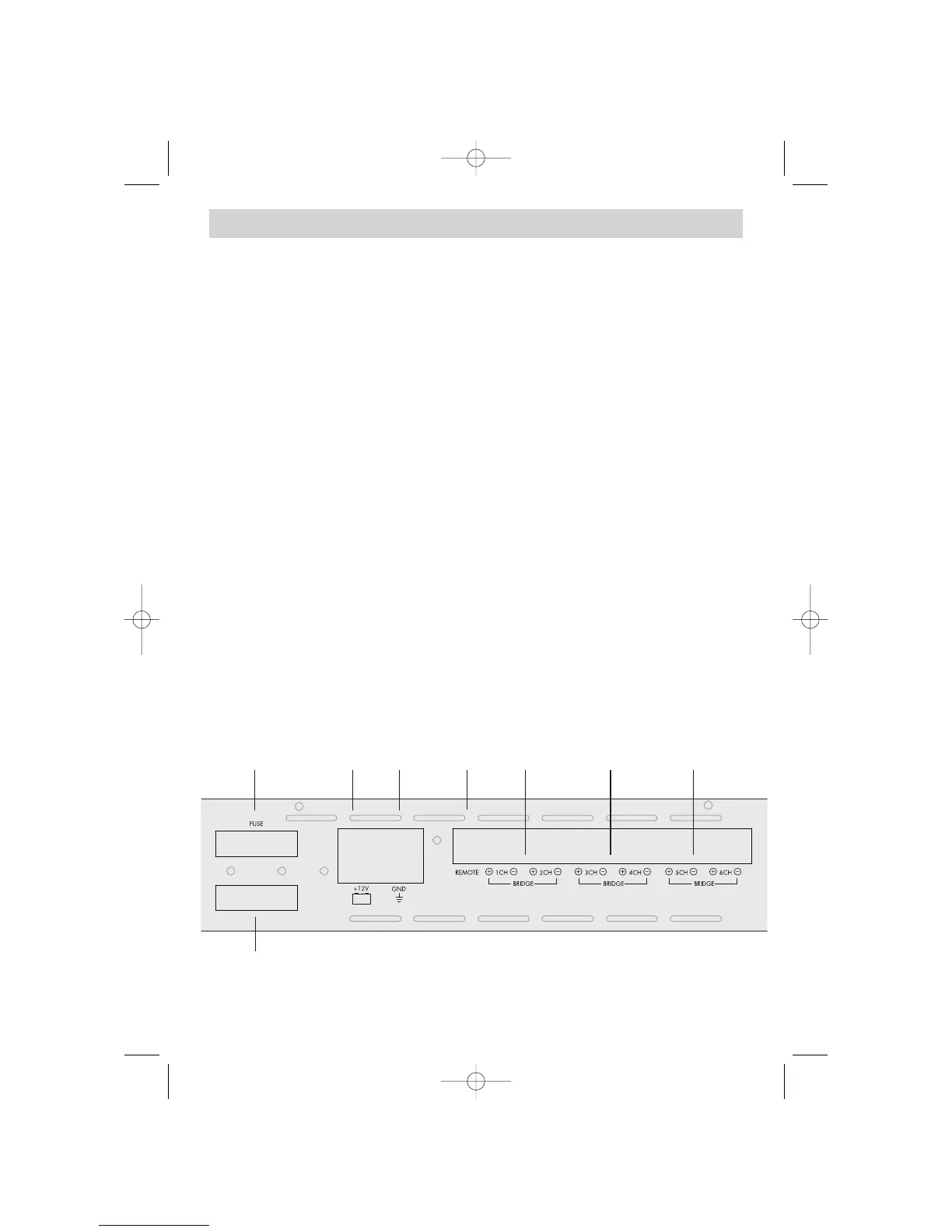

2.2 REAR PANEL CONNECTIONS & CONTROLS
21a/ FUSES
21b
Two 80A Maxi fuses for protection of the amplifier electronics against overload or
wrong operation / manipulation. See chapter 8.0
22 POWER INPUT TERMINAL "+ 12 V"
Terminal to connect the amplifier to the positive +12V pole of the car battery.
See chapter 6.3
23 POWER INPUT TERMINAL "GND"
Terminal to connect the amplifier to the negative or ground pole of the car battery.
See chapter 6.3
24 REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of the
head unit. See chapter 6.1
25 SPEAKER OUTPUT TERMINALS 1/2-CH
Output terminal to connect the speakers to the 1/2-CH channels of the amplifier.
See chapter 6.2
26 SPEAKER OUTPUT TERMINALS 3/4-CH
Output terminal to connect the speakers to the 3/4-CH channels of the amplifier.
See chapter 6.2
27 SPEAKER OUTPUT TERMINALS 5/6-CH
Output terminal to connect the speakers to the 5/6-CH channels of the amplifier.
See chapter 6.2
