Empire DVCD42FP31P-2 - Rear Venting: Installation Examples; Rear Venting Example 1; Rear Venting Example 2

36167-1-0316 Page 25

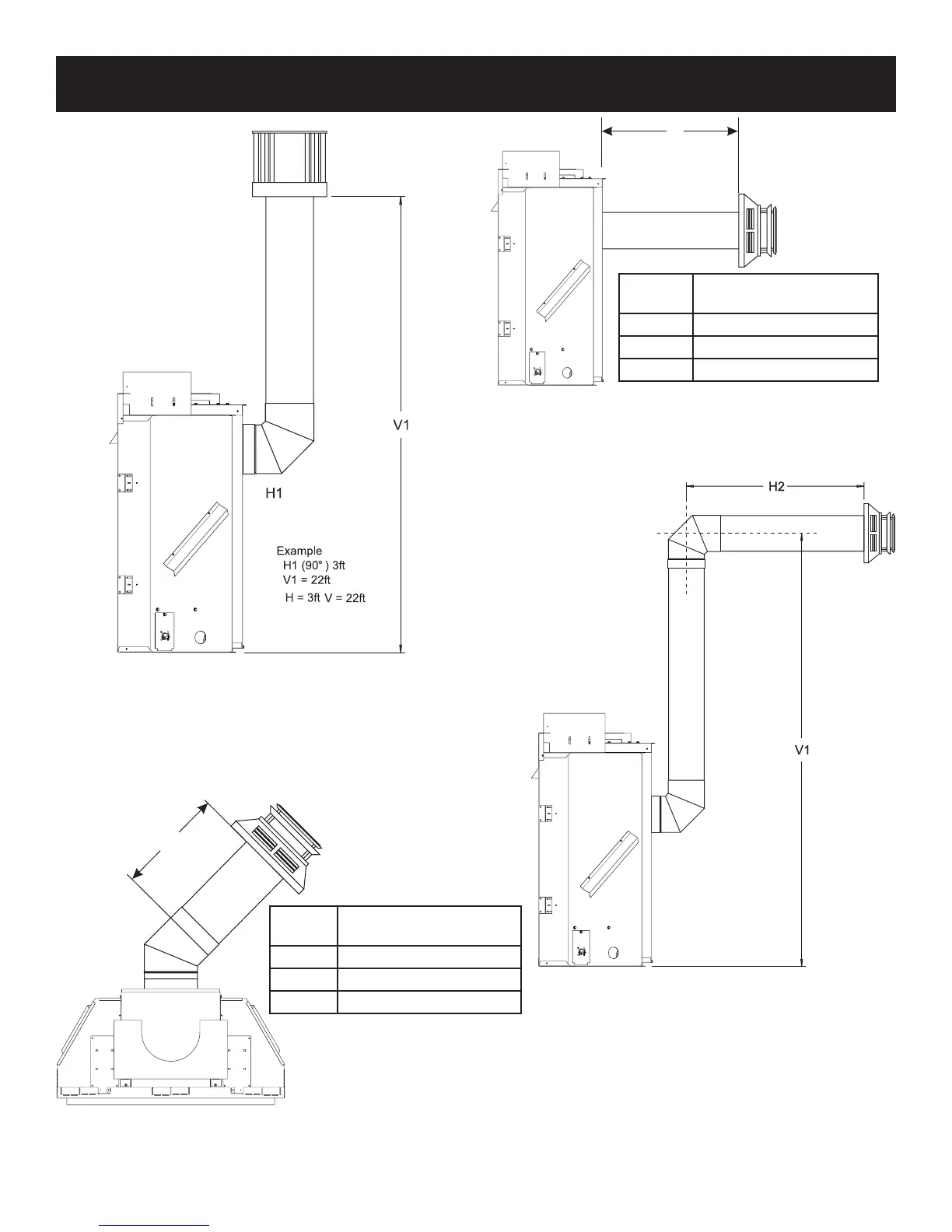

Figure 41
Figure 42
Figure 43
Figure 44
H1
TOP VIEW
H1
Example
H2 = 4ft
2-(90° + 90°) = 6ft
V1 = 12ft
H = 10ft V = 12ft
 Maximum Pipe Length H1
(Dim. in inches)
dvcd32 24
dvcd36 24
dvcd42 
 Maximum Pipe Length H1
(Dim. in inches)
dvcd32 24
dvcd36 24
dvcd42 24
VENTING FIREPLACE - REAR (EXAMPLES)
