SYS5INST ISS.3 2000

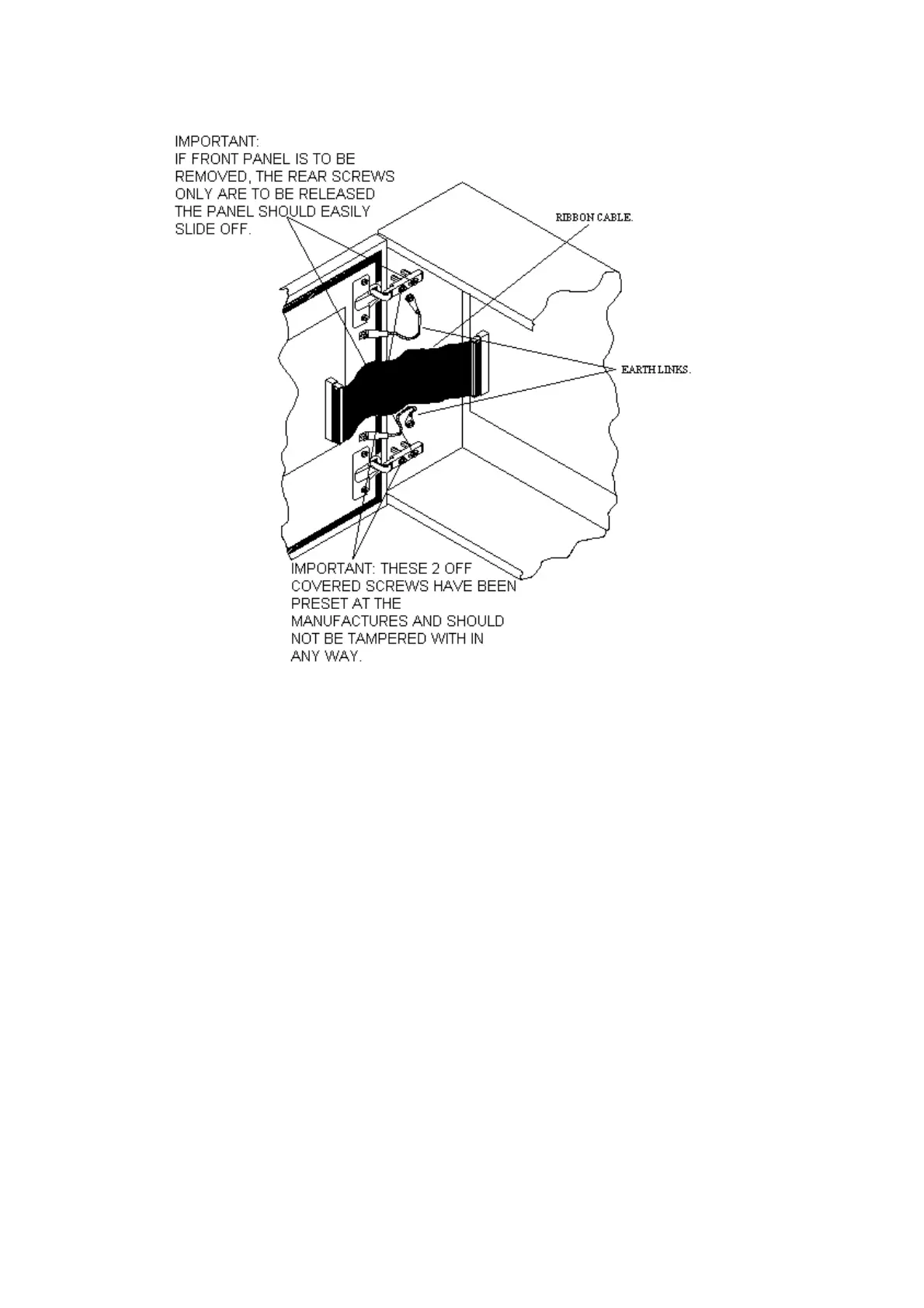

Figure.1

5.2.2. Remove the Internal Back Plate. To achieve this, first release the aerial leads by

disconnecting them from the PCB, then release the backplate by undoing the 5

securing nuts and pulling straight from the Back Box (see Figure.2). Ensure that the

Back Plate is suitably stored and that anti-static precautions are observed.
