SYS5INST ISS.3 2000
7
5.4. Radio Sounder
5.4.1. Ensure that all sounders are sited in accordance with the survey and design
details.

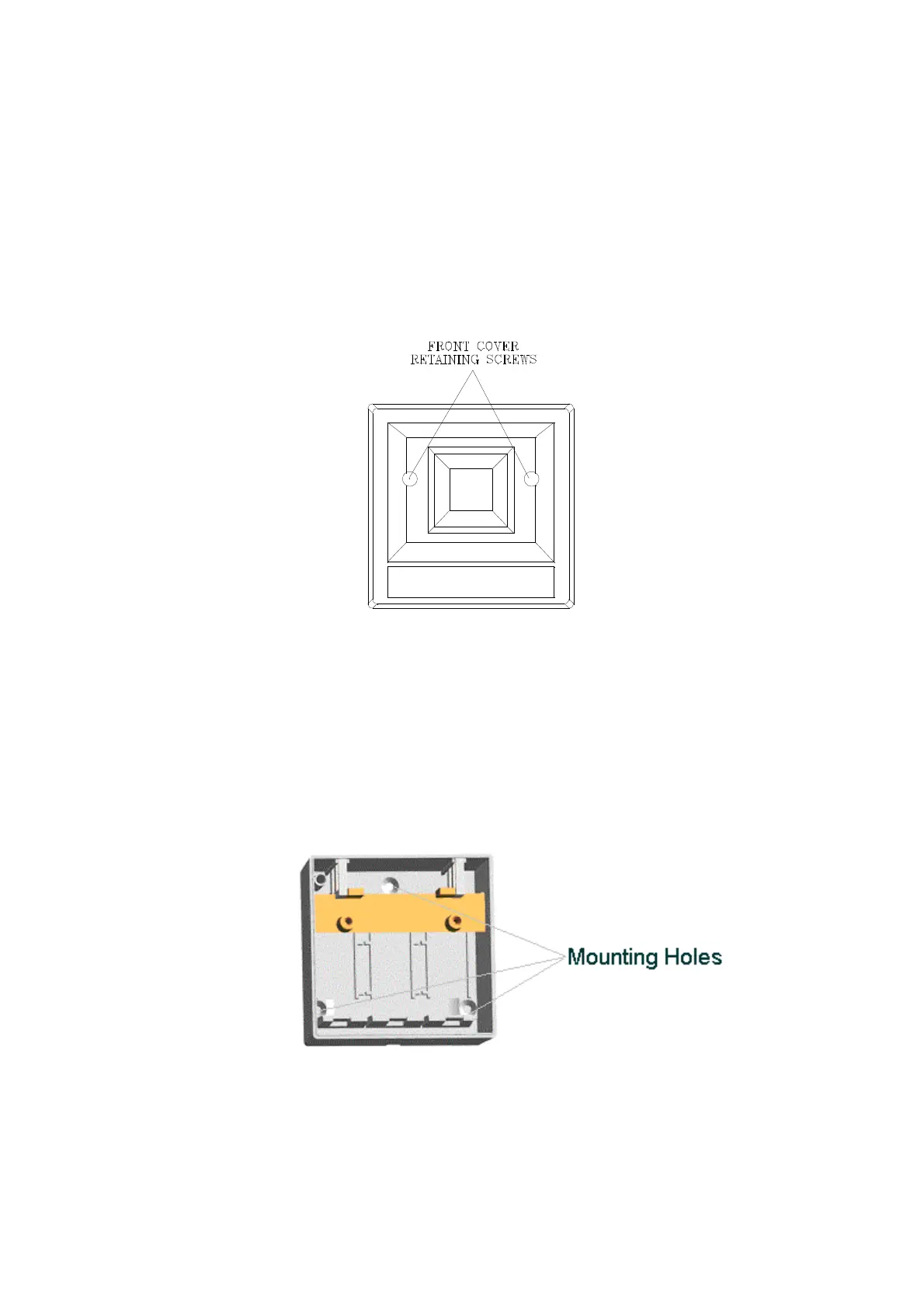

5.4.2. Remove the two assembly screws from the front of the Sounder. This allows the
main Transmitter/Battery section to be separated from the Back box (see figure 3).
Figure 3
5.4.3. Affix the back box to the wall using no.8 countersunk screws with suitable
fixings. Ensure that the Sounder orientation is correct and that countersunk head
screws are used so as to prevent the possibility of damaging the internal components.
Figure 4
