ASSEMBLY INSTRUCTIONS EC18010
STEP 6: CONNECT THE SCREENS
STEP 6.1

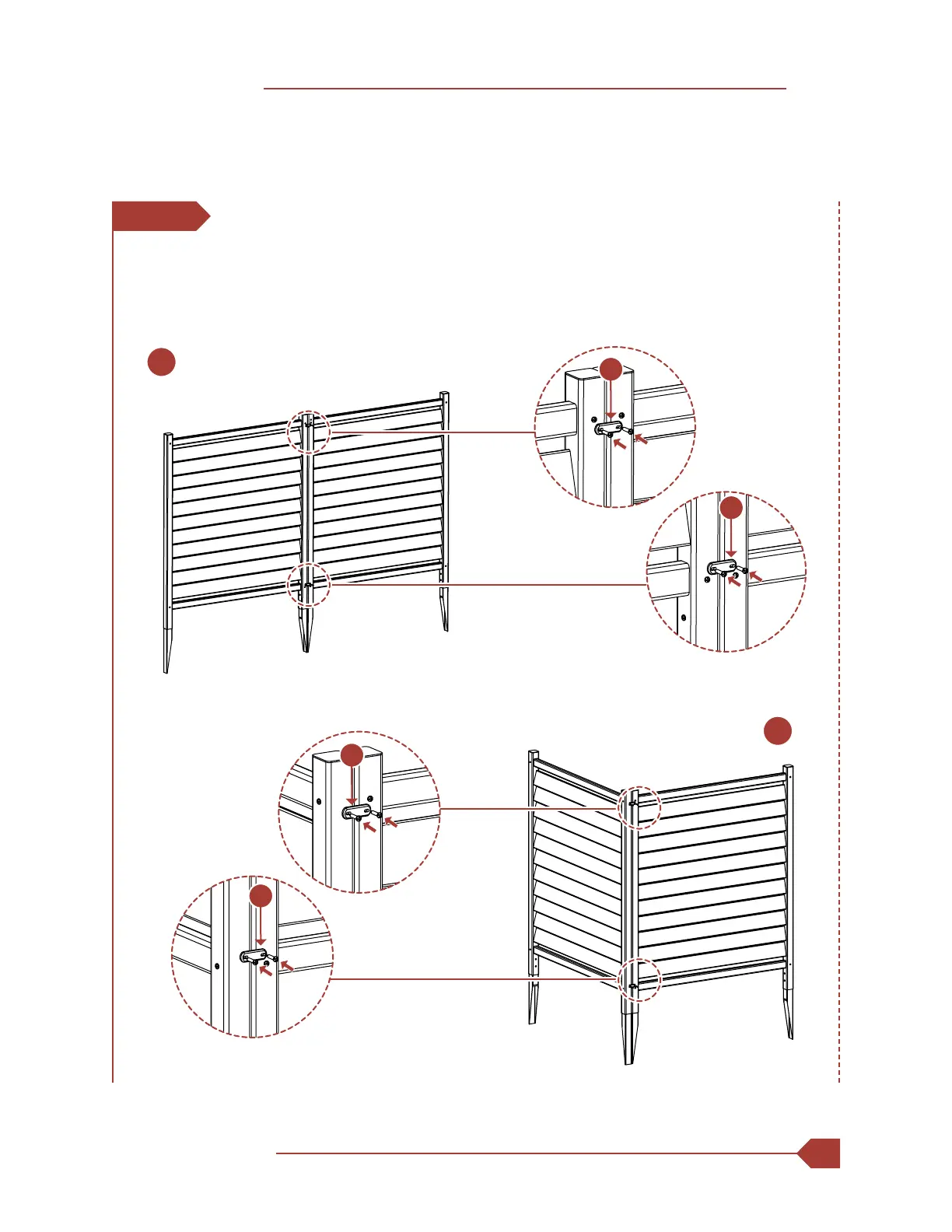

1. Straight Line Application: Connect the screens as shown below using Joiner Clips (F) and
¾" self-drilling stainless steel screws.
2. Corner Application: Connect the screens as shown below using Joiner Clips (F) and ¾"
self-drilling stainless steel screws.
2
1
F
F
F
F
