This document provides assembly instructions for the Fresno Screen Kit (2 PACK), a decorative and functional outdoor privacy screen manufactured by ENCLO. The kit is available in two color options: EC18014 (Cedar Color) and EC18015 (Charcoal Color).

Function Description

The Fresno Screen Kit is designed to "Hide It With Style," offering a solution for enhancing privacy and aesthetics in outdoor spaces. It consists of two panels that can be installed individually or connected to form a corner or straight line application. The screen is intended for ground installation, providing a semi-permanent structure to define areas, conceal unsightly objects, or create a decorative backdrop.

Important Technical Specifications

Product Dimensions (per panel):
- Width: 63.3 inches
- Height: 48.0 inches (above ground) + 11.1 inches (below ground for posts) = 59.1 inches total post length.
- Depth (slats): 0.9 inches
- Post dimensions: 4.0 inches (width at base) x 4.6 inches (depth at base).
Components (per 2-panel kit):
- A. Thin Slat: 10 pieces, 1/4" x 1 1/4" x 62"
- B. Square Slat: 10 pieces, 5/8" x 5/8" x 62"
- C. Wide Slat: 12 pieces, 3/8" x 2 7/8" x 62"
- D. Middle Post: 2 pieces, 5/8" x 1" x 52 1/2"
- E. End Post: 4 pieces, 7/8" x 1 1/2" x 59"
- F. Top Rail: 2 pieces, 1 1/2" x 1 1/2" x 63 1/4" (with large cut holes on one side only)
- G. Bottom Rail: 2 pieces, 1 1/2" x 1 1/2" x 63 1/4"
- H. Rail End Cap: 8 pieces (4 installed, 4 loose)
- I. Joiner Clip: 4 pieces
- J. 3/4" Self-Drilling Steel Screws: 32 pieces
Assembly Time: Approximately 60 minutes for 2 panels.
Recommended Assembly Area: Approximately 5' x 8' for unobstructed assembly.

Usage Features

Assembly Process:
- Step 1: Inspect Parts: Check inside larger pieces for other packed materials.
- Step 2: Lay Out Materials: Organize all components as listed above.

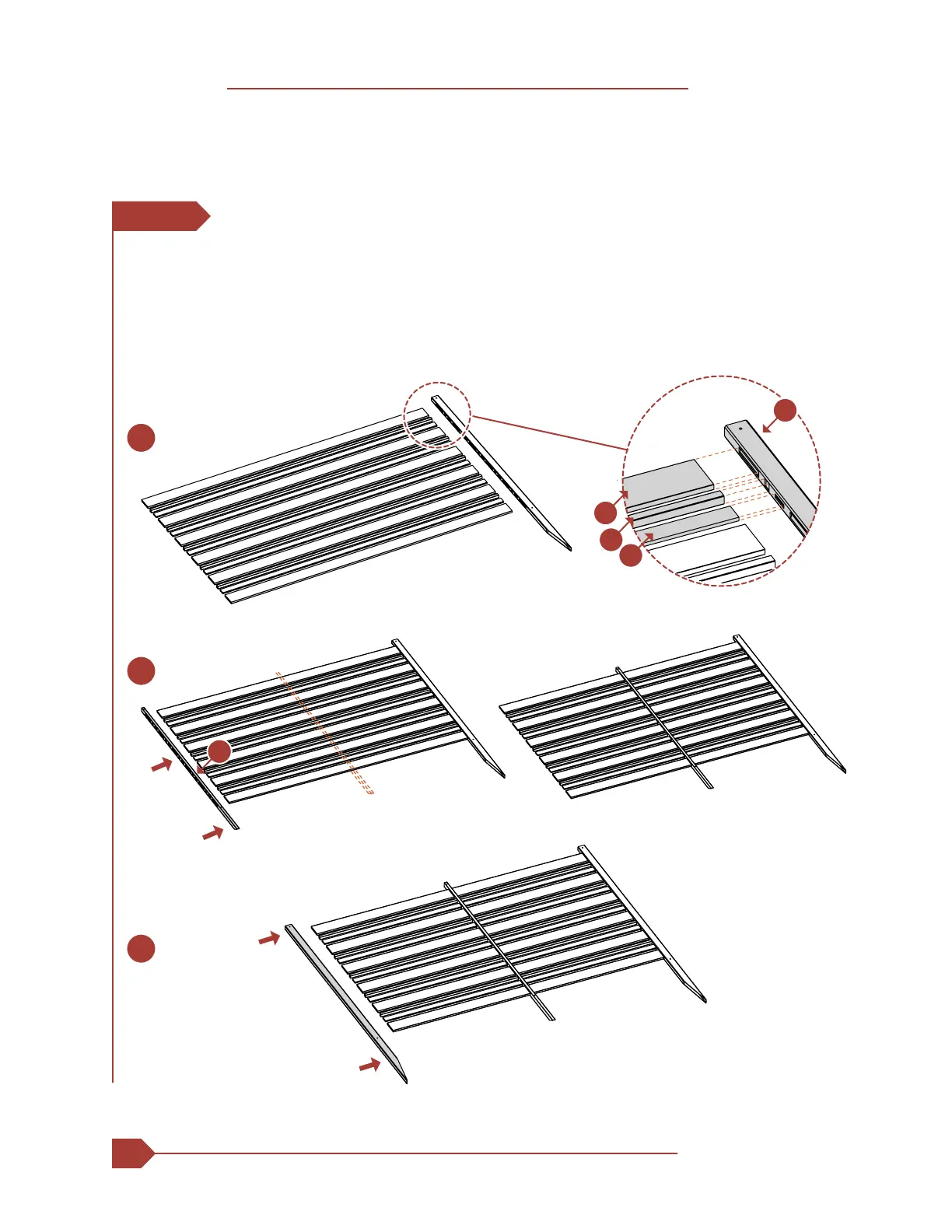

- Step 3: Assemble First Panel:
  - Slide slats (Wide, Square, Thin) into the routed holes of an End Post.
  - Slide the Middle Post over the slats, positioning it in the middle.
  - Slide a second End Post over the slats, ensuring all slats are pushed tightly against the back wall of the posts.
  - Slide the Bottom Rail over the post bottoms, aligning pre-drilled holes. Secure with three 3/4" self-drilling steel screws.
  - Slide the Top Rail over the post tops, aligning pre-drilled holes. Secure with three 3/4" self-drilling steel screws.
  - Turn the panel over and drive six additional 3/4" self-drilling steel screws through the pre-drilled holes in the top and bottom rails.
  - Insert two Rail End Caps into the ends of the rails.
- Step 4: Assemble Second Panel: Repeat Steps 2-3 for the second panel.
Installation in the Ground:
- Standard Installation (Step 5.1): Move the screen to its final location and attempt to push it into the ground, ensuring it is level. Two people are highly recommended for this step.
- Installation in Hard Ground (Step 5.2): If the panel cannot be pushed, loosen the top 6" of ground with a claw hammer, add water to the loosened soil, and gently hammer each post into the ground using a block of wood to protect the post.
- Optional for Hard Ground / Multiple Panels (Step 5.3): For very hard ground or multiple installations, use a 1 1/2" diameter auger bit (e.g., for planting tulips) to drill 12" to 16" deep holes. Fill the holes with water, then push the panel posts into the holes.
Connecting the Panels (Step 6.1):
- Corner Application: Install Joiner Clips (I) to connect panels at a corner.
- Straight Line Application: Install Joiner Clips (I) to connect panels in a straight line.
Customer Support:
- Missing/Damaged Parts: Visit parts.nychbrands.com or contact support@encloscreens.com or call 704-892-5222 / 877-234-6196. Customer service agents are available weekdays from 9 am-5 pm EST. Provide the item number (EC18014/EC18015) and specific part name (from page 4), and the batch lot number (stamped on the end of the box).
- Assembly Help: Call 704-892-5222 / 877-234-6196 for assistance.
- Returns: Contact the original company of purchase.

Maintenance Features

The manual emphasizes placing components on a non-abrasive surface during assembly to avoid scratching, suggesting a focus on preserving the product's finish.
No specific long-term maintenance instructions are provided within the manual, but the use of self-drilling steel screws suggests a durable construction. The product is designed for outdoor use, implying resistance to typical weather conditions.

ENCLO EC18014 - Page 6
