HARDWARE INSTALLATION
Front Panel

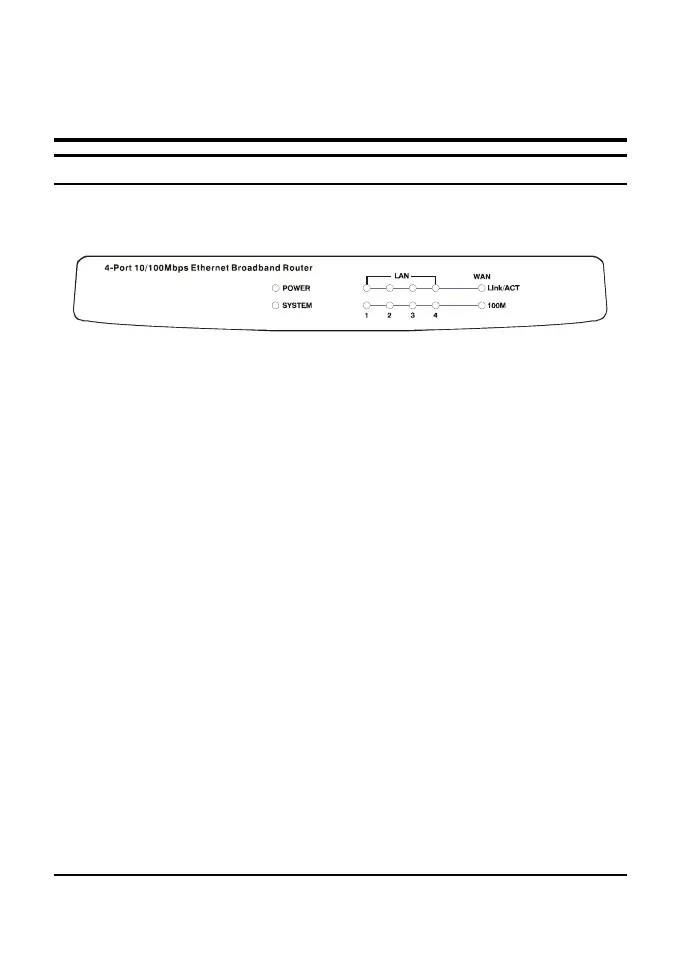

The figure below shows the front panel of the Broadband Router.
Front Panel
POWER
This indicator lights green while the device is receiving power, otherwise,
it is off.
SYSTEM
This indicator blinks green means the Internet Broadband Router is
working successful. Otherwise, this indicator always on or off means the
function of the Internet Broadband Router is fail.
WAN (Link/ACT)
This indicator lights green when the WAN port is connected to an
xDSL/Cable modem successfully.
This indicator blinks green while the WAN port is transmitting or
receiving data on the xDSL/Cable modem.
LAN (Link/ACT)
From port 1 to port 4 indicator lights green when the LAN port is
connected to a 100Mbps Fast Ethernet station, if the indicator blinks green
while transmitting or receiving data on the 100Mbps Fast Ethernet or
10Mbps Ethernet network.
7
