Endless Pools FASTLANE PRO - Gunite Pool with Vinyl Liner Installation

Fastlane
®
Pro Swim Unit Installation
After the concrete has cured remove the sacricial 3/8” (9,5mm) washers and bolts and install the pool
liner. Before beginning the liner installation, be sure to note the orientation of the star thru-wall holes at the
12, 3, 6, and 9 (clock positions) as they will be hidden once the liner is installed. After the liner is installed,
add water to the pool to weigh the liner down pulling it tight. When the liner is tight, cut the holes for each
thru-wall tting and threaded rod hole using a sharp utility knife. Cut the holes as small as possible for the
threaded rods (Fig 4.13).

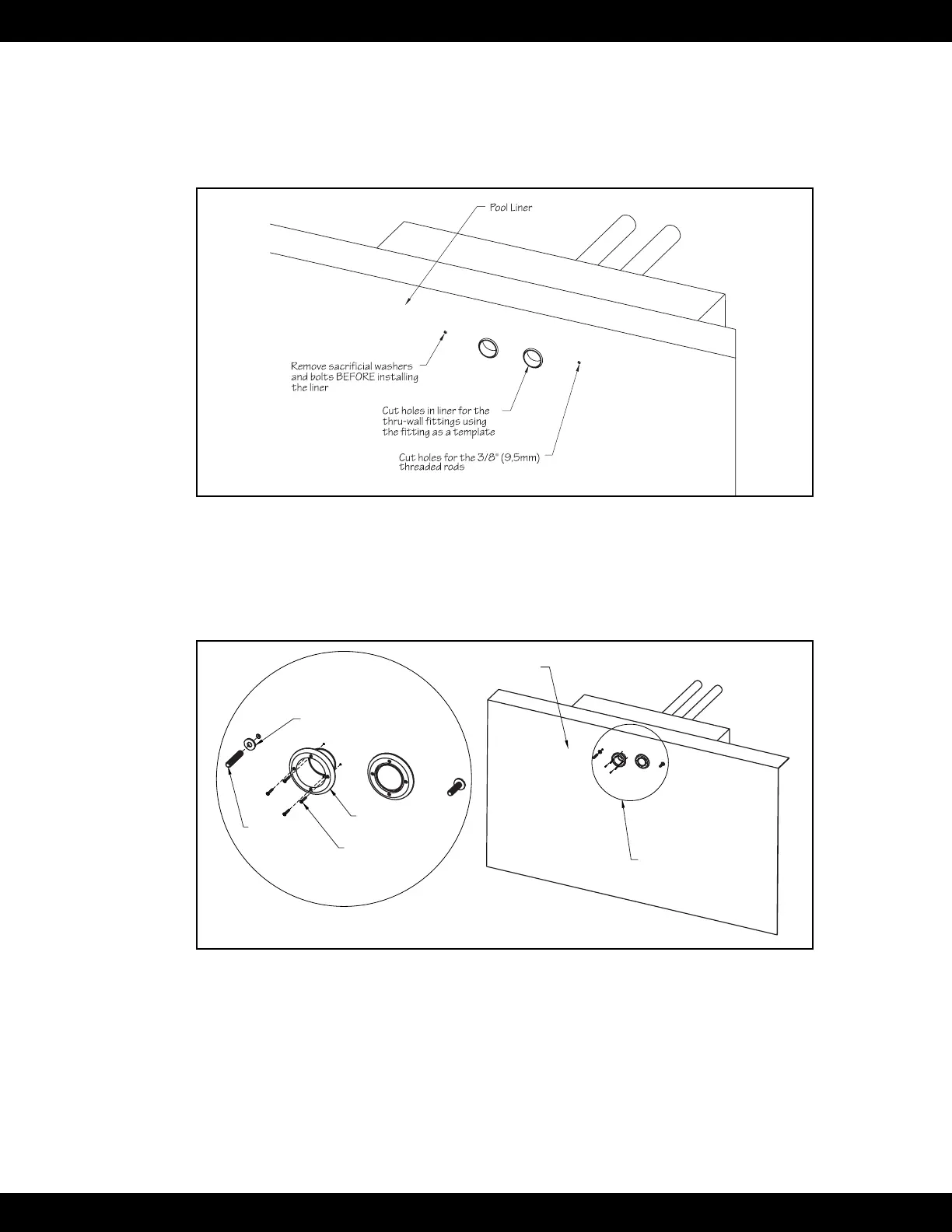

Fig. 4.13
Using a scratch awl, poke the holes out in each star thru-wall tting (holes located in 12, 3, 6, 9 clock
positions) and install the thru-wall faceplates using the screws provided. Tighten the screws with a hand
screwdriver to avoid cracking the faceplates. Apply RTV or a similar caulk to the threaded stud and rubber
washer and thread each stud into the 3/8" (9,5mm) holes in the liner/pool wall making sure the rubber
washer is ush against pool liner. (Fig 4.14).
Pool Liner
Threaded Stud &
Thru-Wall Faceplates
(See Detail A)
Thru-Wall
Faceplate
Faceplate
Screw
Rubber Washer
Threaded
Stud
DETAIL A
Fig. 4.14
17
