Section 7 INSTALLATION OF YOUR WALL MOUNT FASTLANE PRO
Fill the pool up to operating level, which should be approximately 1-1/2" (38mm) below the mounting rods.
Apply Teon sealant to the threads of each 1-1/2" (38mm) MPT x 1" (25mm) FPT bushing reducer and
thread them into the thru-wall ttings. Then apply Teon thread sealant to the threads of the liquid tight
ttings and thread them into the bushing reducers (Fig 7.1).

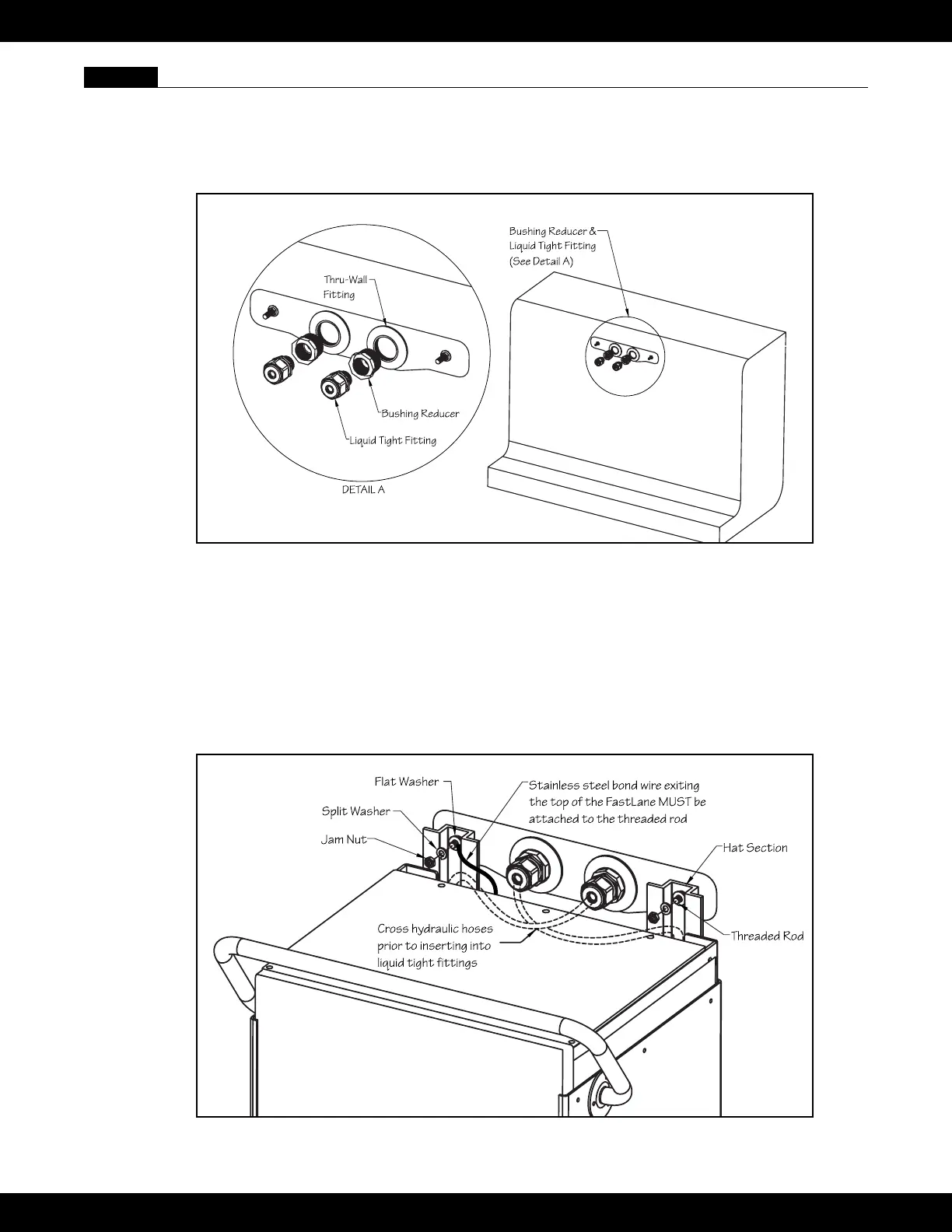

Fig. 7.1
Using two people, carefully lower the Fastlane Pro into the pool. Align the holes at the top of the protective
hat sections with the threaded mounting rods and rest the Fastlane Pro into place. The Fastlane Pro will
hang from the mounting rods. Place a 3/8” (9,5mm) at washer onto each mounting rod making sure it’s
ush against the hat channel. Secure the stainless steel bond wire that exits the top of the Fastlane Pro
to the threaded rod. Place a 3/8” (9,5mm) lock washer and jam nut onto each threaded rod to secure the
Fastlane Pro (Fig 7.2).
Insert the hoses into the conduits. The hoses should cross over themselves prior to inserting into the conduit
(i.e. left hose will be inserted into the right conduit)
Fig. 7.2
