Endless Pools FASTLANE PRO - Electrical Requirements for the UK (50 Hz)

Fastlane
®
Pro Swim Unit Installation Fastlane
®
Pro Swim Unit Installation

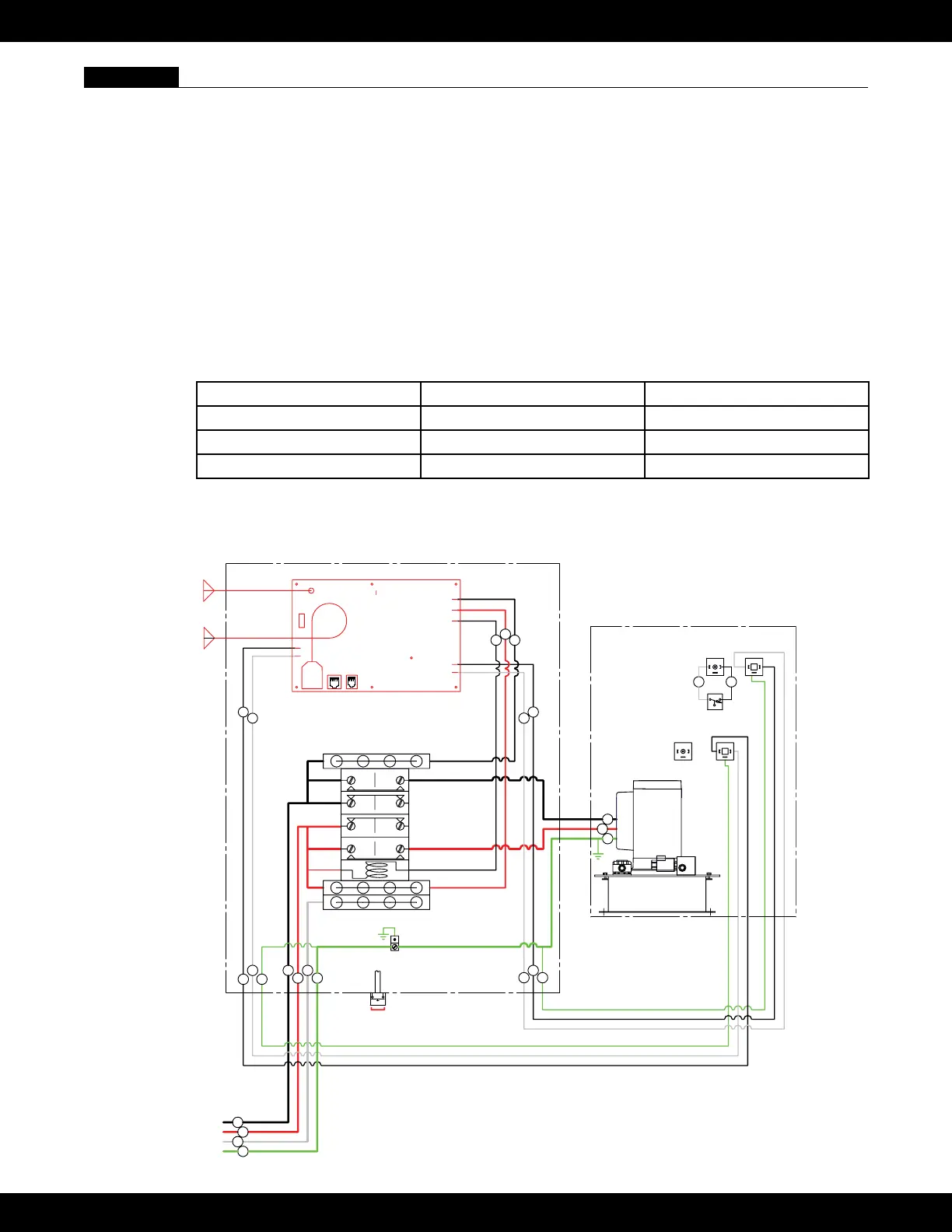

Section 11B ELECTRICAL REQUIREMENTS FOR THE UK (50HZ) (and countries with similar electrical requirements)
The unique design of the Fastlane Pro facilitates sales to UK and international customers. The Fastlane
Pro is shipped in kit form for easy assembly and installation into any new conventional pool following the
detailed instructions provided.
The Fastlane Pro is ETL marked and CE listed.
A Residual Current Device (RCD) is required for this product. An RCD is a device that shuts off an electri-
cal circuit when it detects that electricity is owing along an unintended path. The path could be through a
person or water. The purpose of this device is to reduce the chance of electrical shock. The RCD must have
a rated residual operating current not exceeding 30mA. The MCB (breaker) that operates the Hydraulic
Power Unit must be C-type, D-type, or motor rated. The Hydraulic Power Unit requires one single phase
220v 32amp RCD protected service. All connections should be made by a licensed electrician.
United States wire color-coding is different than international color-coding. The following chart identies
the color-coding used in the United States as it relates to the wire type. In addition, the wires of the control-
ler have a short, colored sleeve wrapped around them to conform to the international color codes.
Wire Color US Wire Type (60Hz) Int. Wire Type (50Hz)
Black with Brown Sleeve Hot or Live (120v) Hot or Live (220v)
Red with Blue Sleeve Hot or Live (120v) Neutral
Green with Green/Yellow Sleeve Ground Earth
Should you have any questions, please call the Customer Service Department at 800-910-2714 (US), 0800-
520-0196 (UK) or 610-497-4538 (Direct), or email us at poolhelp@endlesspools.com.
Line 1
Neutral
Spare
Ground
Single
Phase
Input
Line 1
Line 2
Ground
Float
Level
Switch
Proportional
Valve
HYDRAULIC POWER UNIT
Hydraulic Power
Unit (HPU)
W
B
EP3 CONTROLLER
WIFI
DISPLAY
KEYPAD
LEARN
ANT1
LINE 1 IN
OIL SIG +
OIL SIG -
SWITCHED OUT
AUX
SOL -
SOL +
(NEUTRAL) LINE 2 IN
RF
Antenna
Wifi
A
ntenna
2T1
4R2
6R4
8T3
Contactor and
Terminal Blocks
1L1 NO
3R1 NC
7L3 NO
5R3 NC
A2 A1
W
W
W
W
WW
BB
B
B
B
B
B
B
R
R
R
R
G/Y
G/Y
G/Y
G/Y
B
G/Y
LEARN SW
GROUND
