Pro Swim Unit Installation
6.9 Slide the horizontal water-conditioning grill back into its track inside the housing. The horizontal grill is
the wider of the two grills (Fig 6.7).

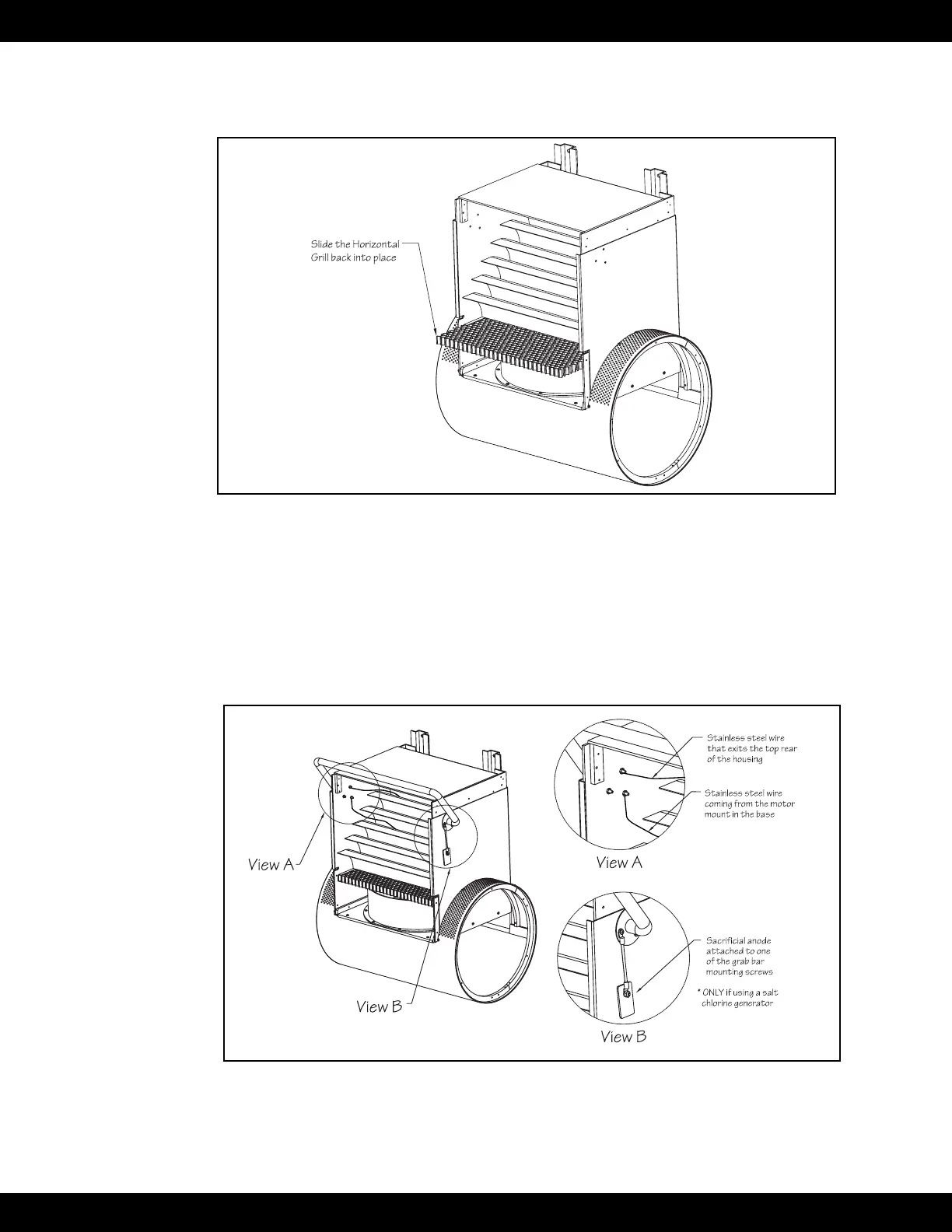

Fig. 6.7
6.10 Install the stainless steel grab bar to the upper housing using the provided stainless steel screws and
lock nuts. Feed the stainless steel wire attached to the motor mount up through the horizontal grill.
Then feed the wire up between two of the turning vanes. Place the stainless steel wire (from the motor
mount in the base) around the bottom screw on the left side before tightening down on the nut. Place
the second stainless steel wire (that exits the top rear of the upper housing) around another screw
before tightening down on the nut. On the opposite side of the grab bar, secure the provided sacricial
anode under one of the grab bar mounting screws (Fig 6.8). The sacricial anode should ONLY be
used in pools equipped with a salt-chlorine generator for sanitation.
Fig. 6.8
