Liquisys M CPM223/253 Installation
Endress+Hauser 9
3Installation
3.1 Quick installation guide
Proceed as follows to completely install the measuring point:
• Install the transmitter (see "Installation instructions" section).
• If the sensor is not yet installed in the measuring point, install it (see Technical
Information of the sensor).
• Connect the sensor to the transmitter as illustrated in the "Electrical connection" section.
• Connect the transmitter as illustrated in the "Electrical connection" section.
• Commission the transmitter as explained in the "Commissioning" section.
3.1.1 Measuring system
A complete measuring systems comprises:
• The transmitter Liquisys M CPM223 or CPM253
• A pH/ORP electrode with or without an integrated temperature sensor
• An immersible, flow or retractable assembly
• A measuring cable(e.g. CPK9)
Options: extension cable, junction box VBA or VBM
a0007781

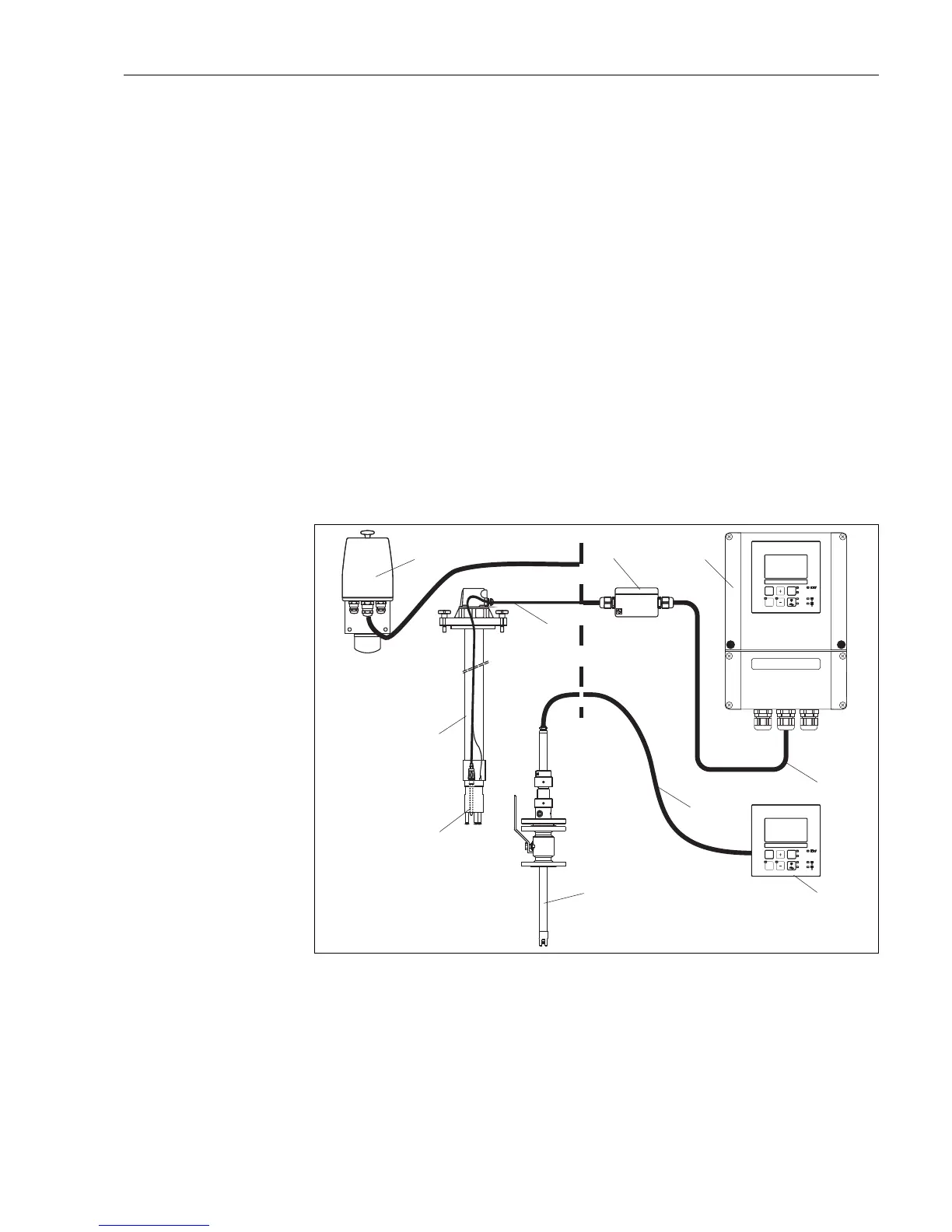

Fig. 1: Complete measuring system Liquisys M CPM223/253
1
2
3
4
5
Flow assembly CPA250
Junction box VBA
Liquisys M CPM253
Measuring cable e.g. CPK9
Liquisys M CPM223
6
7
8
9
Retractable assembly Cleanfit W CPA450
Electrode, e.g Orbisint CPS11
Immersion assembly CPA111
Extension cable
