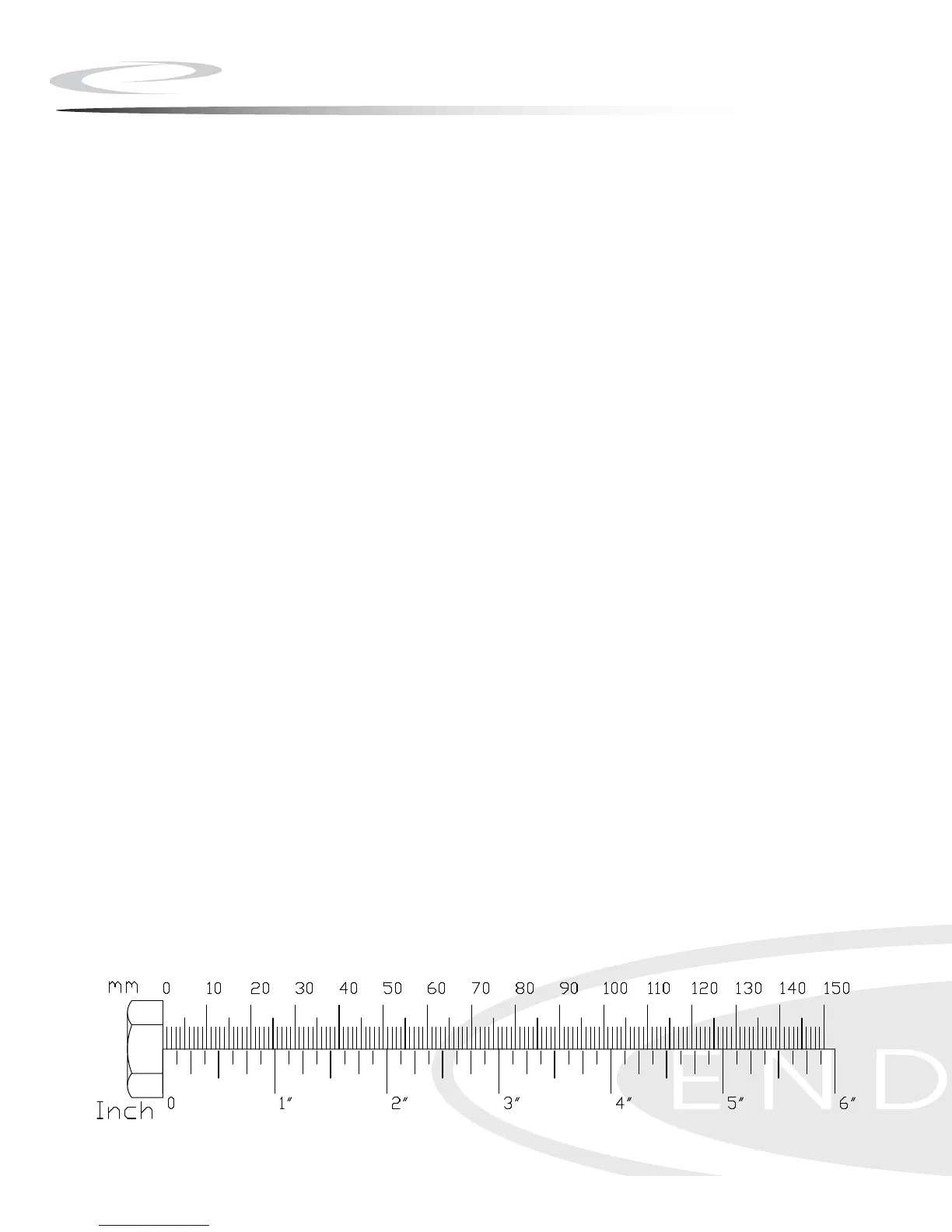

Step 3 Step 3
A. Insert Right Stride Adjustment Frame (S) and Left Stride Adjustment
Frame (J) onto Upright (F).
B. Secure Right Stride Adjustment Frame (S) to Upright (F) using:
One 78 (M10x20 hex head bolt)
One 90 (M10 spring washer)
One 84 (M10 washer)
C. Insert End Cap (122) into Right Stride Adjustment Frame (S).
D. Secure Left Stride Adjustment Frame (J) to Upright (F) using:
One 78 (M10x20 hex head bolt)
One 90 (M10 spring washer)
One 84 (M10 washer)
E. Insert End Cap (122) into Left Stride Adjustment Frame (J).
10
