Be careful to assemble all components
in the sequence they are presented.
Note: Do not fully tighten bolts until the unit is completely assembled.
A. Position all the components from the box onto a clean area.

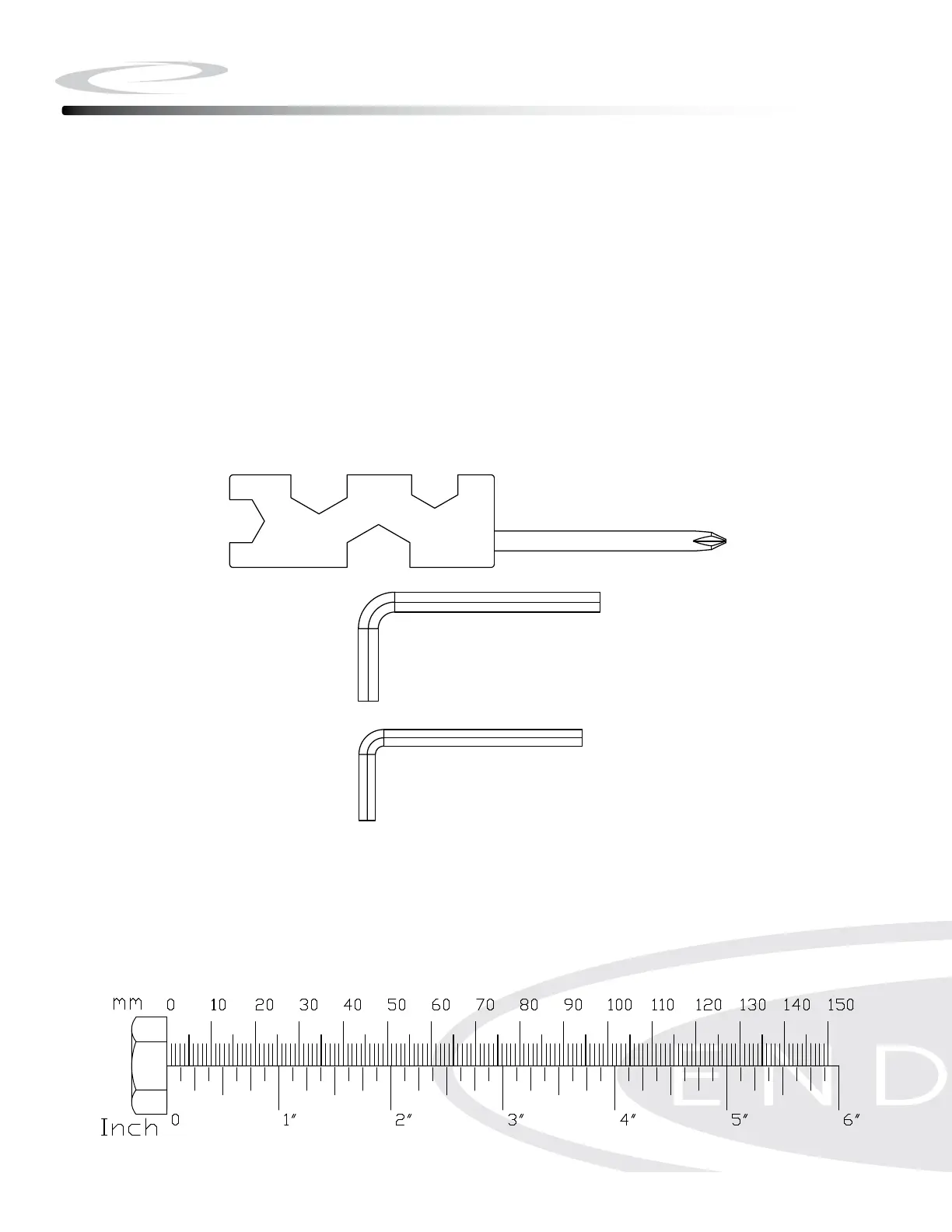

NOTE: The following tools have been included to ease treadmill setup.
Allen Wrench M6 x 70
Allen Wrench M5 x 70
Open Ended Wrench M13/M17
B. Slide Handle Bar (K) into Lower Handle Bar (J) and secure using:
Two 59 (M5x10 phillips head bolt)
Two 67 (M5.5 arc washer)
C. Repeat Part B by installing the remaining Handle Bar (K) and Lower Handle Bar (J).
Step 1
10
