LUBRICATING THE DECK
A well lubricated deck will ensure high performance of your treadmill and reduce the level
of normal wear and tear to important components. This treadmill has been pre-lubed at the
factory. There is no need to apply any lubricant in order to start to use your new treadmill.
However, for optimal performance, the running deck may require periodic lubrication. With
average usage (30 minute workout session at 3-4 mph, 3 times a week, for two people)
lubricate every four to six months. You may adjust the timing of the lubrication based on the
intensity of the treadmill use level.
To check the lubrication level, simply lift the running belt, and put your hand as far into the
center of the belt as you can reach. If your hand shows signs of silicone (some wetness),
then it does not need additional lubrication. If the board or belt feel dry and there is very little
evidence of silicone on your hand, then additional lubrication should be added.
A well lubricated deck will ensure longevity of your treadmill in addition to providing you
optimal performance.
P. 4
© 2006 Sportcraft, Ltd.
1 2 543
2019181716
1514131211
109876
2221 252423
282726
29
9-3-04-060FH17
9-3-04-005FH01 9-3-04-005FH02 9-3-04-032FH049-3-04-032FH03
9-3-04-001FH32
9-3-04-041FH249-3-04-001FH309-3-04-001FH27
9-3-04-020FH169-3-04-001FH149-3-04-001FH13
9-3-04-003FH06
9-3-04-001FH11
9-3-04-032FH059-3-04-001FH099-3-04-001FH079-3-04-001FH06
9-3-04-055FH14
9-3-04-005FH05
9-3-04-032FH07
9-3-04-005FH04
9-3-04-055FH22
9-3-04-001FH05
9-3-04-005FH03
9-3-04-001FH08
9-3-04-005FH06
9-3-04-032FH09
9-3-04-032FH10
PARTS IDENTIFIER
(PRE-INSTALLED)
ON/OFF SWITCH
(1 EA)
MAIN FRAME ASSEMBLY
(1 EA)
CONTROL PANEL
(1 EA)
SIDE RAIL TUBE
(2 EA)
HAND RAIL TUBE
(1 EA)
LATCH
(1 EA)
FRONT WHEEL
(2 EA)
SILICONE
(1 EA)
PLASTIC END CAP FOR
SIDE RAIL TUBE (4 EA)
SAFETY KEY
(1 EA)
5 MM ALLEN KEY
(1 EA)
10 MM WRENCH
(1 EA)
INCLINE ADJUSTER
WITH PADS (2 EA)
FRAME FOOTPAD
(2 EA)
D-SHAPE CASTER FRAME
(1 EA)
6 MM SPRING WASHER
(2 EA)
6 X 55 MM ALLEN KEY
BOLT (2 EA)
10 MM HEX BOLT
(8 EA)
(PRE-INSTALLED)
(PRE-INSTALLED)
(PRE-INSTALLED)
(PRE-INSTALLED)
(PRE-INSTALLED)
(PRE-INSTALLED)
(PRE-INSTALLED)
ALLEN KEY HOLDER
(1 EA)
REAR ROLLER COVER
- LEFT (1 EA)
BOTTOM MOTOR COVER
(1 EA)
(PRE-INSTALLED)
TOP MOTOR COVER
(1 EA)
(PRE-INSTALLED)
6 X 90 MM ALLEN
KEY BOLT (2 EA)
4 X 16 MM TAIL CUT
SCREW BLACK (4 EA)
12A BREAKER
(1 EA)
(PRE-INSTALLED)
10 MM SPRING WASHER
(8 EA)
(PRE-INSTALLED)
REAR ROLLER COVER
- RIGHT (1 EA)
TOOLS REQUIRED FOR ASSEMBLY:
· Phillips and Slotted Head Screwdrivers (or Power Driver) - not included
· Wrench - included
· Allen Key - included
Terminology Key:
- the front = the end with the motor and cover.
- the rear = the end away from the motor.
- the top = the part you walk/run on.
- right/left = right or left as standing on the treadmill.
VERTICAL ARM
- LEFT
VERTICAL ARM
- RIGHT
(PRE-INSTALLED)
(PRE-INSTALLED)
TO LUBRICATE THE DECK:
1. Stop the running belt so that the belt’s seam is located
on top and in the center of the deck.
2. Unplug the treadmill from the electrical outlet.

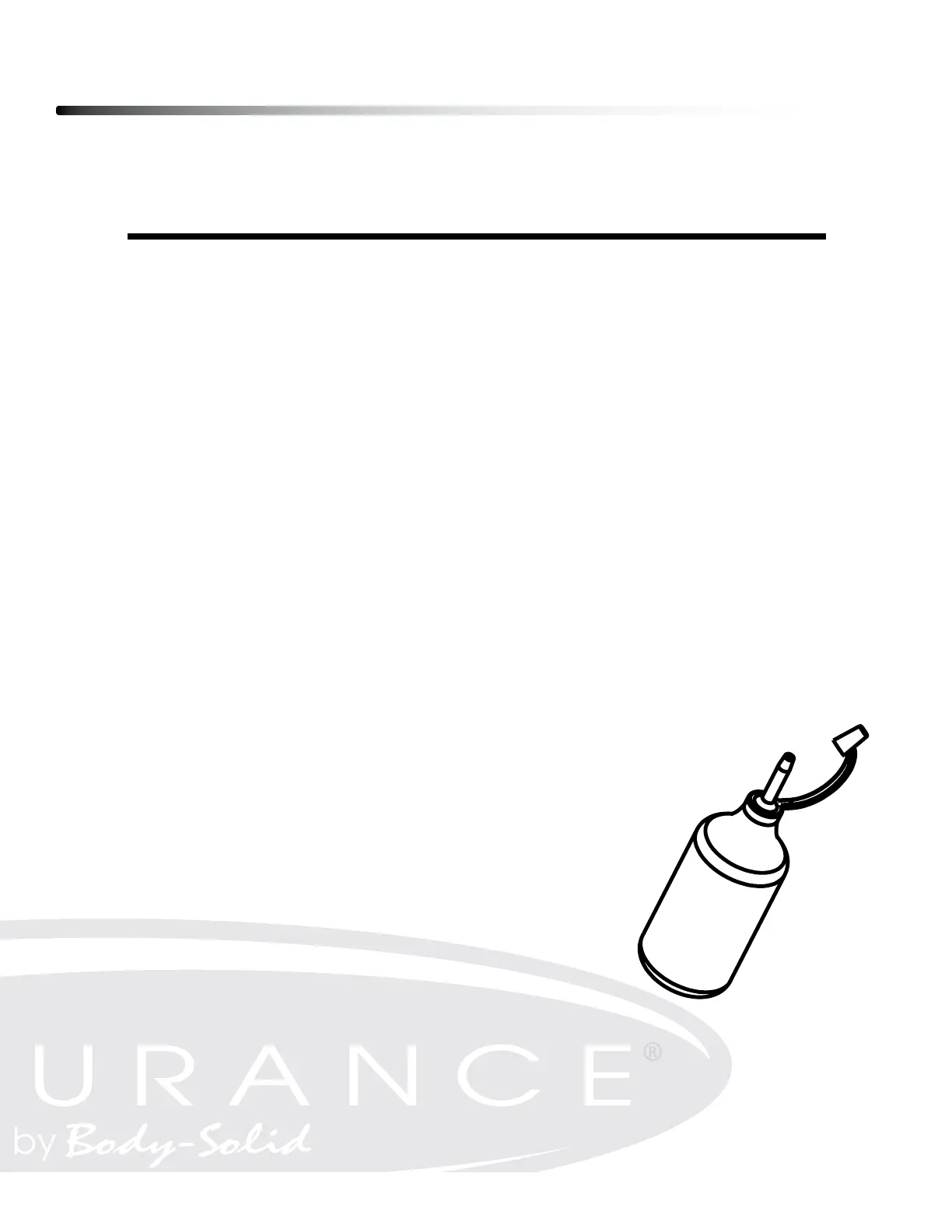

3. Prepare the lubricant by removing the cap.
4. Lift the running belt.
5. Position the lubricant’s nozzle between the belt and the
board.
6. Apply the silicon from the front to the rear of the
treadmill on both the left and right side of the treadmill.
Try to reach as far into the center of the running deck as
possible.
7. The silicone should be applied in drops or in a very thin
stream.
8. Plug the treadmill into the electrical outlet.
9. Spread the silicon by running the treadmill at 1 mph and
gently step on the belt from left to right.
10. Run on the treadmill for a few minutes and allow the
silicon to properly soak into the belt.
Maintenance
31
