DRIVE BELT TENSIONING
Sometimes, after extended use, adjustment of the drive belt may be necessary. To tighten
the drive belt, turn the adjustment bolts clockwise.
Motor Belt adjustment method:
1. Loosen M8 Nuts (71) by turning them counterclockwise.
The position of Drive Motor (40) is now readjustable.
2. Loosen Allen Head Bolt (78) by rotating counterclockwise for ¼ turn and tighten
Allen Head Bolt (52) by rotating clockwise for ¼ turn until the belt does not slip.
3. Retighten M8 Nuts (71).
If you have tensioned the running belt and are still experiencing a slipping sensation, call
your dealer. Only an authorized dealer should perform tensioning of the drive belt.
NOTE: Over tightening of the drive belt will severely shorten the life of the belt and may
cause further damage to other components!
Damage caused by severely overtightening the belt is not covered under warranty.
To reduce the risk of electrical shock, always unplug the treadmill from the electrical
outlet immediately after use and before maintenance!

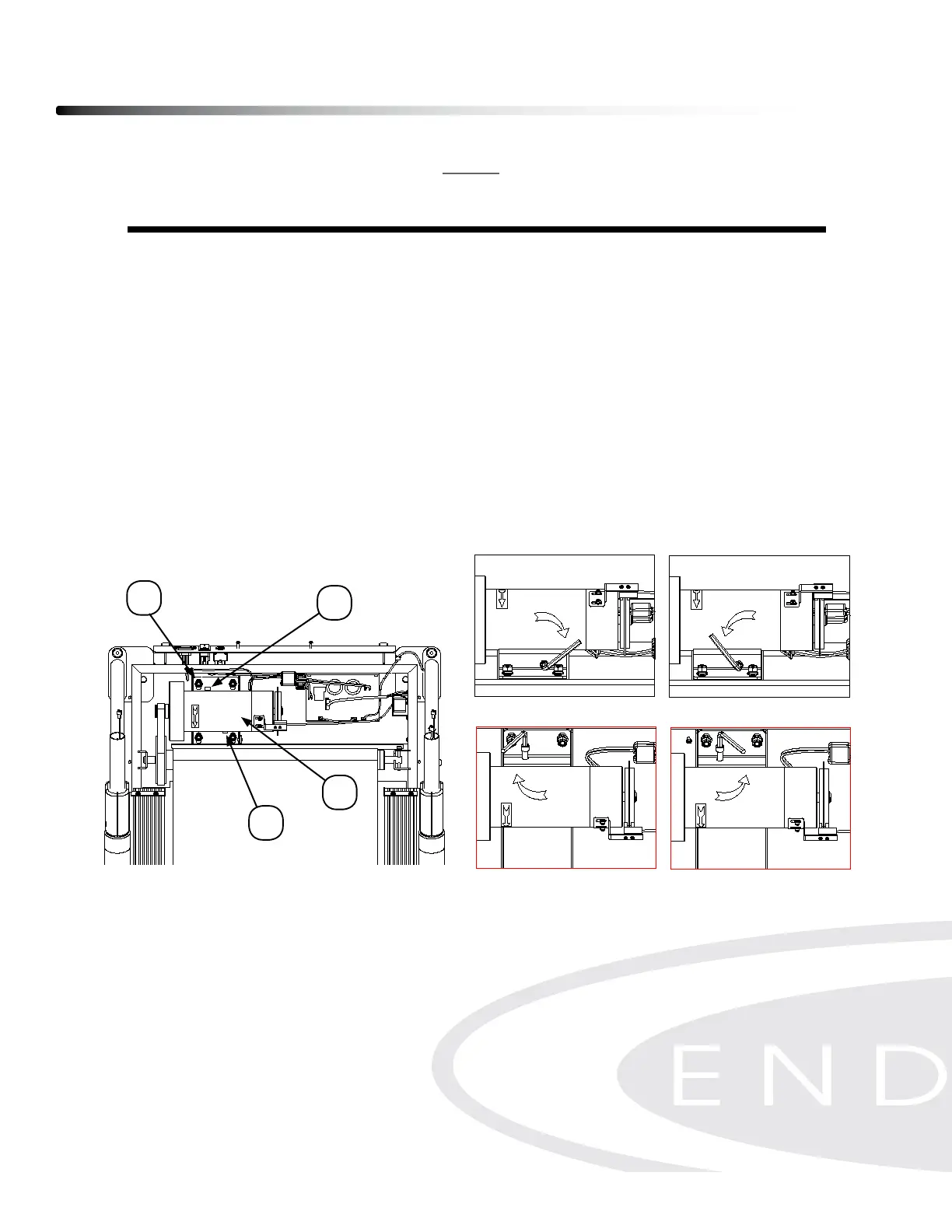

Tighten
Loosen
Tighten
Loosen
52
78
71
40
