Be careful to assemble all components
in the sequence they are presented.
Note: Do not fully tighten bolts until the unit is completely assembled.
A. Bring Console (93) near Right Upright Post (F) and Left Upright Post (G) for
installation.
B. Connect Cable B1 to Cable B2 (88).
Connect Cable C1 to Cable C2 (98).
Connect Cable D1 to Cable D2 (98).
NOTE: Pay attention to not pinch Cable B1, Cable B2 (88), Cable C1,
Cable C2 (98), Cable D1, Cable D2 (98) when securing Right
Upright Post (F) to Mainframe (A).
Assistance may be required.
C. Completely insert Console (93) onto Left Upright Post (G) and Right Upright
Post (F). Secure Console (93) by using:

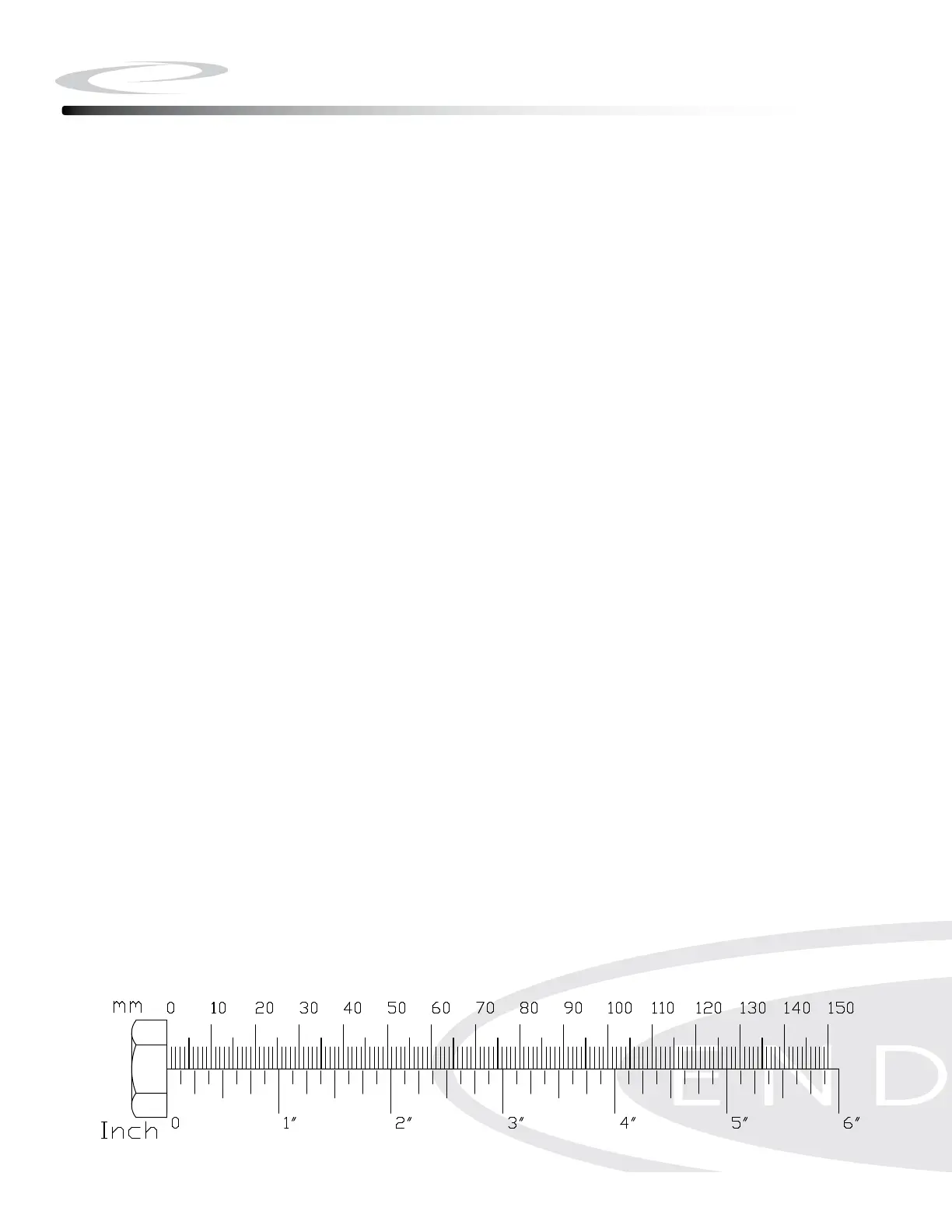

Four 54 (M8x10 allen head bolt)
D. Attach Safety Key (12) onto Console (93).
NOTE: If you experience slippage of the treadmill belt while walking/running on
the treadmill, please stop using the treadmill immediately and follow the
instruction of how to adjust the belt tension on Page 28 & 29.
Step 4
16
