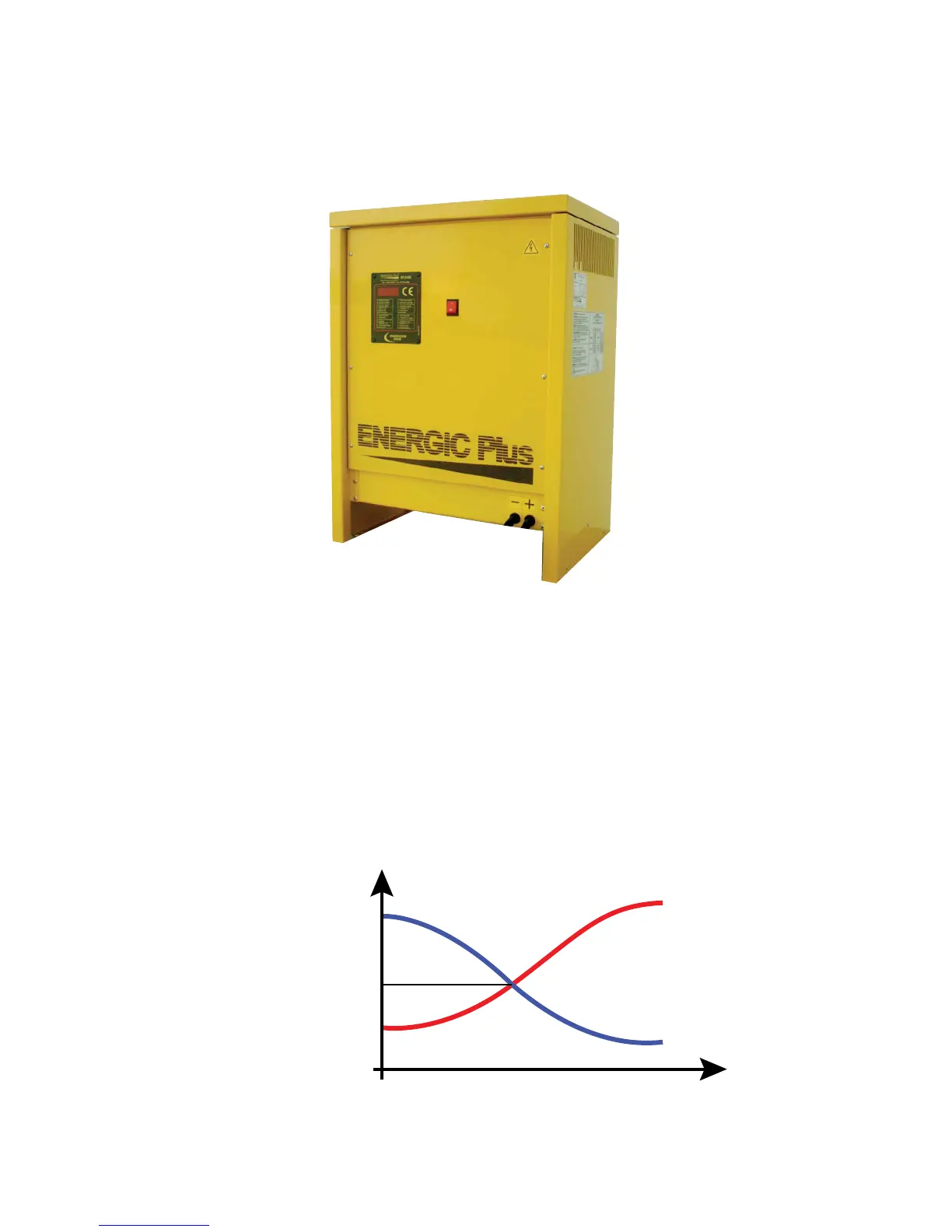

DESCRIPTION OF THE CHARGER
Energic Plus TST-D battery chargers have been designed to charge Pb batteries.
These units convert the AC main supply in a DC output at the correct voltage, in order to
charge the battery cells.
The microprocessor controlled electronic card is used to monitor the state of the charge, and automatically
turn the charger o when the battery is fully charged.
The charge current follows the Wa curve, and the operation is fully automatic.
Current
Voltage
Initial Current
(about 16% of battery capacity)
Voltage = 2.40 V/cell
Current = 50% of Initial current
Voltage = 2.00 V/cell
Voltage
Current
Time
5
